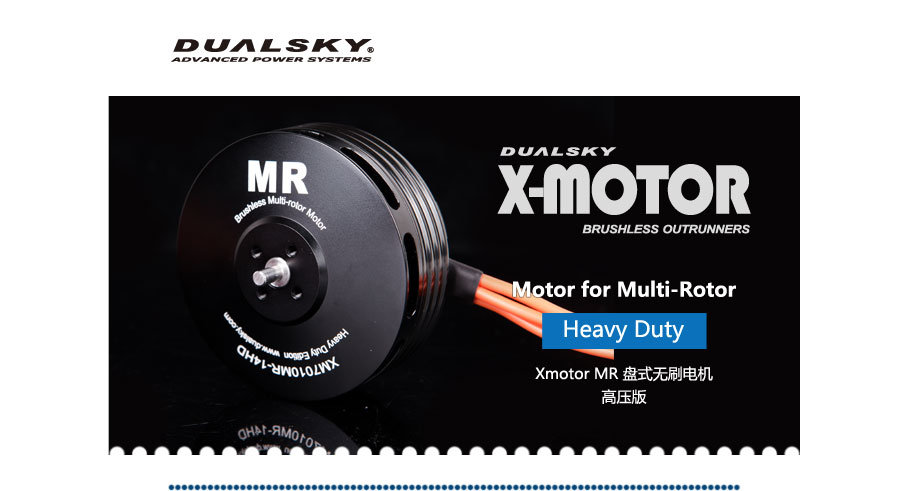

Heavy duty edition for big load multi-copter Upgraded base on MR series motor including 70mm and 90mm Provide single shaft up to 3000w output power High voltage design, working voltage:44.4v(12S lipo) High efficiency, low temperature
Product Description：

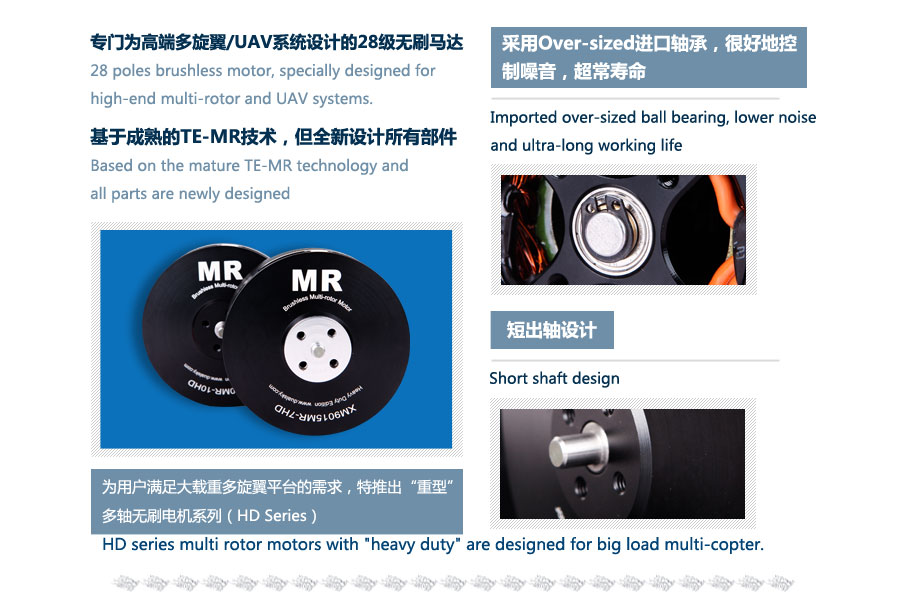

28 poles brushless motor,
specially designed for
high-end multi-rotor and UAV systems.
Based on the mature TE-MR technology and
all parts are newly designed

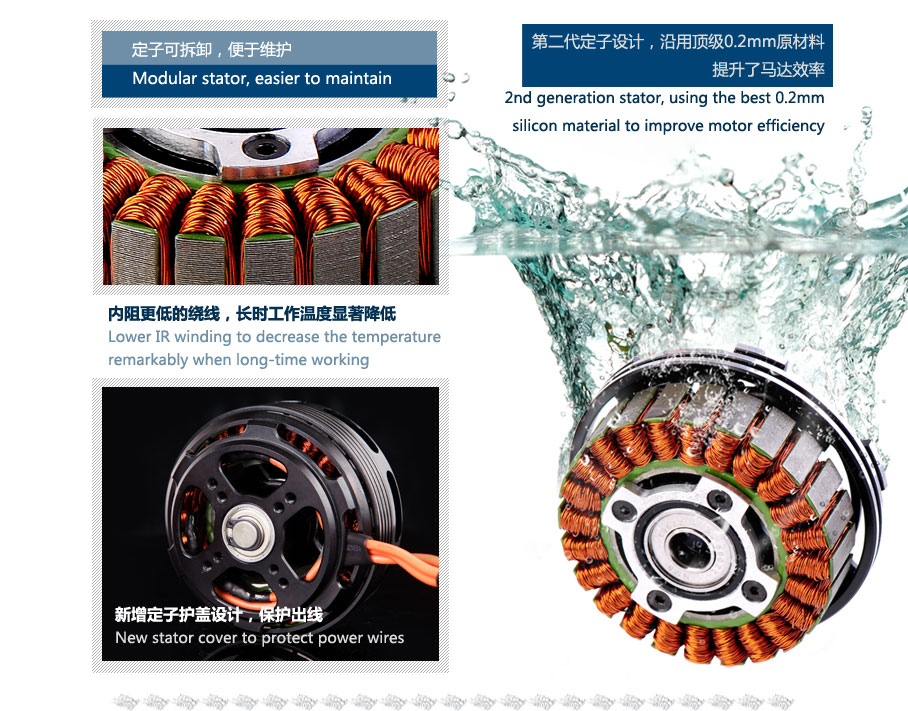

2nd generation stator, using the best
Lower IR winding to decrease the temperature
remarkably when long-time working
detachable
stator ,easier to maintain
Imported over-sized ball
bearing, lower noise
and ultra-long working life
Short shaft design
High-precision rotor,
dynamically balanced on both sides, lowest resonance in RC industry

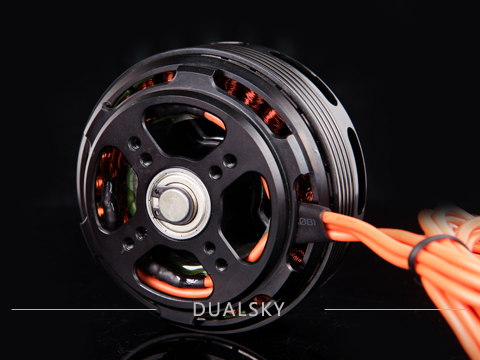

New stator cover to protect power wires
Multiple mounting holes, compatible with DJI
frames

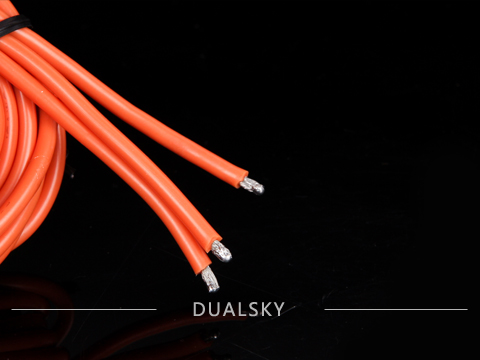

Lengthen silicon power wire, easy to install
Laser-etching model data and factory serial
number

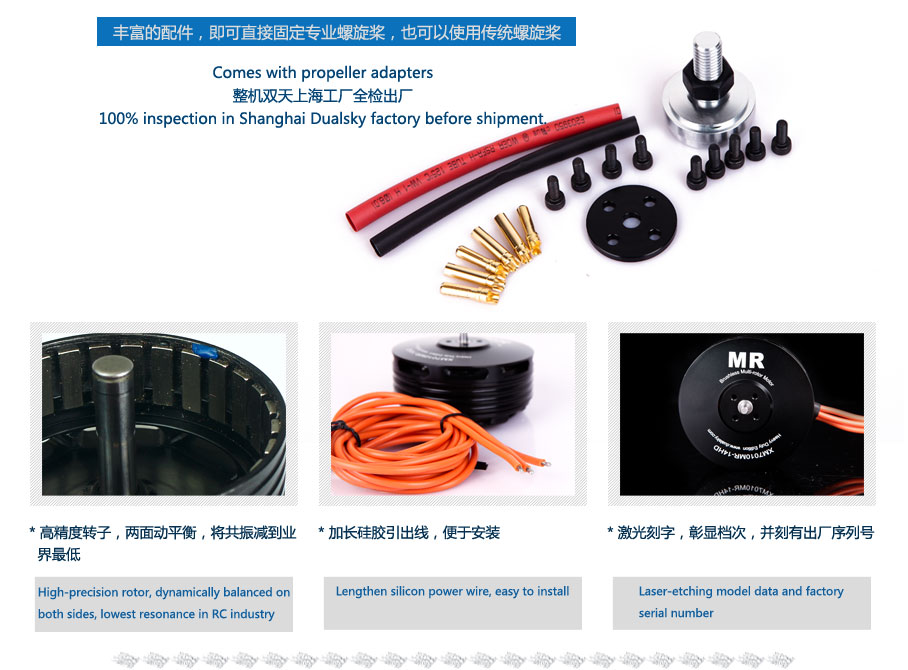

Comes with propeller adapters, can install
traditional and professional CF propellers

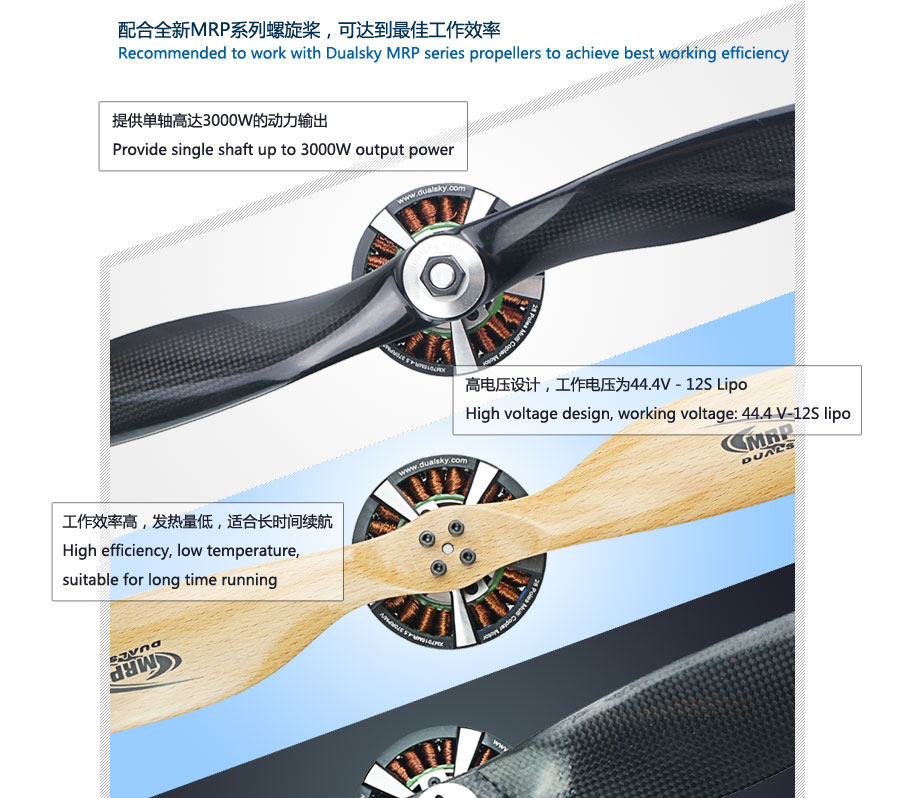

Recommended to work with Dualsky MRP series
propellers to achieve best working efficiency

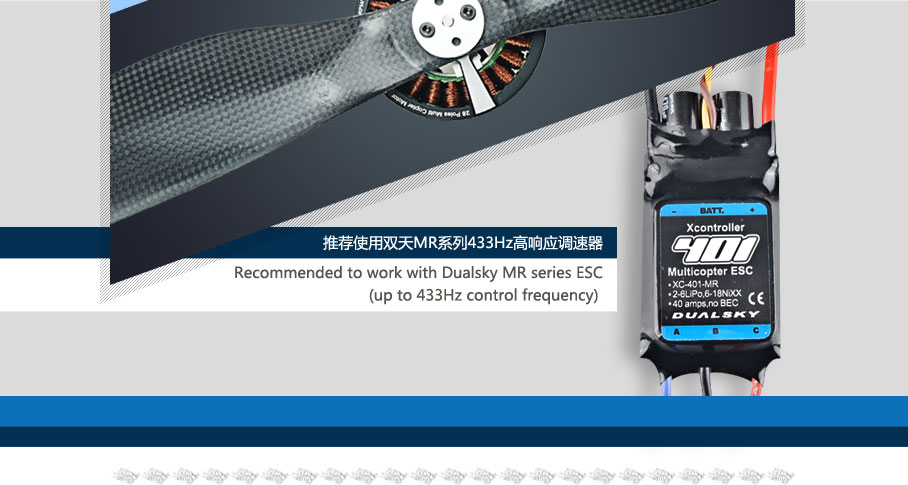

Recommended to work with Dualsky MR series ESC
(up to 433Hz control frequency)
100% inspection in Shanghai Dualsky factory
before shipment.
Add
* HD series multi rotor motors are designed for
big load multi-copter, with "heavy duty".

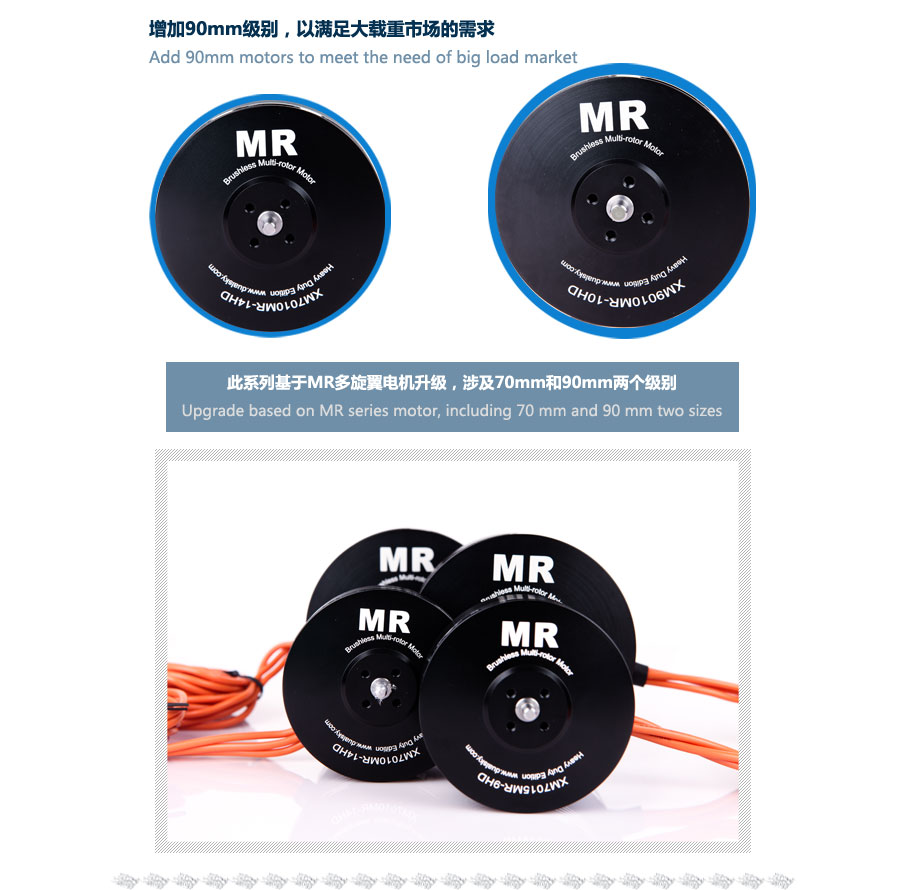

* Upgrade based on MR series
motor, including
* Provide single shaft up to
3000W output power
* High voltage design, working voltage: 44.4 V
12S lipo
* High efficiency, low temperature, suitable for
long time running

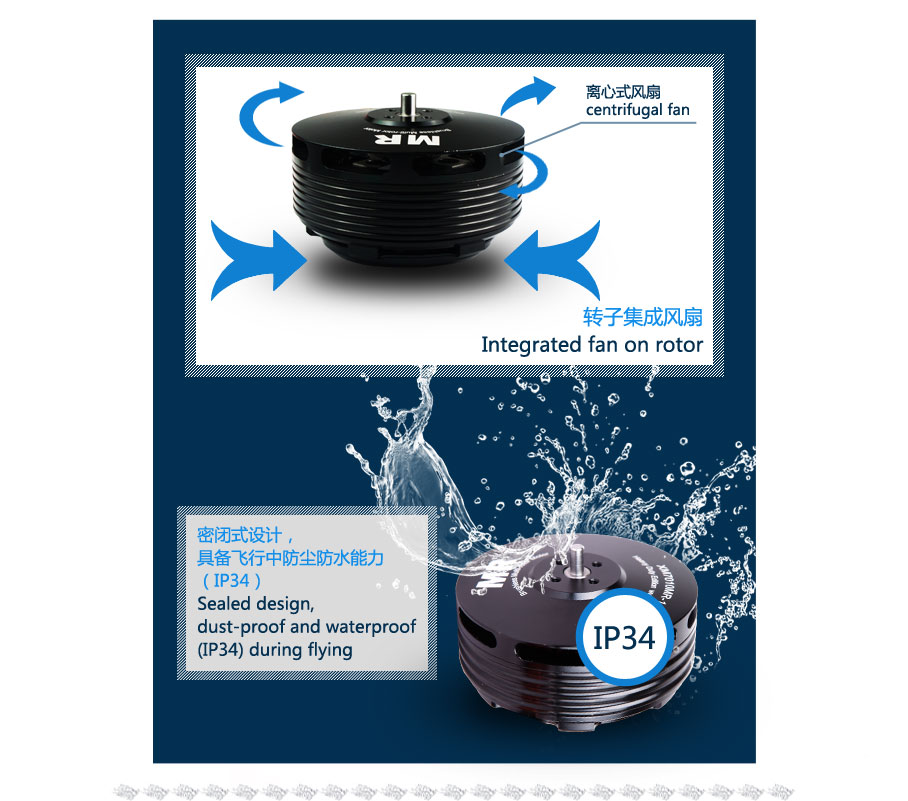

* Integrated fan on rotor
* Sealed design, dust-proof and waterproof
(IP34) during flying

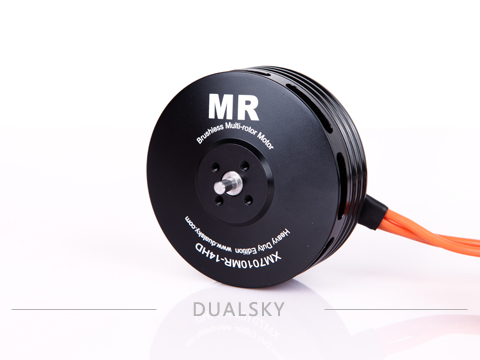

Item Name：Heavy duty motor for Multi-Rotor

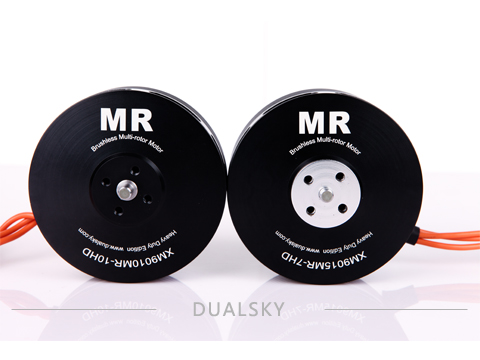

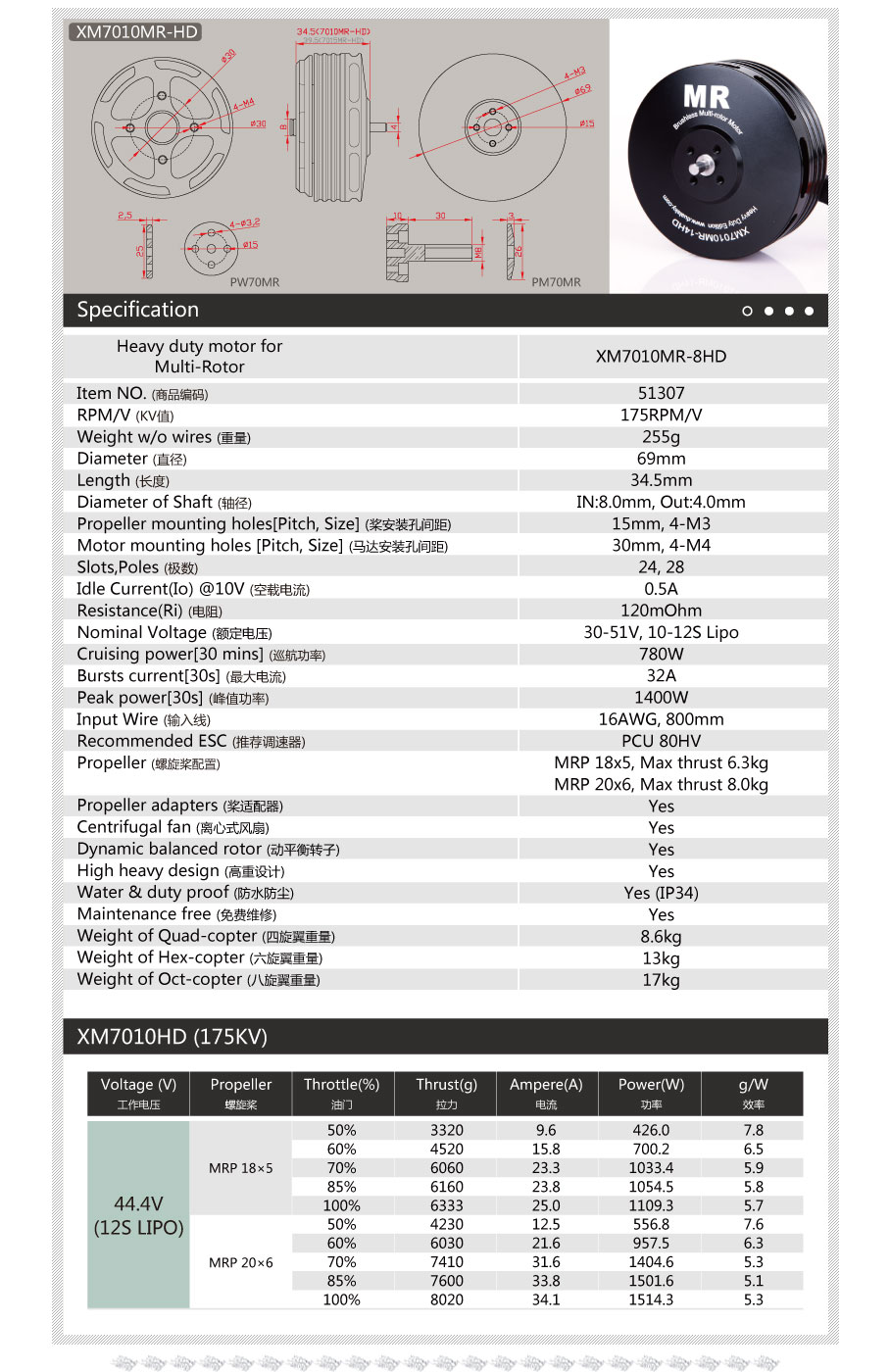

Item No：| NO. 51307 | XM7010MR-8HD | 175 |

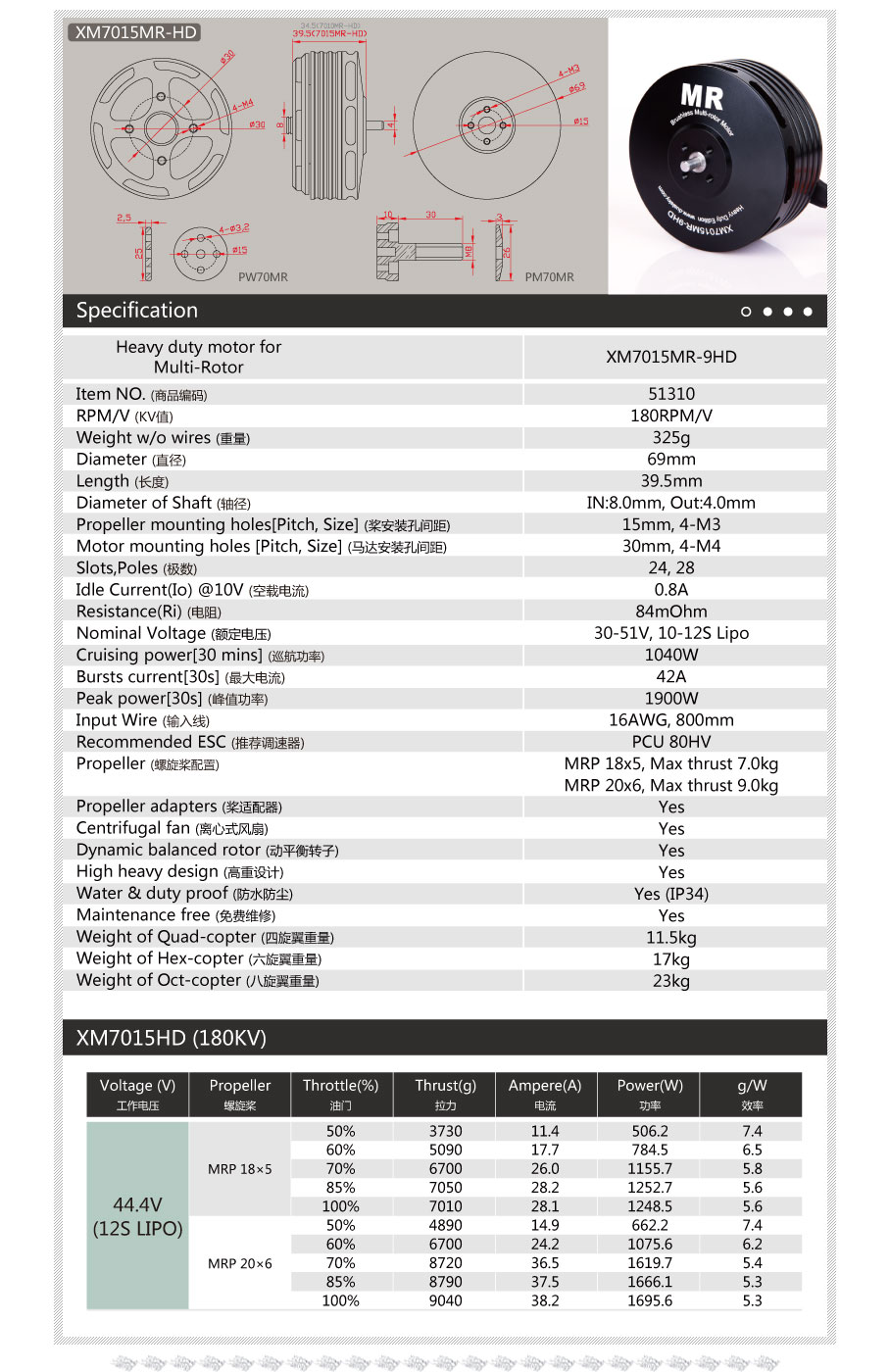

| NO. 51310 | XM7015MR-9HD | 180 |
| NO. 51314 | XM9010MR-6 | 300 |

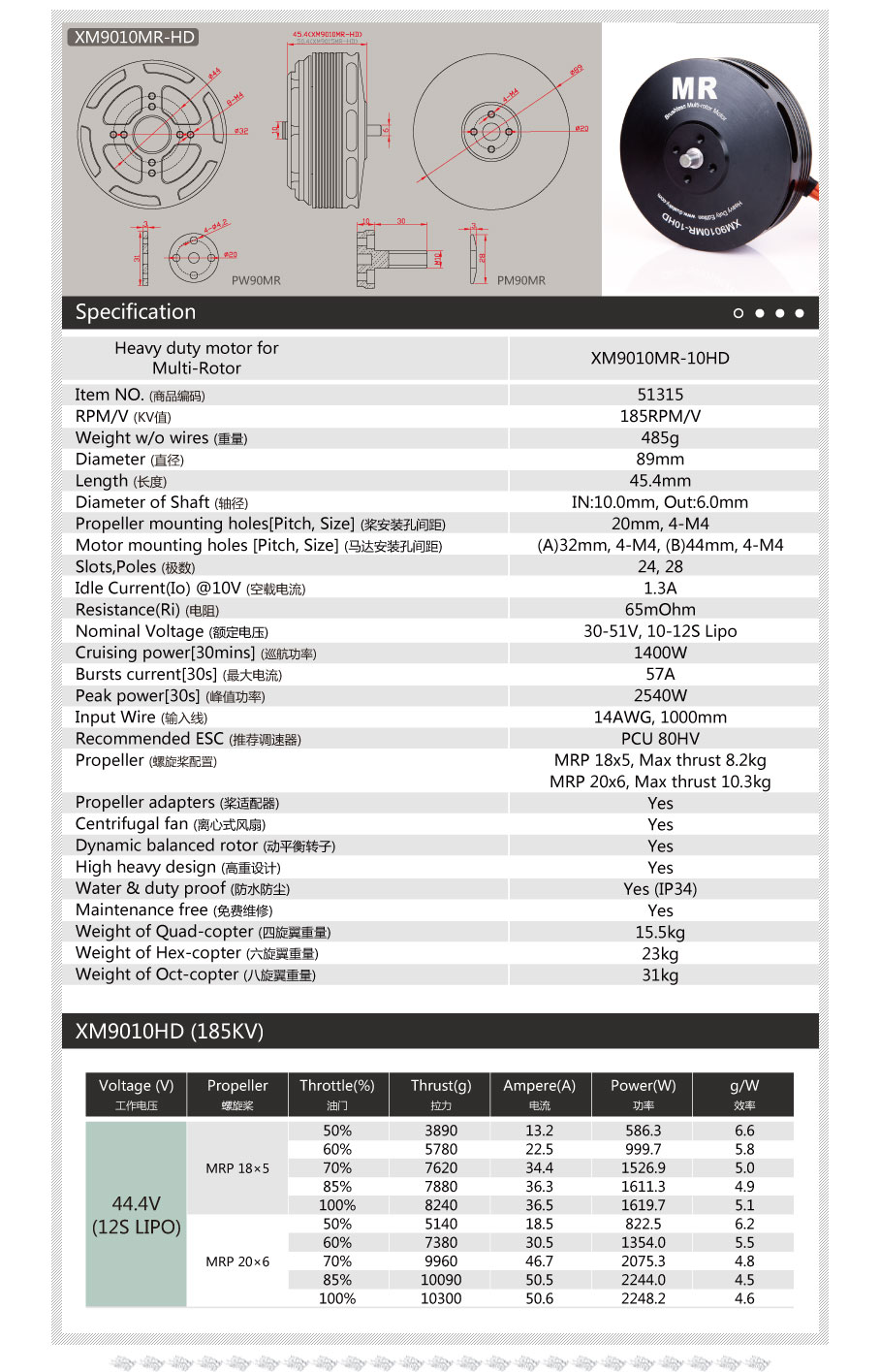

| NO. 51315 | XM9010MR-10HD | 185 |

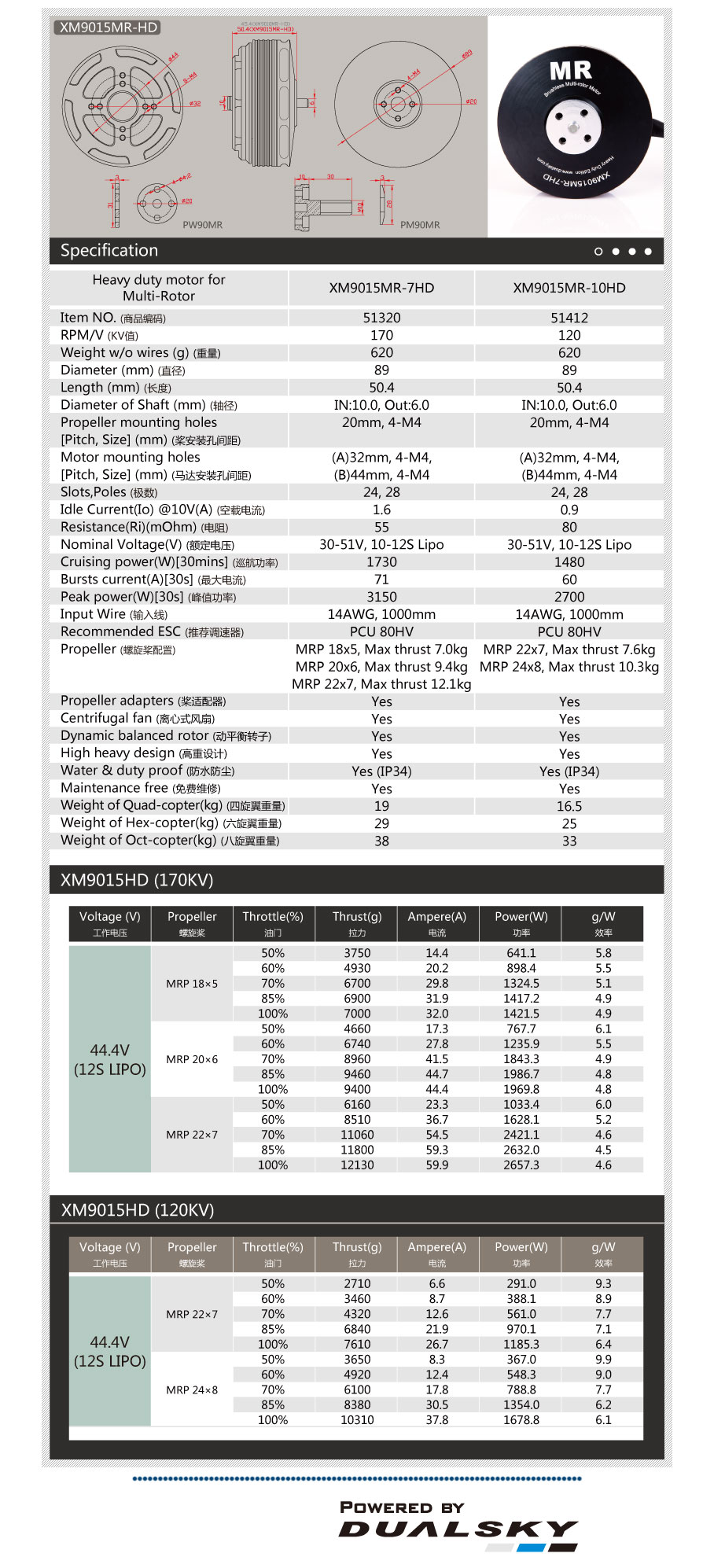

| NO. 51320 | XM9015MR-7HD | 170 |
| NO. 51412 | XM9015MR-10HD | 120 |
