Product Description：
DA3 added features:

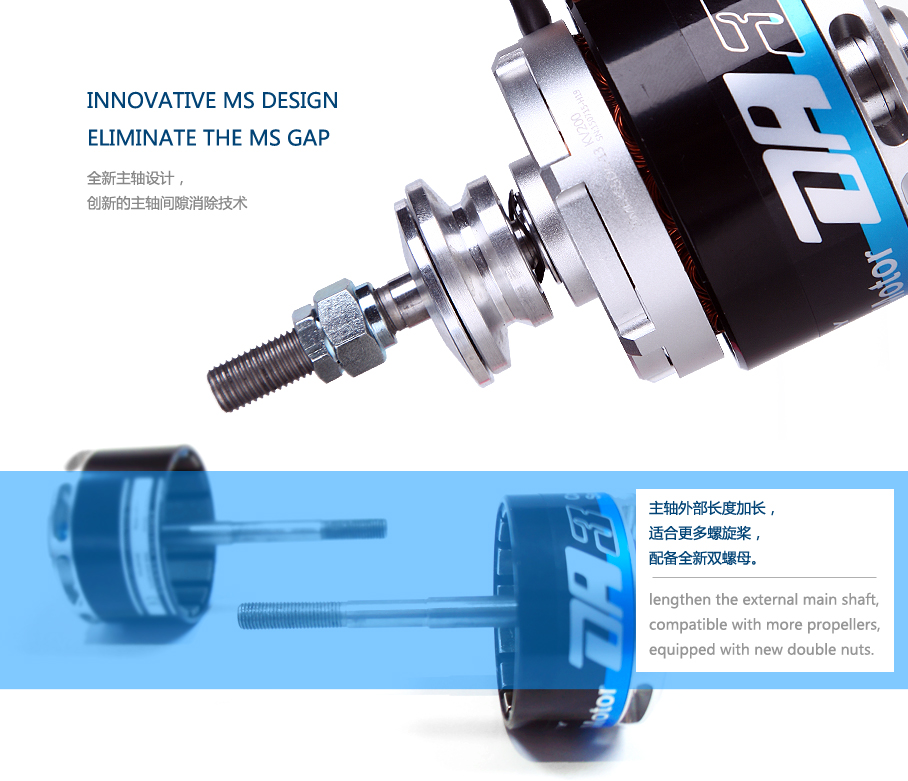

1.Innovative MS design -
eliminate the MS gap
2.lengthen the external main shaft, compatible with
more propellers, equipped with new double nuts.

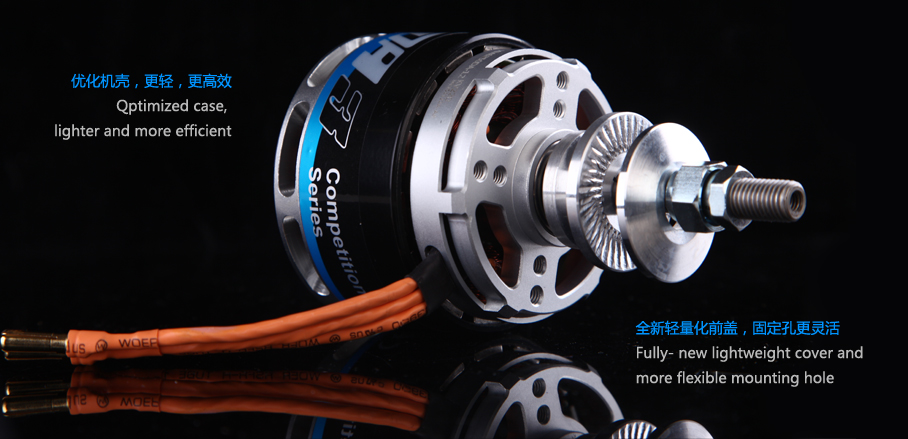

3. optimized case, lighter and more efficient
4. Fully- new lightweight cover and more
flexible mounting hole

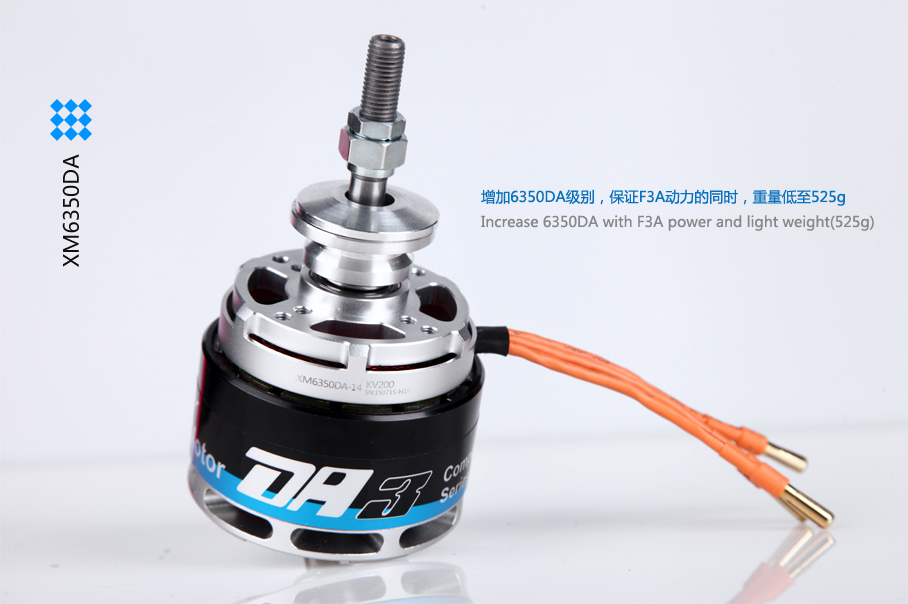

5.Increase 6350DA
with F3A power and light weight(525g)

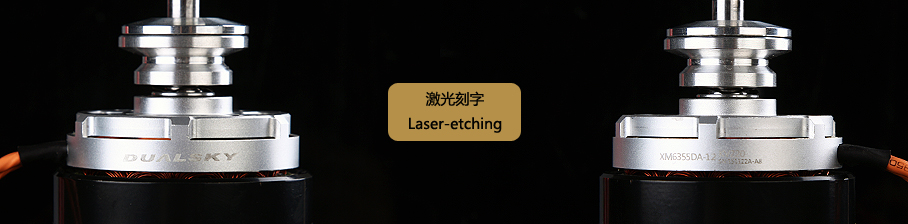

6.Laser-etching
DA features:

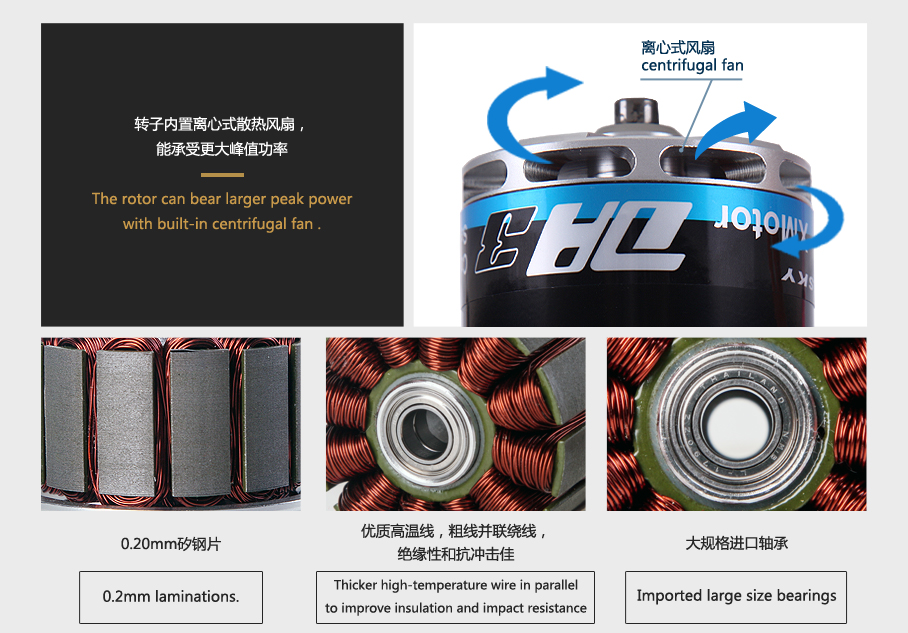

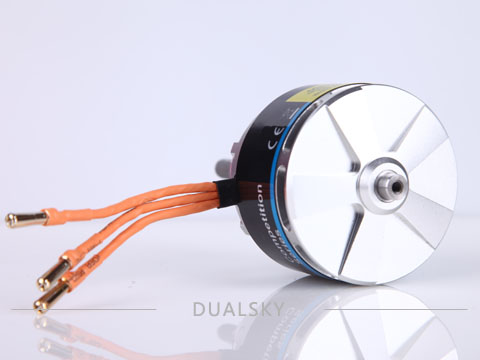

7.The rotor can bear larger peak power with
built-in centrifugal fan .
8.Especially designed for F3A and 3D
9.Imported large size bearings

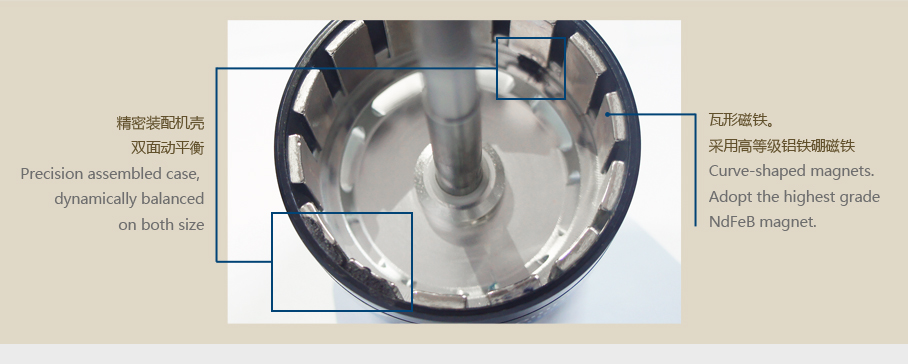

10.Precision assembled case, dynamically balanced
on both size

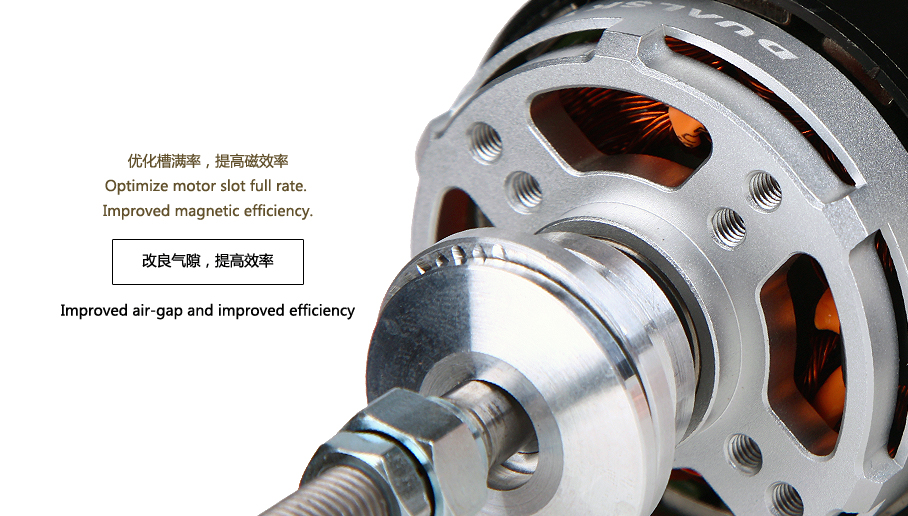

11.Improved air-gap and improved efficiency
12.Curve-shaped magnets. Adopt the highest grade NdFeB magnet.
14. Thicker
high-temperature wire in parallel to improve insulation and impact resistance
15.Optimize motor slot full rate. Improved magnetic
efficiency.

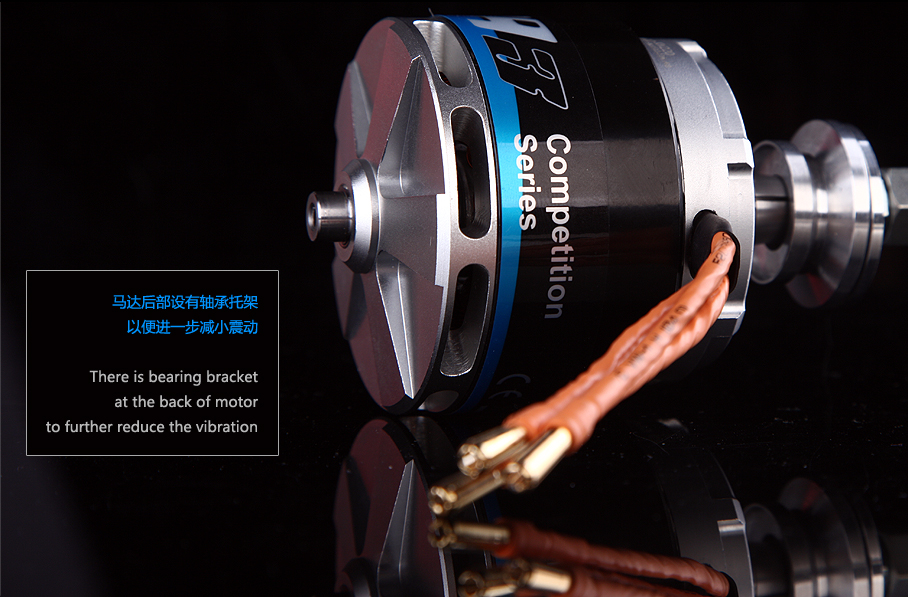

16. There is bearing bracket
at the back of motor to further reduce the vibration .

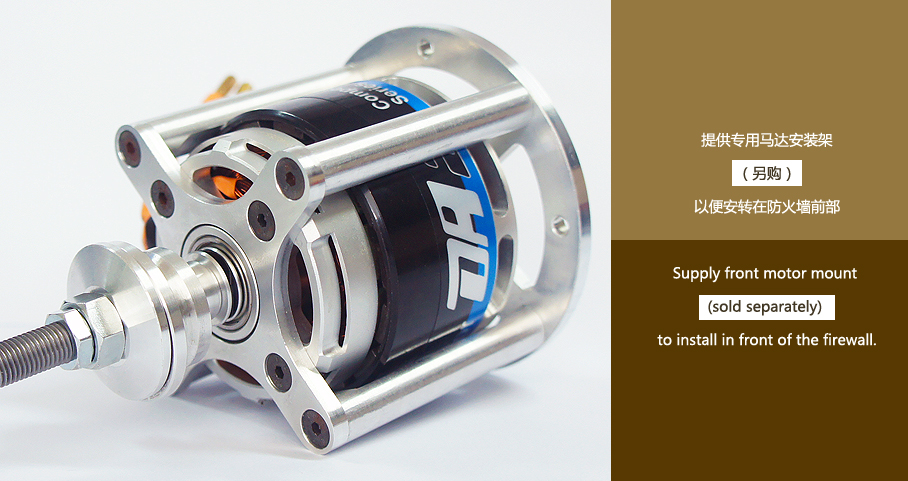

17. Supply front motor mount (sold separately) to
install in front of the firewall.

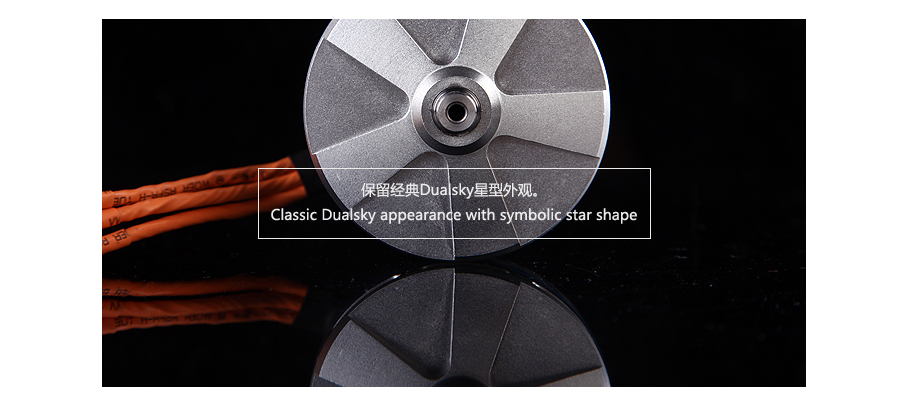

18.Classic Dualsky appearance with symbolic star
shape
|

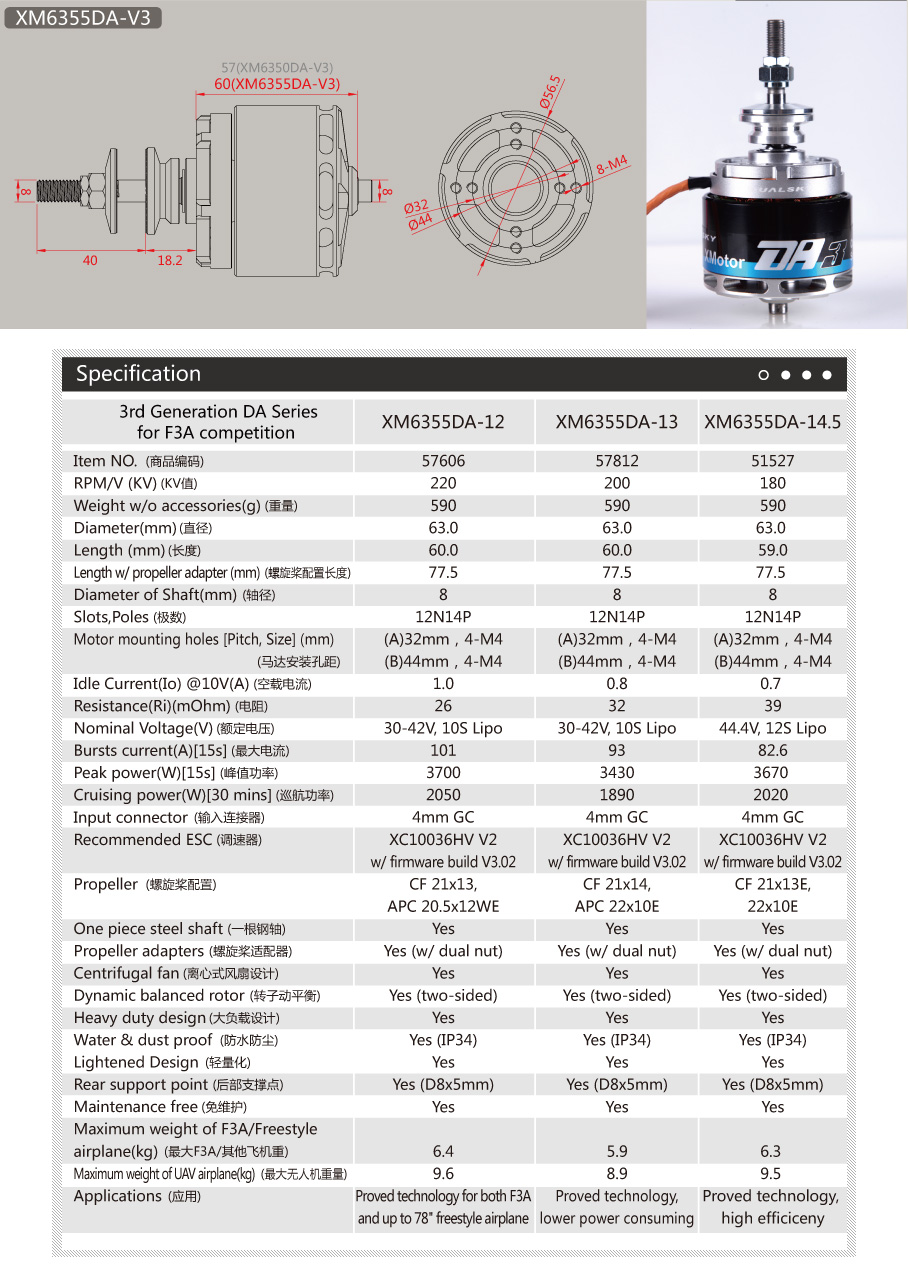

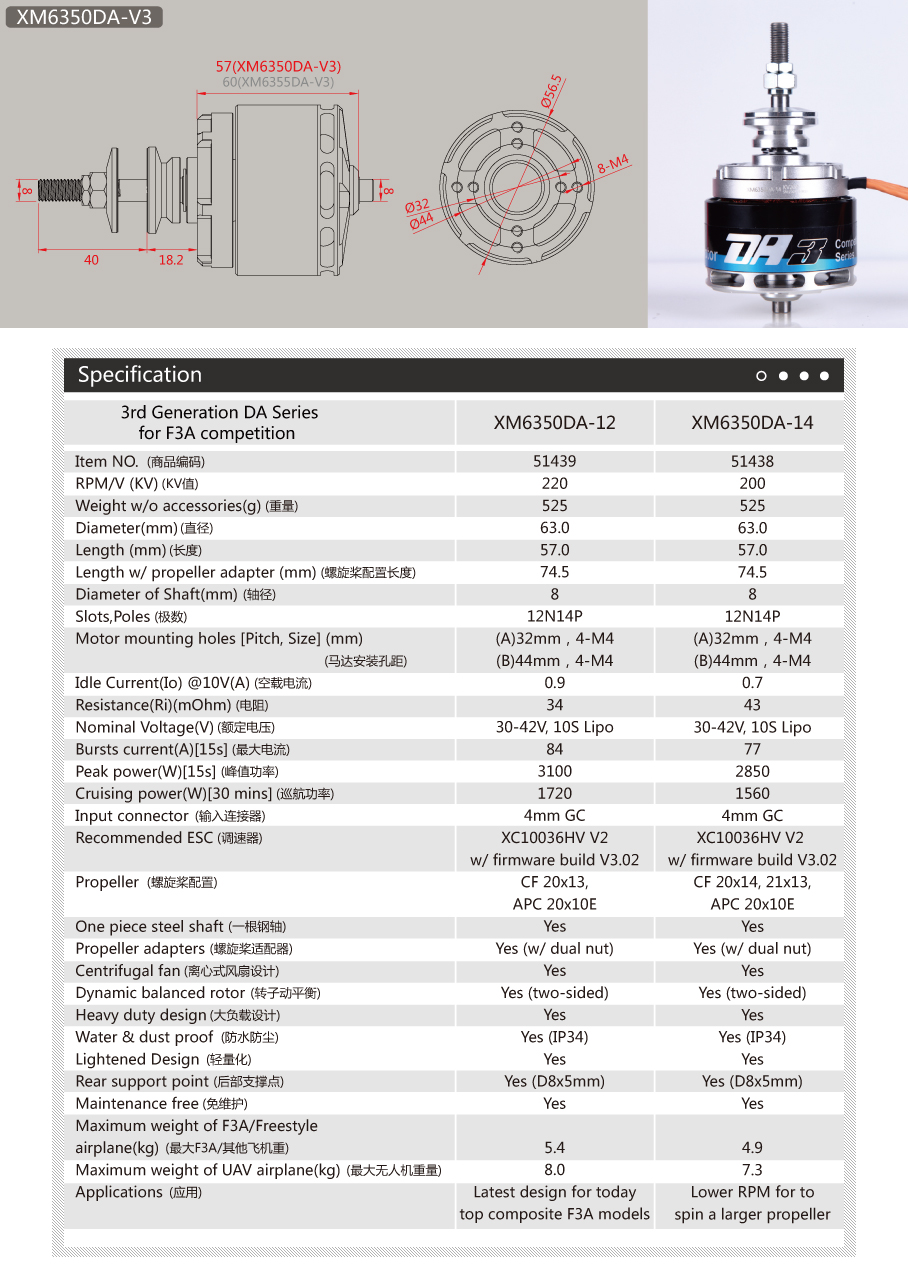

3rd Generation DA Series for F3A competition |
NO. 51439 XM6350DA-12 |
NO. 51438 XM6350DA-14 |
NO. 57606 XM6355DA-12 |
NO. 57812 XM6355DA-13 |
NO. 51527 XM6355DA-14.5 |
|
RPM/V (KV) |
220 | 200 | 220 | 200 | 180 |
|
Weight w/o accessories(g) |
525 | 525 | 590 | 590 | 590 |
|
Diameter(mm) |
63.0 | 63.0 | 63.0 | 63.0 | 63.0 |
