for high-end aerial photography gimbal and handheld gimbal systems 2nd generation stator design using the top 0.2mm material to improve motor efficiency Laser marking, highlighting grades
Product Description：

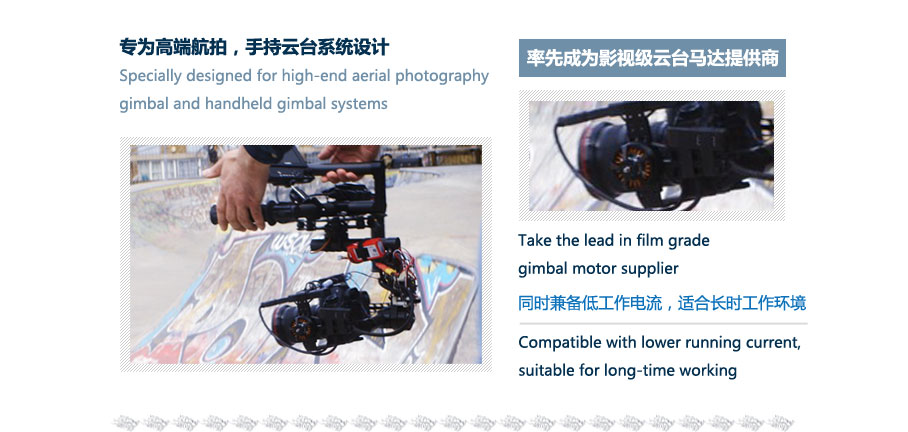

Specially designed
for high-end aerial photography gimbal and handheld gimbal systems

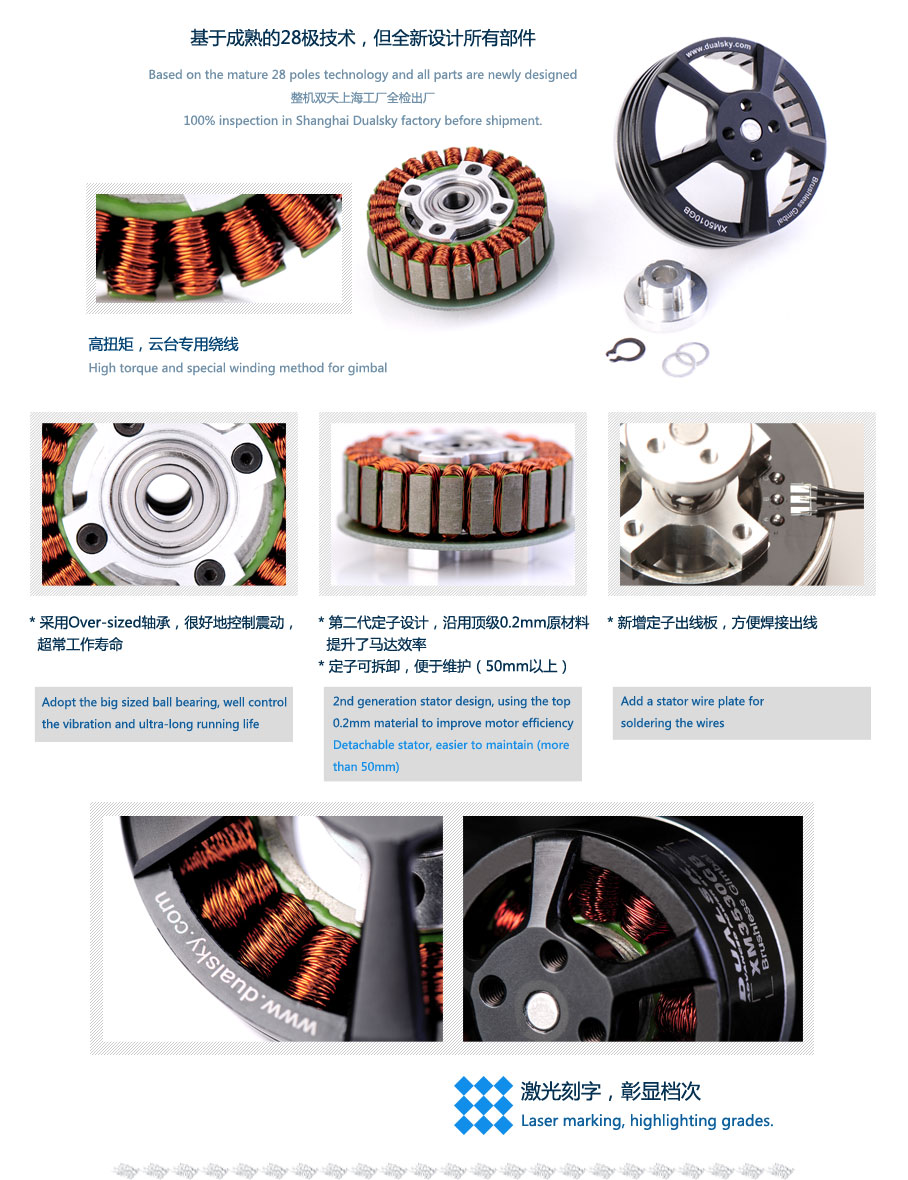

Based on the mature
28 poles technology and all parts are newly designed
2nd generation
stator design, using the top
High torque and
special winding method for gimbal
Compatible with
lower running current, suitable for long-time working
Detachable stator,
easier to maintain (more than
Adopt the big sized
ball bearing, well control the vibration and ultra-long running life

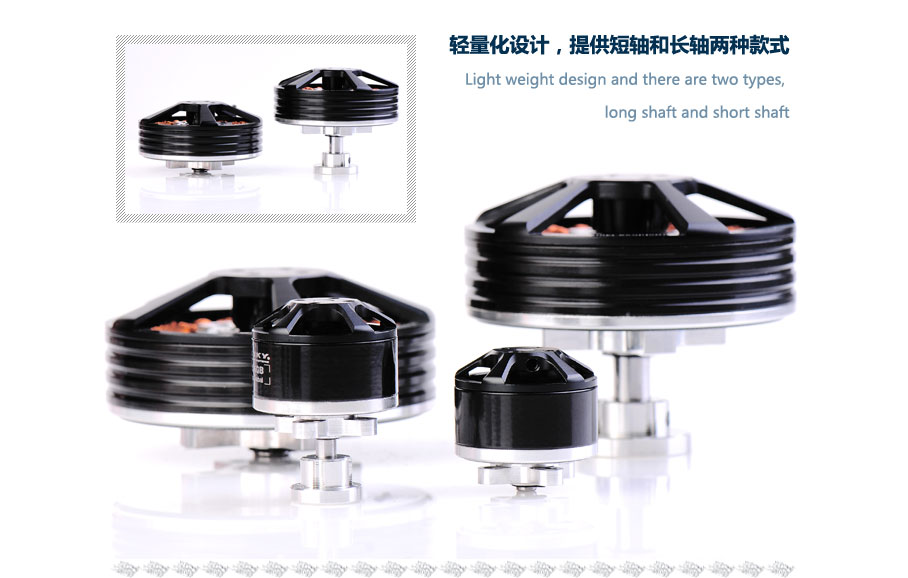

Light weight design
and there are two types, long shaft and short shaft
Add a stator wire
plate for soldering the wires

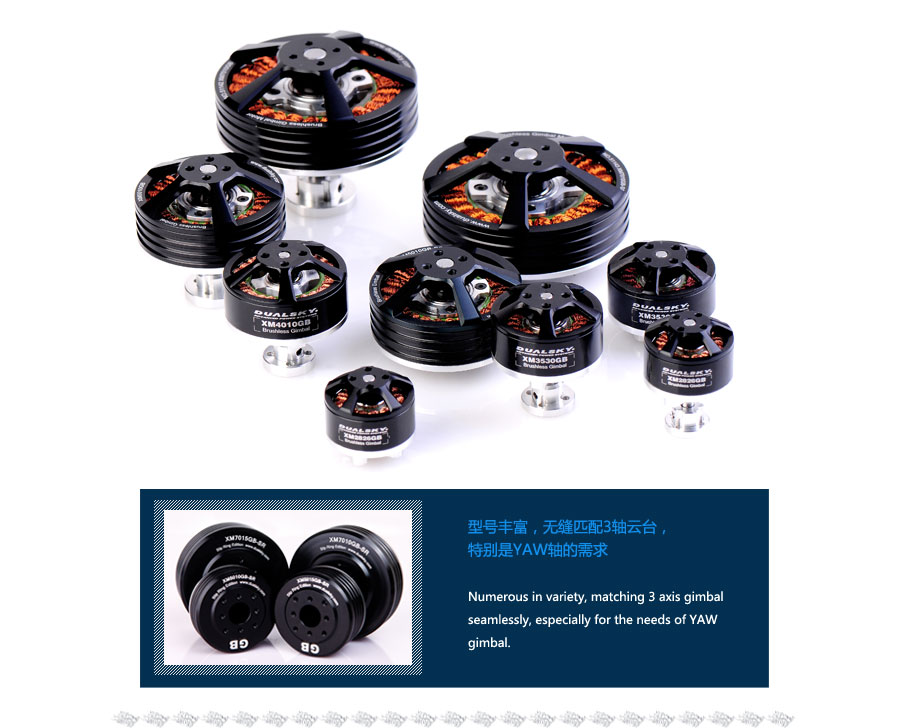

Numerous in
variety, matching 3 axis gimbal seamlessly, especially for the needs of YAW
gimbal.
Take the lead in
film grade gimbal motor supplier

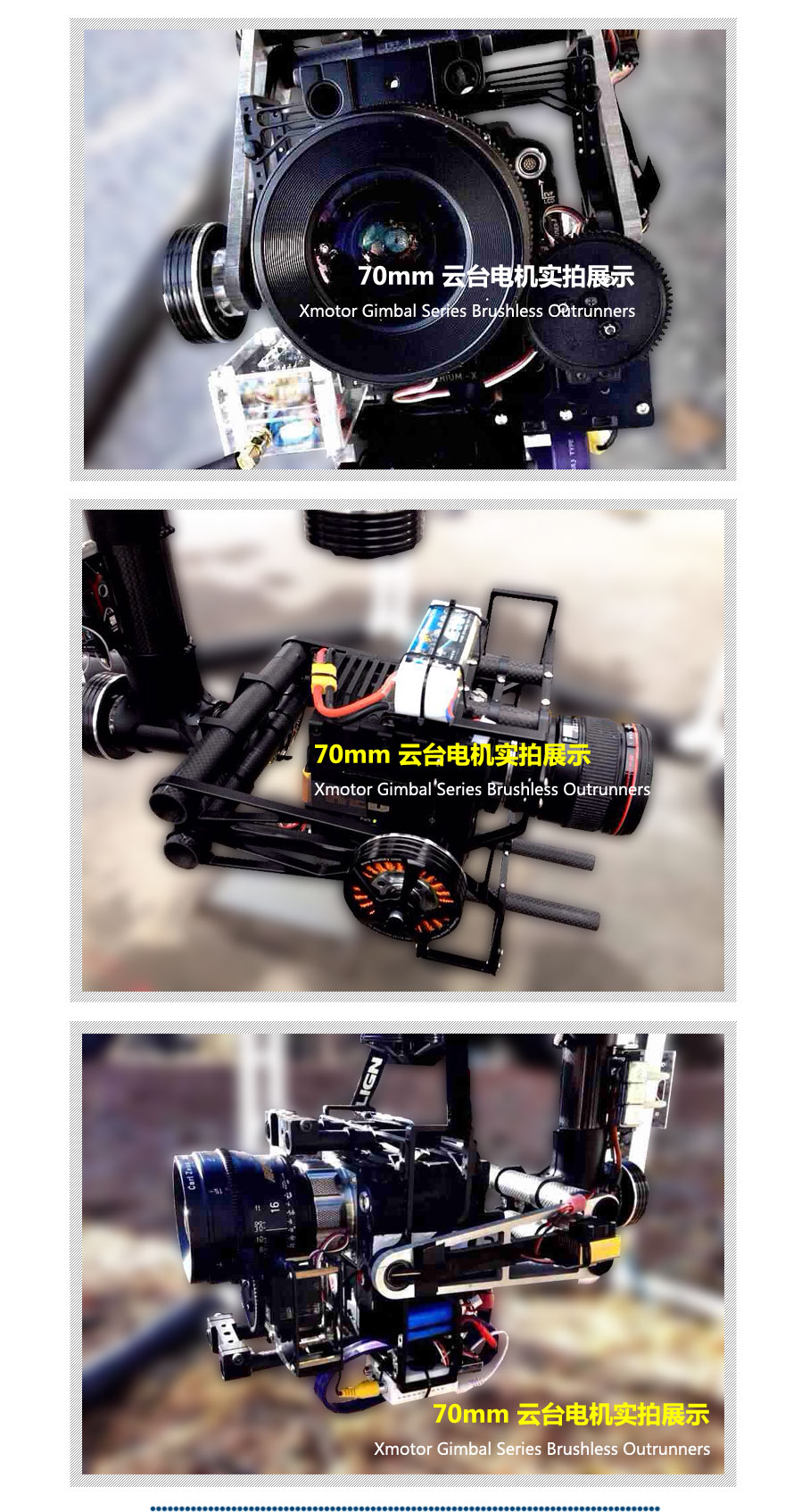

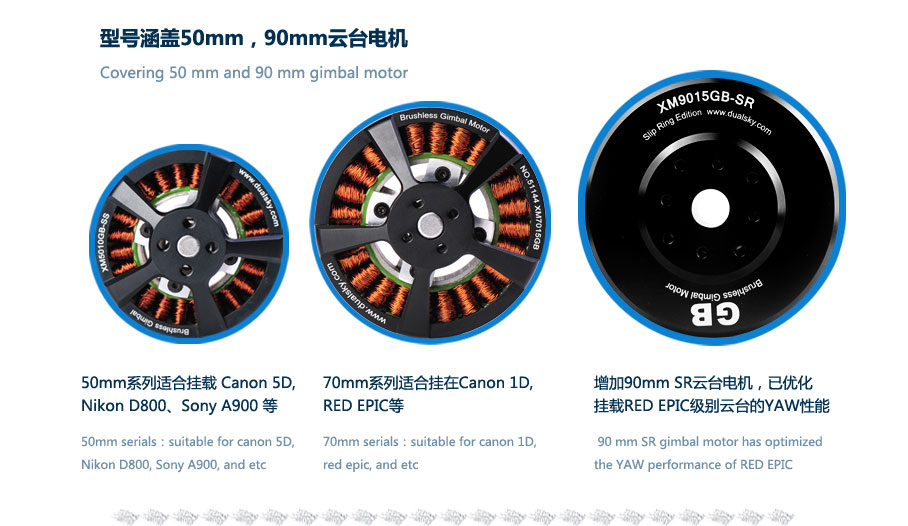

70mm serials：suitable
for canon 1D, red epic, and etc
Optimized Dualsky
"Star" appearance with precise secondary processing, both artistic and
high-precision.
Laser marking,
highlighting grades.
100% inspection in
Shanghai Dualsky factory before shipment.
Item Name：Xmotor Brushless Gimbal Outrunner

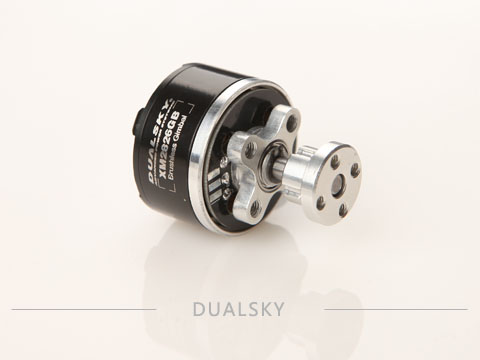

Item No：| 51132 | XM2826GB | 12.6Ω | 41g | NEW |
| 51133 | XM2826GB-SS, shorten shaft | 12.6Ω | 38g | NEW |

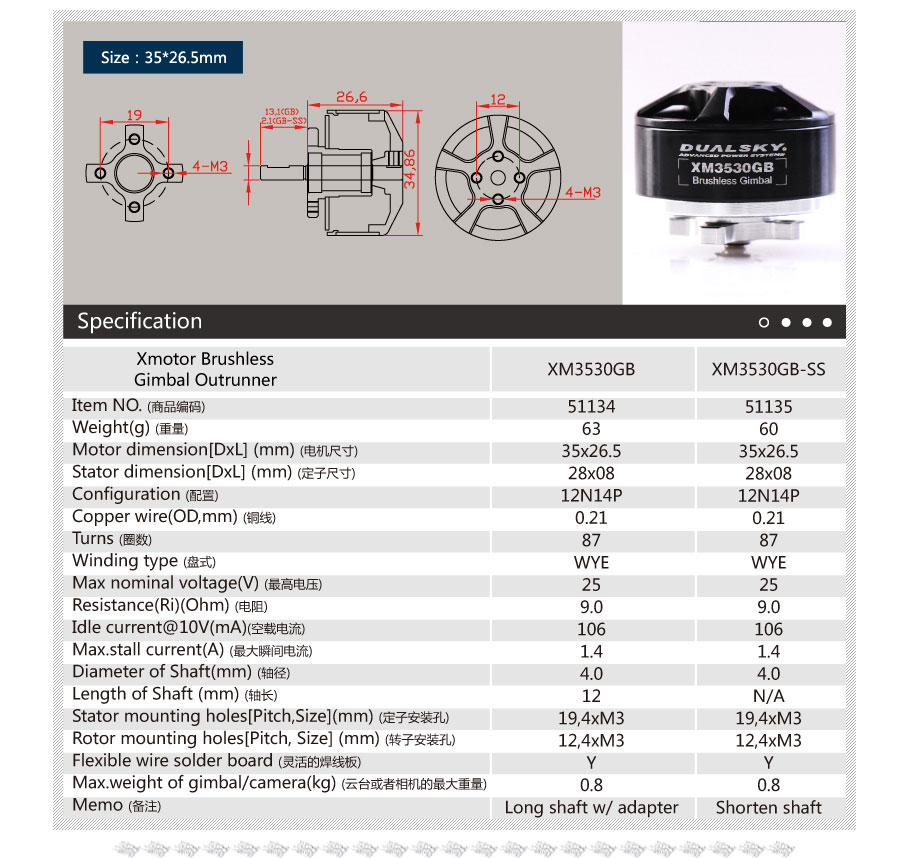

| 51134 | XM3530GB | 9.0Ω | 63g | NEW |
| 51135 | XM3530GB-SS, shorten shaft | 9.0Ω | 60g | NEW |

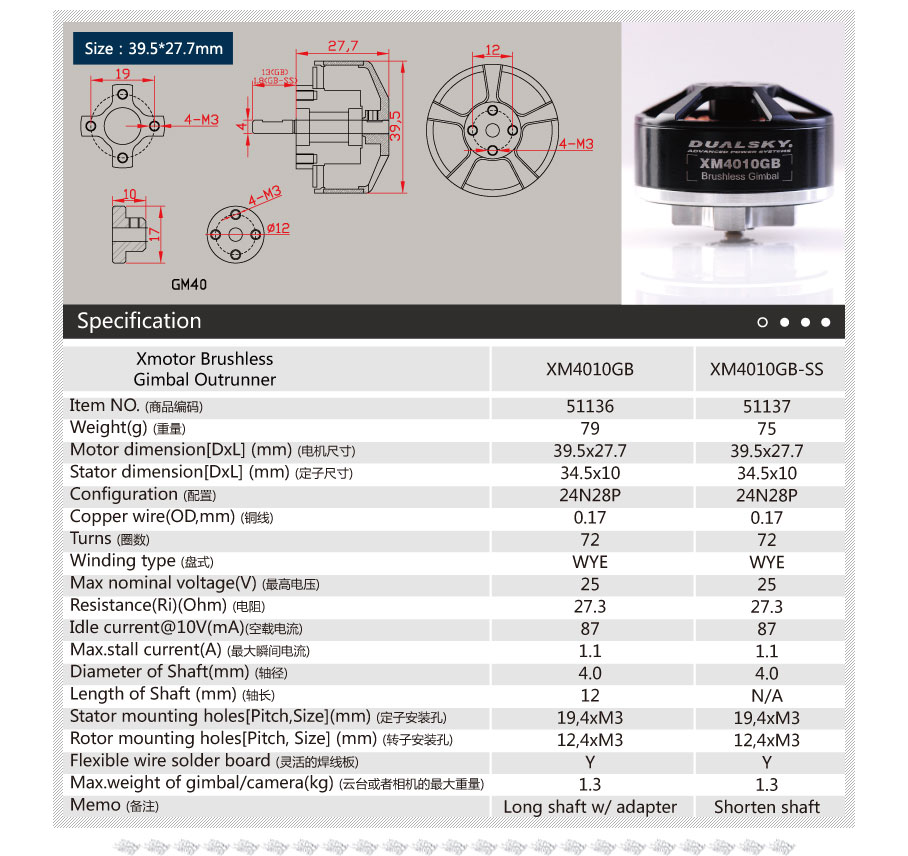

| 51136 | XM4010GB | 27.3Ω | 79g | NEW |
| 51137 | XM4010GB-SS, shorten shaft | 27.3Ω | 75g | NEW |
| 51138 | XM5010GB | 9.3Ω | 123g | NEW |
| 51139 | XM5010GB-SS, shorten shaft | 9.3Ω | 117g | NEW |

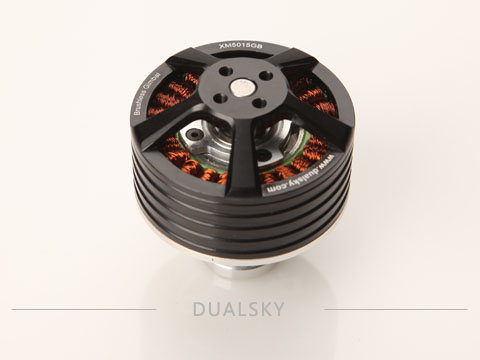

| 51140 | XM5015GB | 12.3Ω | 163g | NEW |
| 51141 | XM5015GB-SS, shorten shaft | 12.3Ω | 154g | NEW |

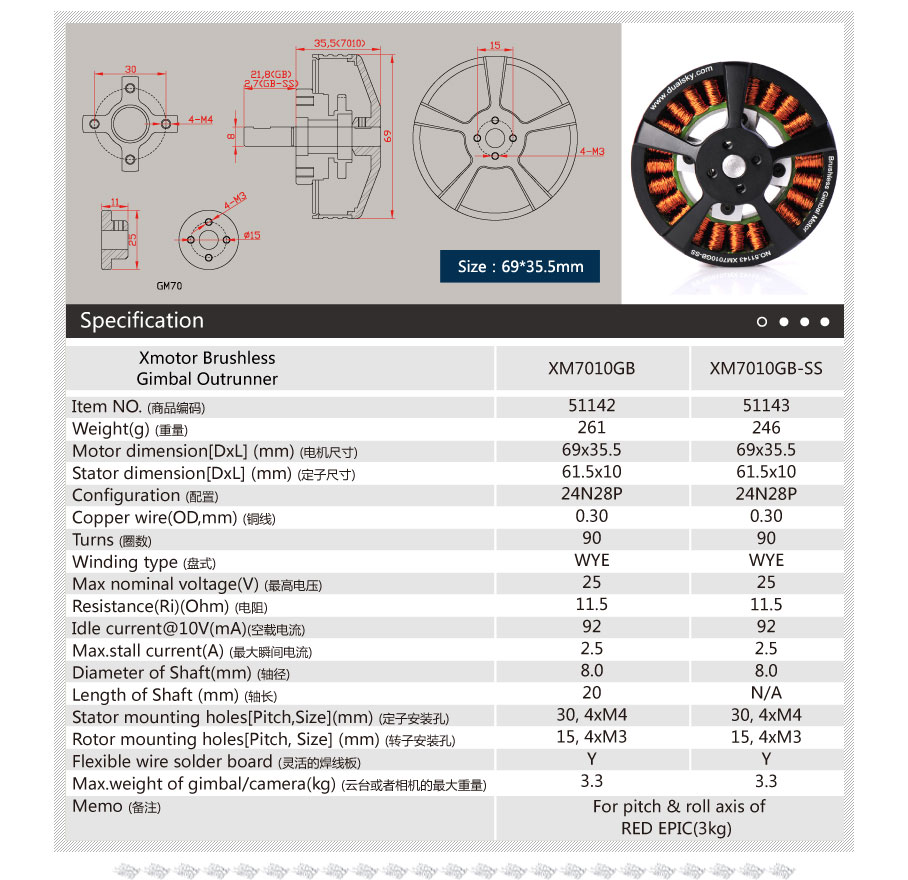

| 51142 | XM7010GB | 11.5Ω | 261g | NEW |
| 51143 | XM7010GB-SS, shorten shaft | 11.5Ω | 246g | NEW |
| 51144 | XM7015GB | 15.6Ω | 332g | NEW |

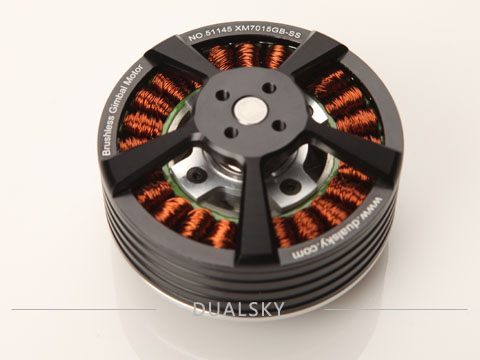

| 51145 | XM7015GB-SS, shorten shaft | 15.6Ω | 320g | NEW |
