Product Description:
                                    ======= Heavy Duty 2 added features:========

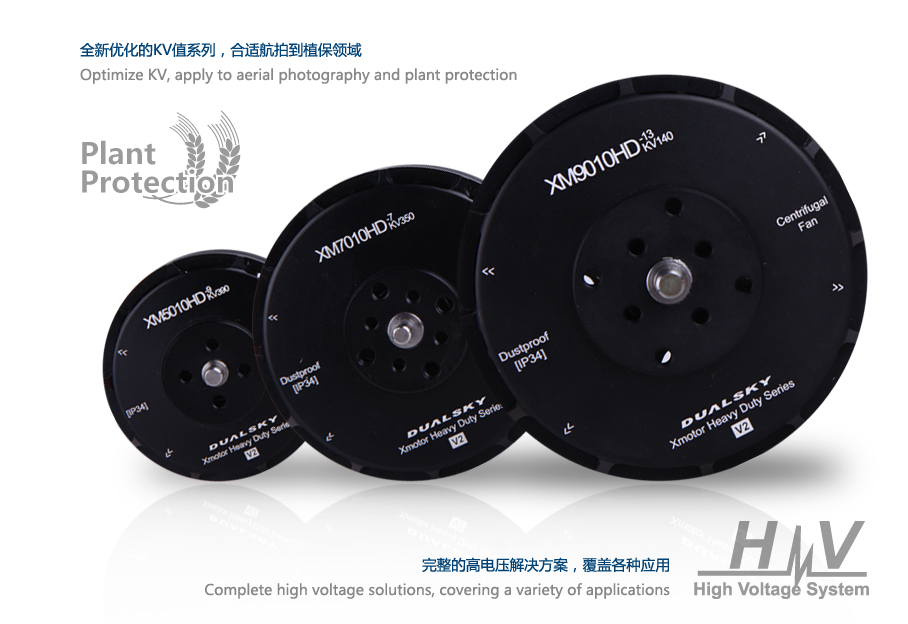

*    complete high voltage solutions, covering a variety of applications
*    optimize KV, apply to aerial photography and plant protection

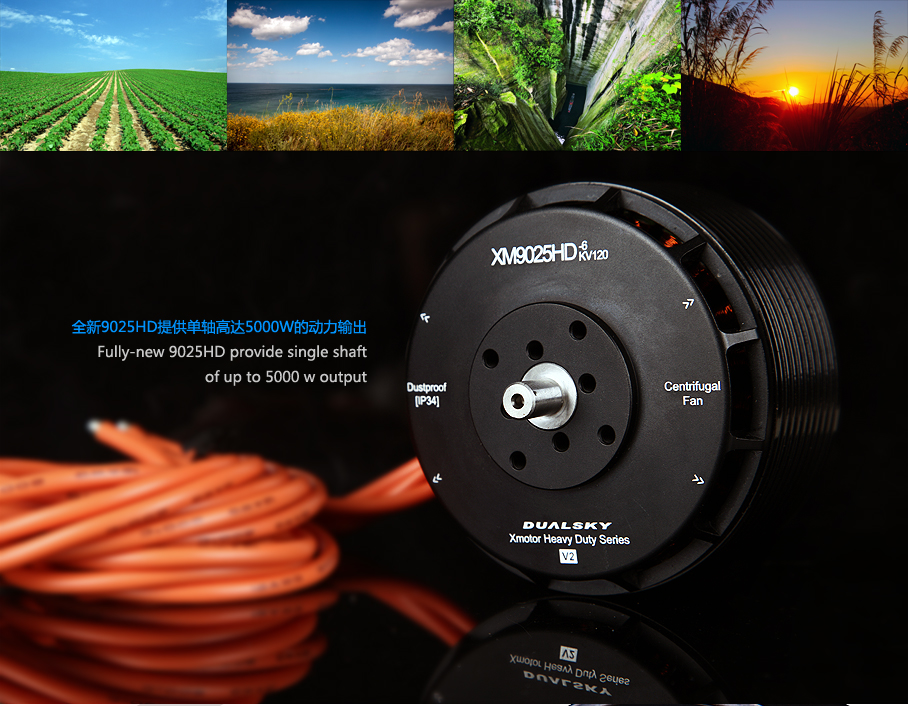

*    fully-new 9025HD provide single shaft of up to 5000 w output
*    high efficiency, low calorific value, suitable for long running

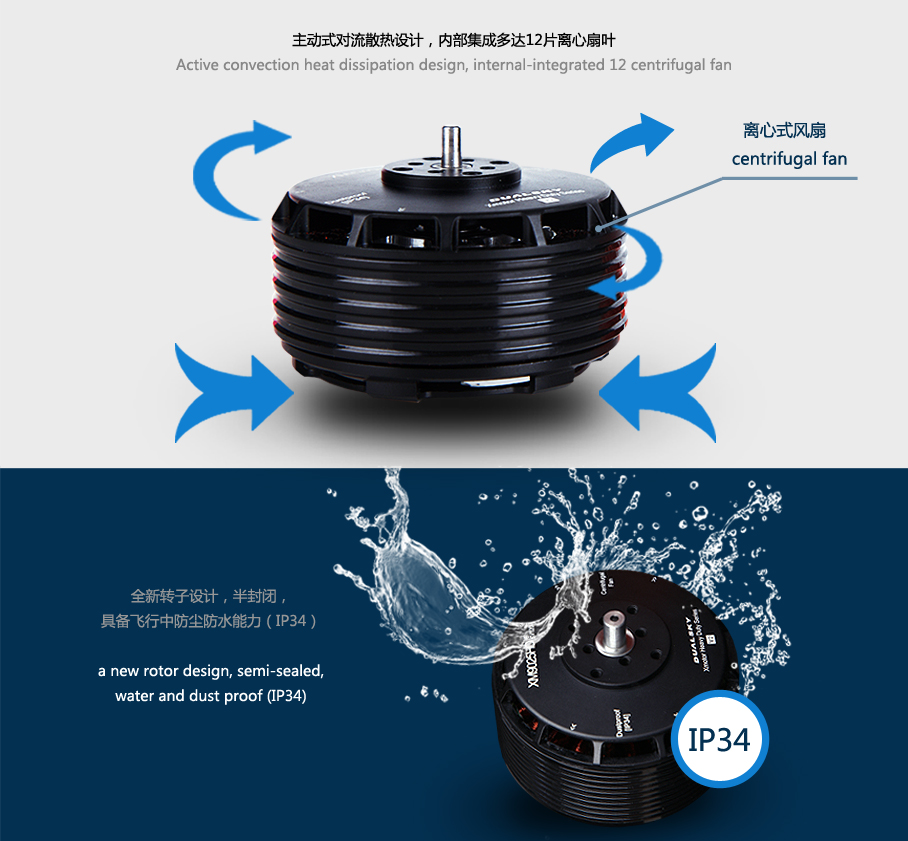

*    active convection heat dissipation design, internal-integrated 12 centrifugal fan
*    a new rotor design, semi-sealed,water and dust proof (IP34)
*    optimize structure rigidity, more suitable for harsh environment and meet the requirements of high attendance
========HD2 features:==========

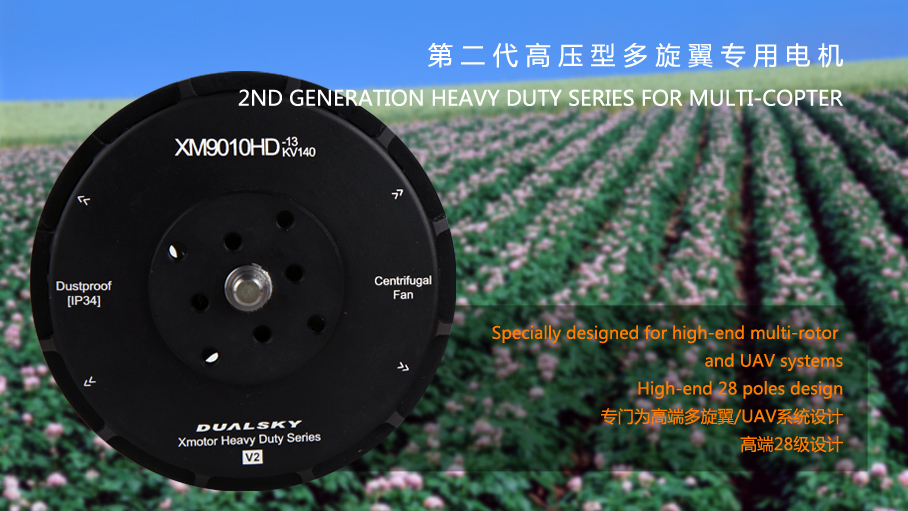

   specially designed for high-end multi-rotor and UAV systems
   high-end 28 poles design

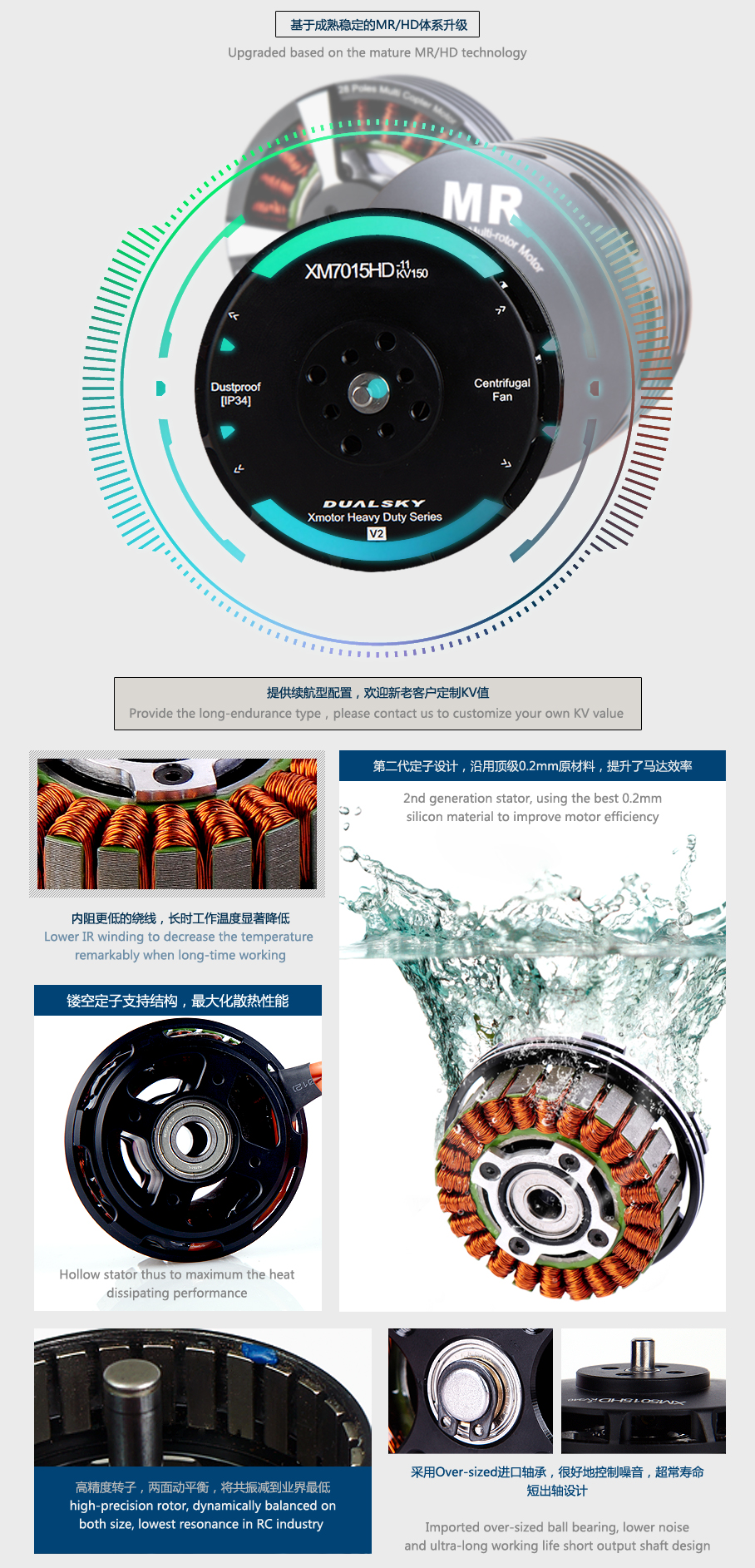

   upgraded based on the mature MR/HD technology
   2nd generation stator, using the best 0.2mm silicon material to improve motor efficiency
   Hollow stator thus to maximum the heat dissipating performance
   Lower IR winding to decrease the temperature remarkably when long-time working
   Imported over-sized ball bearing, lower noise and ultra-long working life

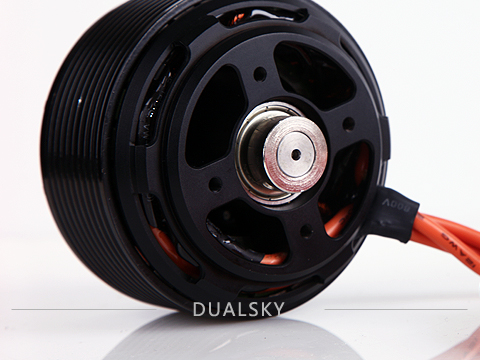

   short output shaft design
   high-precision rotor, dynamically balanced on both size, lowest resonance in RC industry
   New stator cover to protect power wires

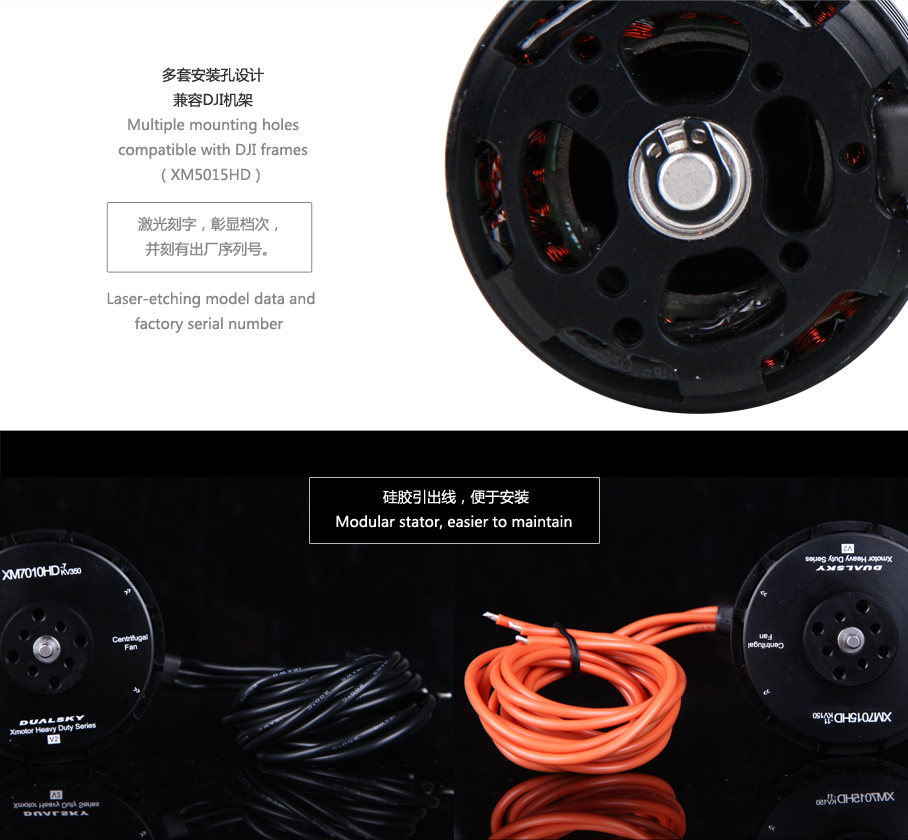

   Multiple mounting holes, compatible with DJI frames
   Lengthen silicon power wire, easy to install
   Modular stator, easier to maintain
   Laser-etching model data and factory serial number
   Comes with propeller adapters, can install traditional and professional propellers
   Recommended to work with Dualsky MRP series propellers to achieve best working efficiency
   100% inspection in Shanghai Dualsky factory before shipment.

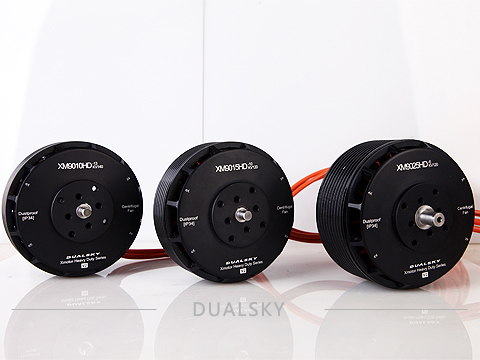

                        2nd Generation Heavy duty series for Multi-copter
	50mm HD2







					Item NO.


					NO. 51445


					NO. 51446


					NO. 51447




					Name

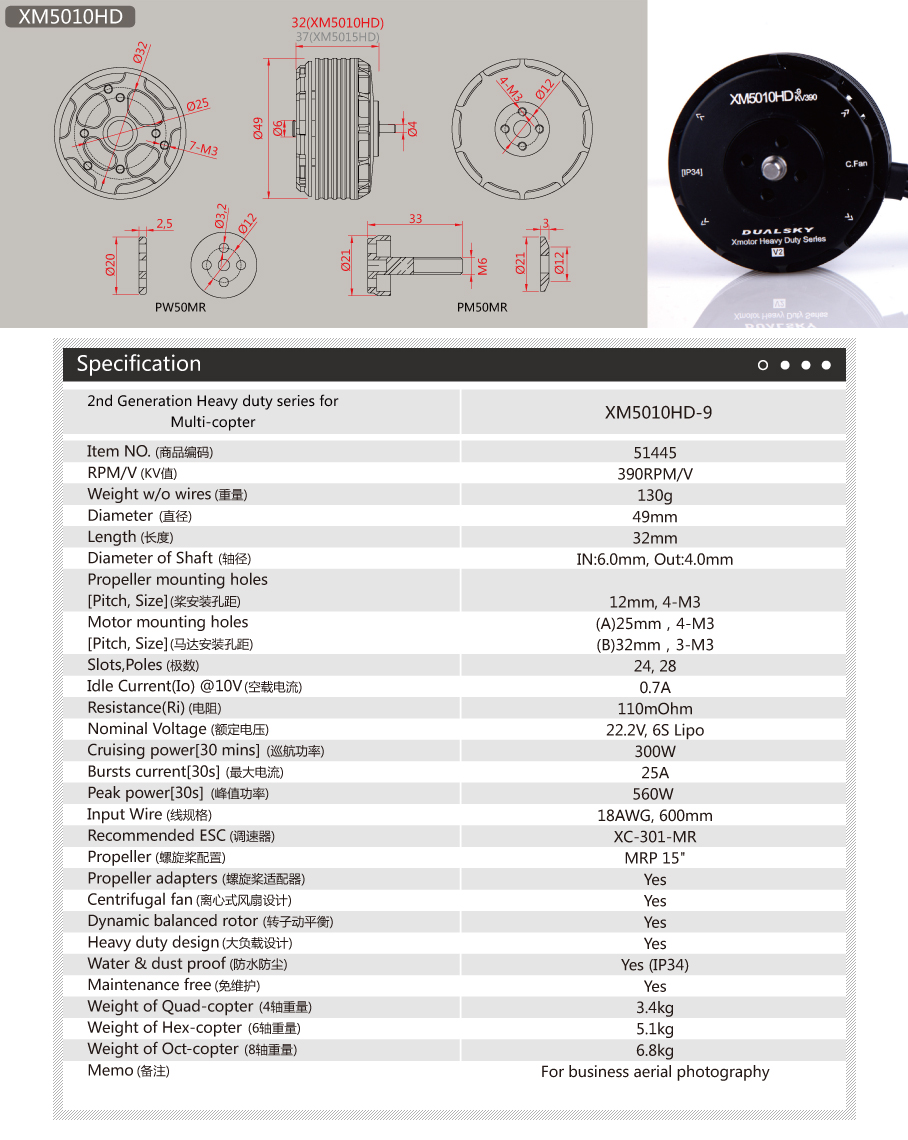

					XM5010HD-9

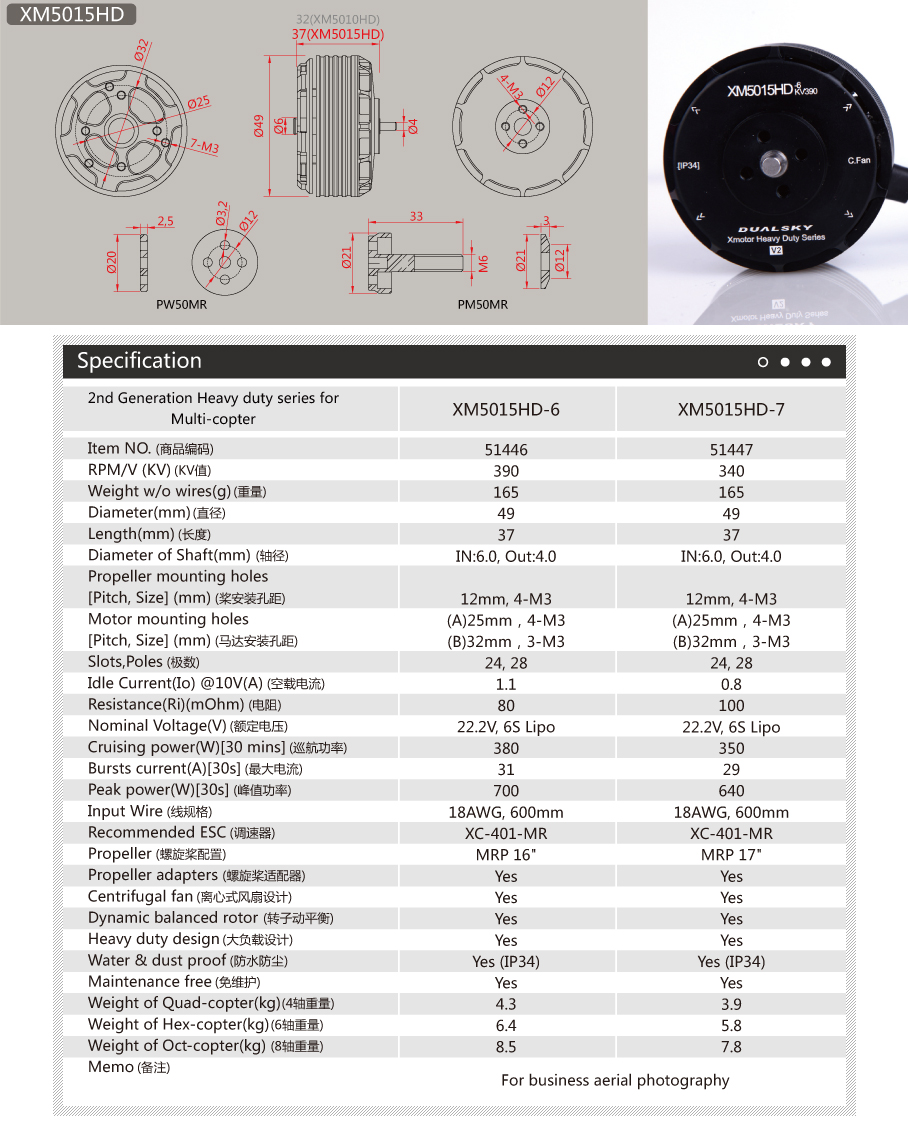

					XM5015HD-6


					XM5015HD-7




					RPM/V (KV)


					390


					390


					340





					Weight w/o wires(g)


					130


					165


					165



70mm HD2


						155

						High Voltage

						150

						High Voltage





					Item NO.


					NO. 51448


					NO. 51449


					NO. 51450


					NO. 51451




					Name

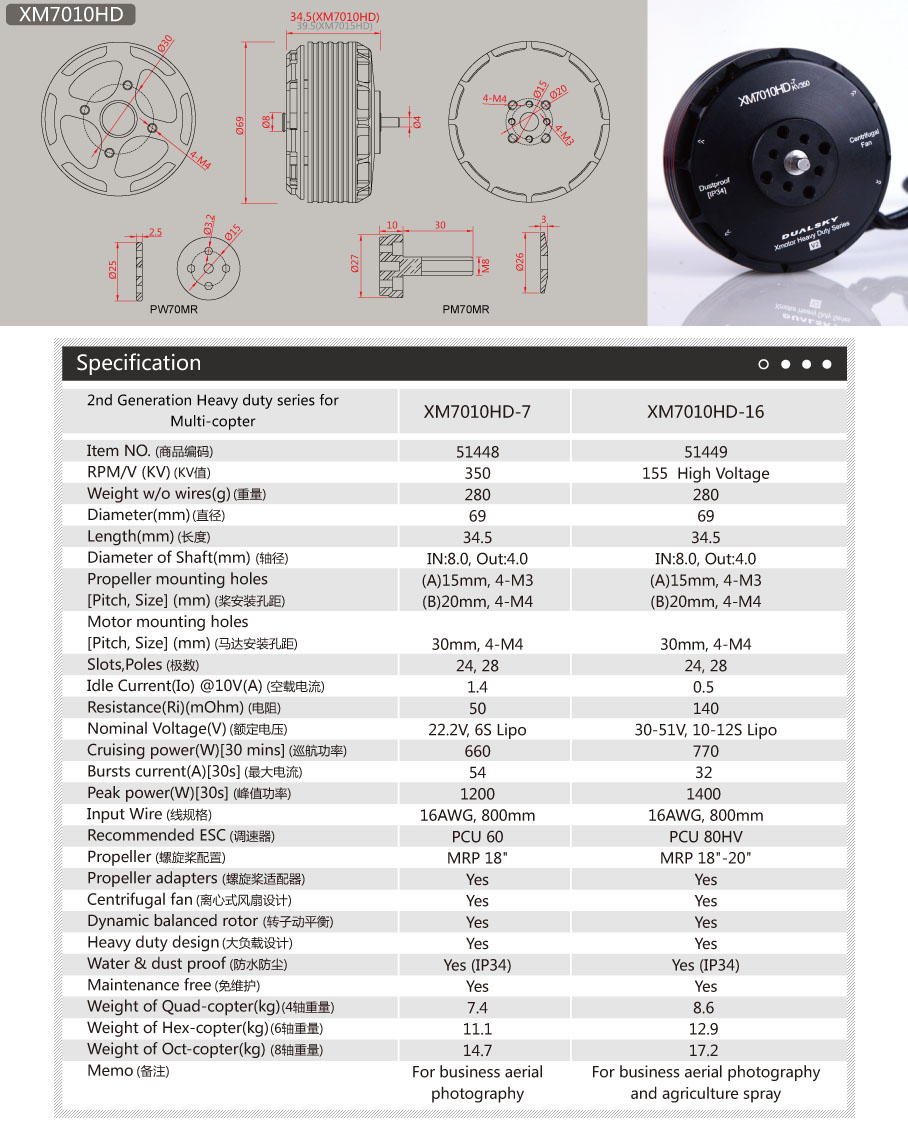

					XM7010HD-7


					XM7010HD-16

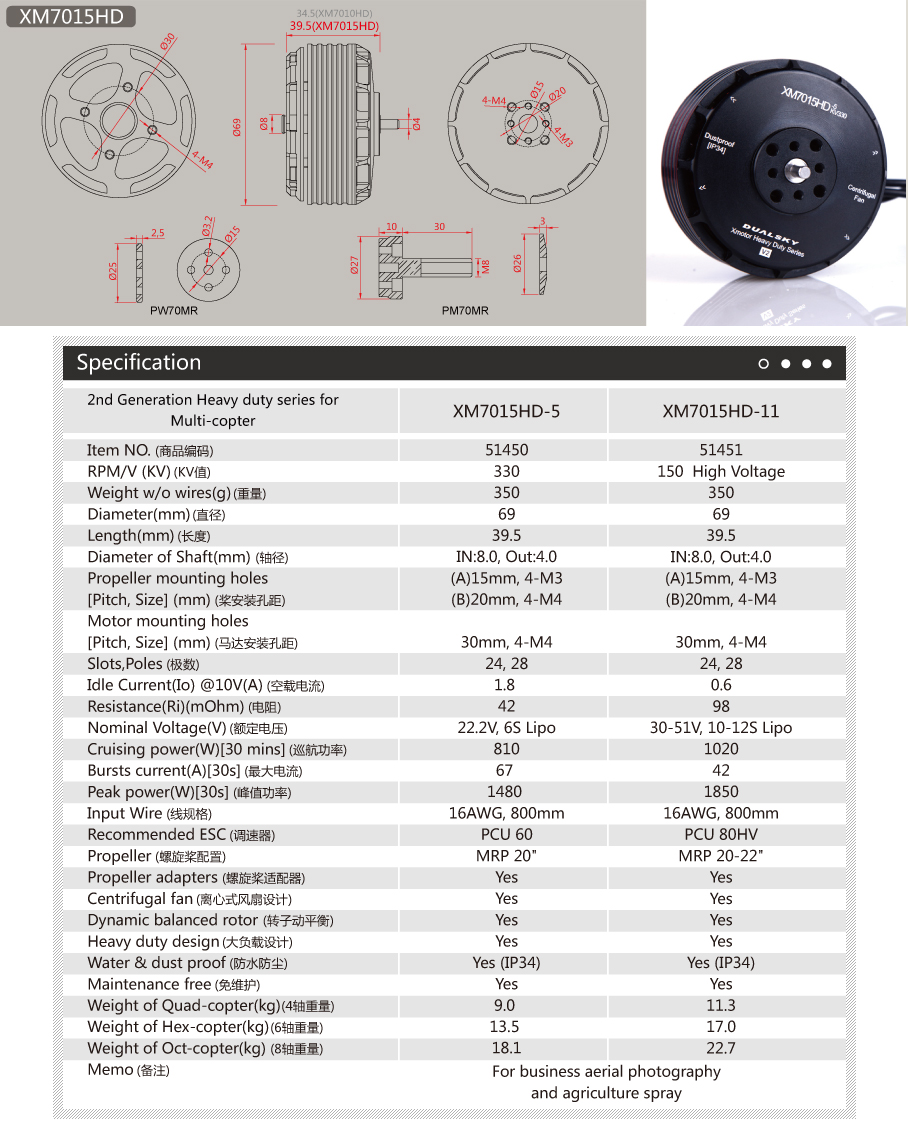

					XM7015HD-5


					XM7015HD-11




					RPM/V (KV)


					350




					330







					Weight w/o wires(g)


					280


					280


					350


					350

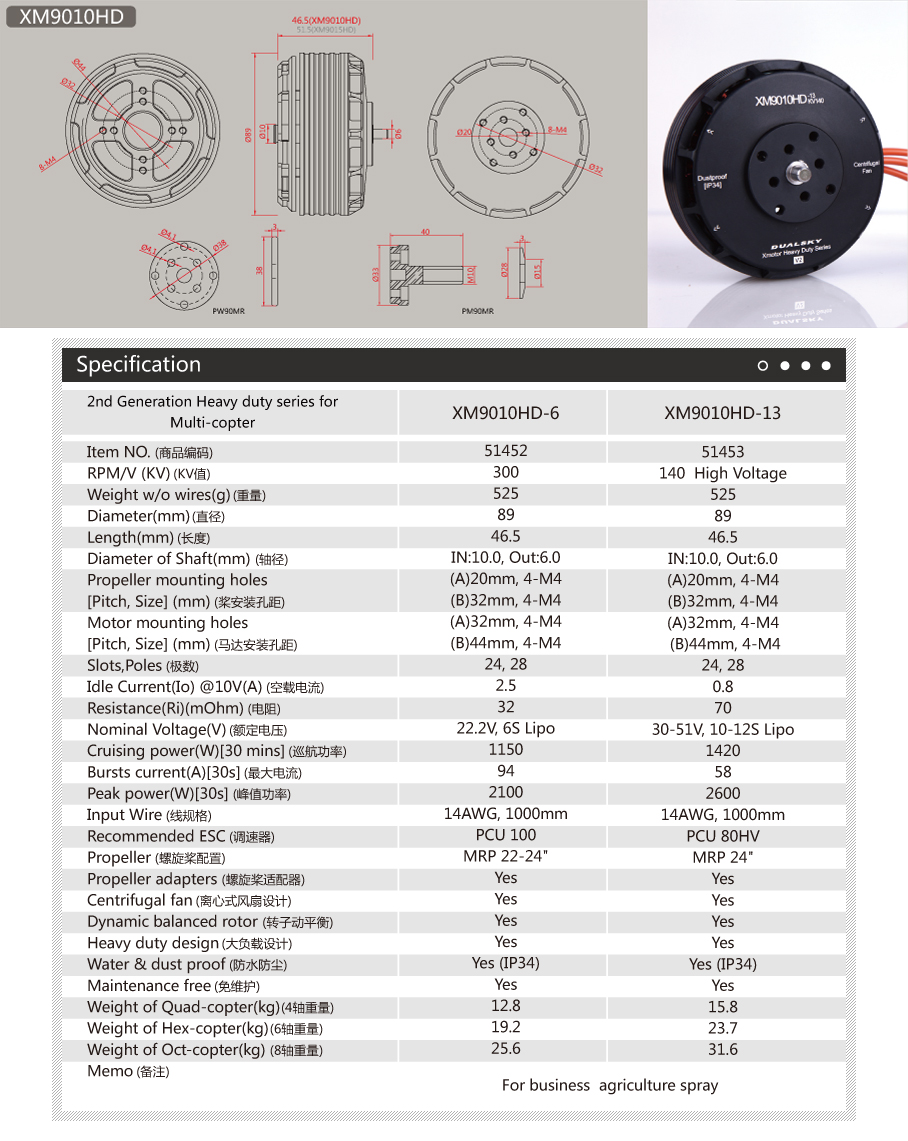

	90mm HD2





					Item NO.


					NO. 51452


					NO. 51453


					NO. 51454


					NO. 51455




					Name


					XM9010HD-6


					XM9010HD-13

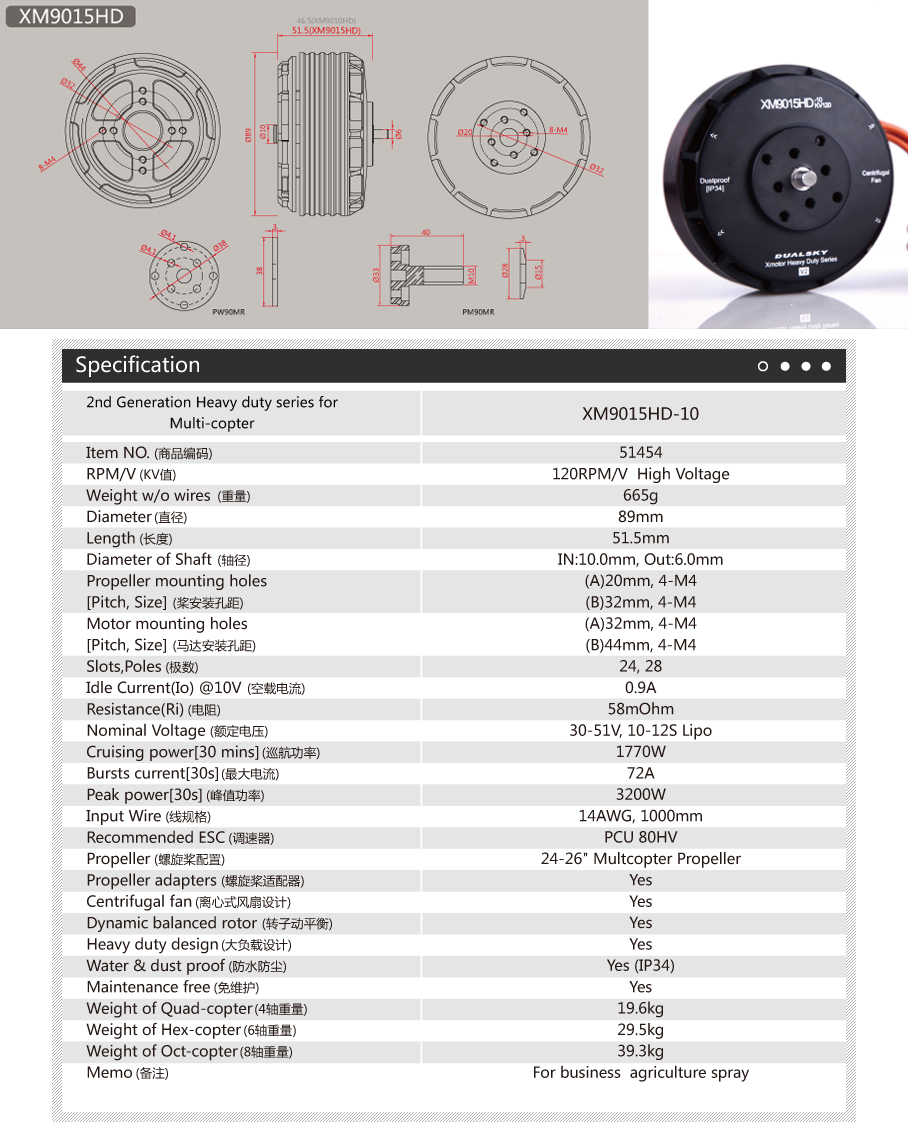

					XM9015HD-10

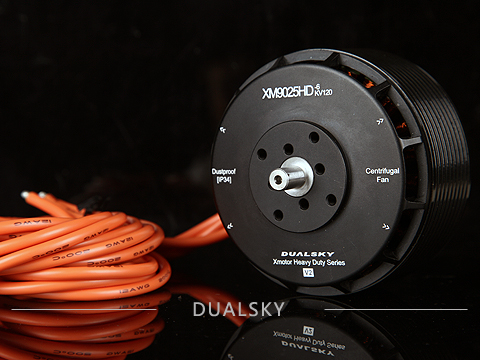

					XM9025HD-6




					RPM/V (KV)


					300


					140

High Voltage

					120

High Voltage

					120

High Voltage




					Weight w/o wires(g)


					525


					525


					665


					1000
