Product Description：
Heavy Duty 3 new features
* HD2 has played an important role in agriculture, defense, electric power and logistics.
* all HD series upgraded to heavy load safety device of main shaft (Patent pending)

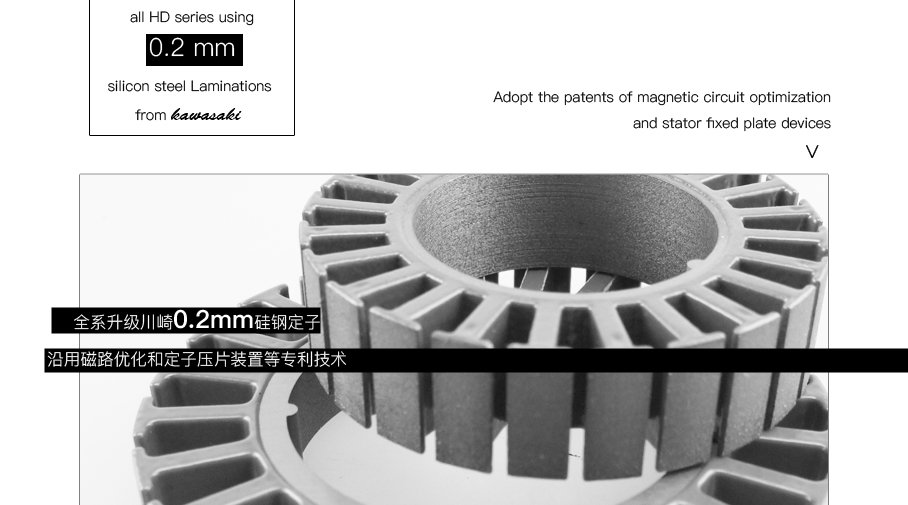

* all HD series using 0.2 mm silicon steel Laminationsfrom kawasaki
* adopt the patents of magnetic circuit optimization and stator fixed plate devices

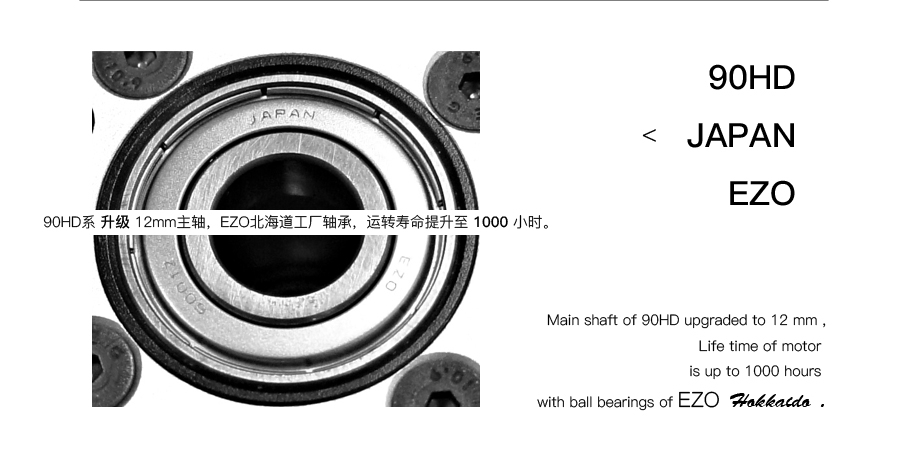

* main shaft of 90HD upgraded to 12 mm ,Life time of motor is up to 1000 hours with ball bearings of EZO Hokkaido .
* CNC parts made by USA HARDINGE preciseMachine.

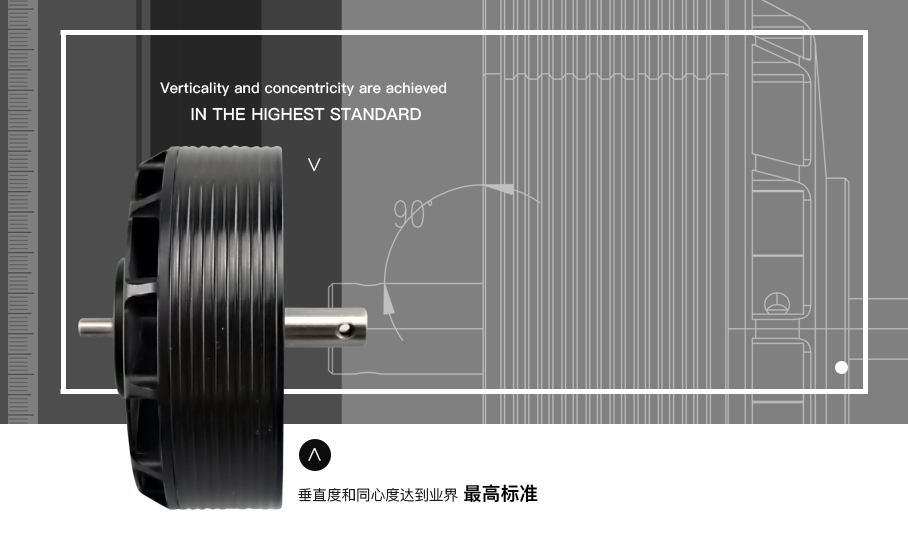

* verticality and concentricity are achieved in the highest standard.
* machine winding, the KV are kept in consistent

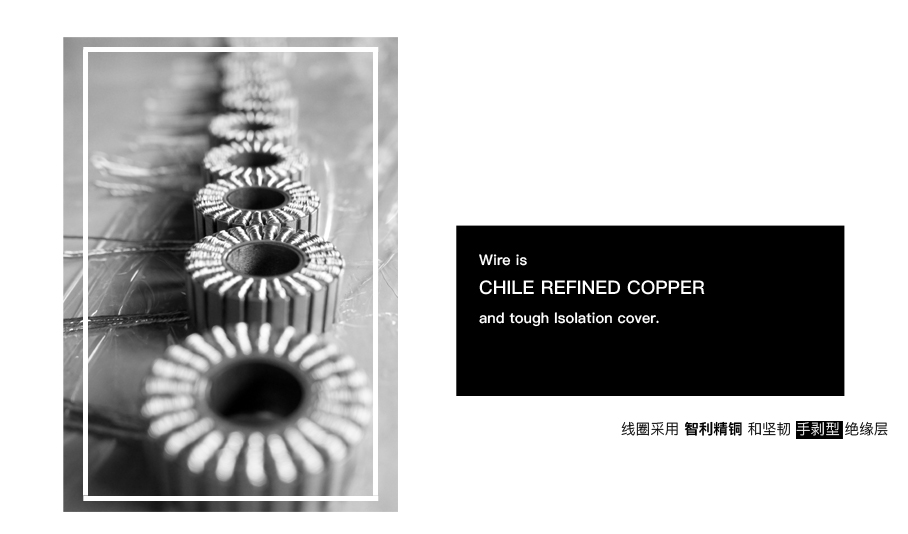

* wire is Chile refined copper and tough Isolation cover.

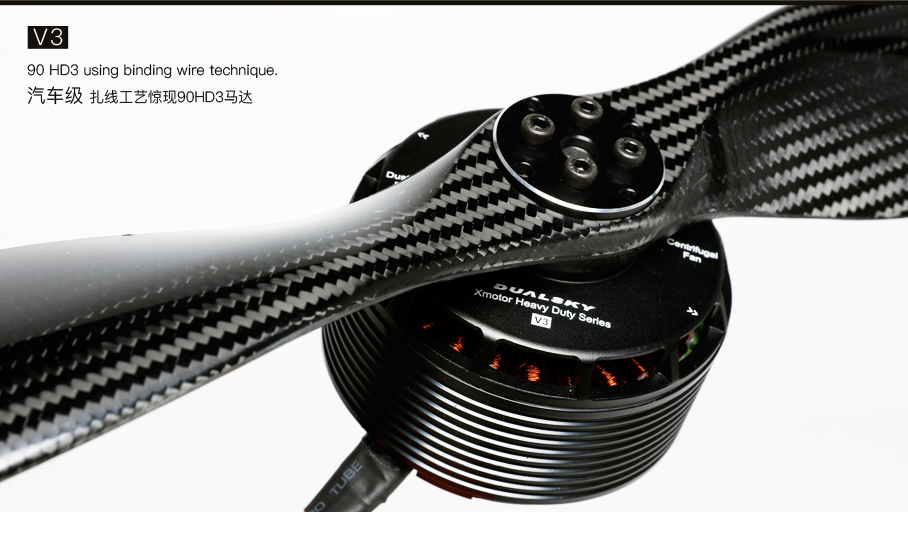

* 90 HD3 using binding wire technique.

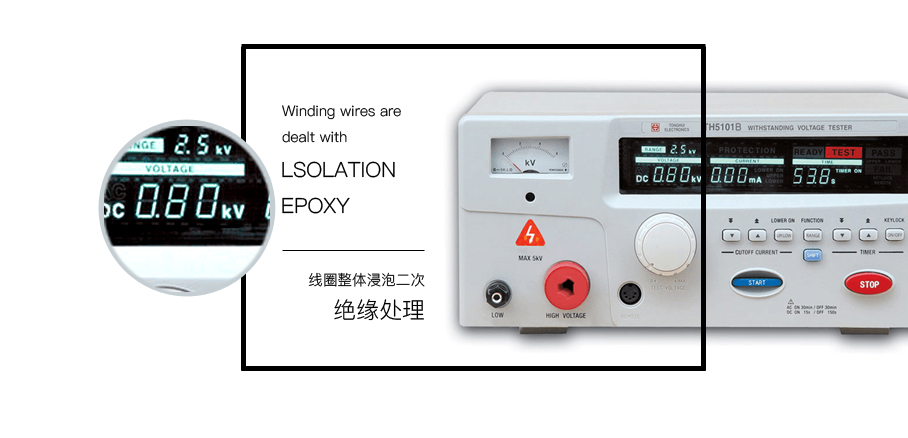

* winding wires are dealt with Isolation epoxy.

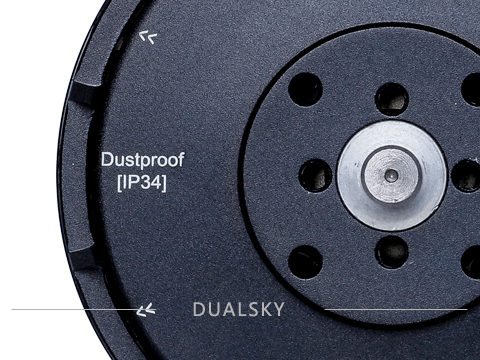

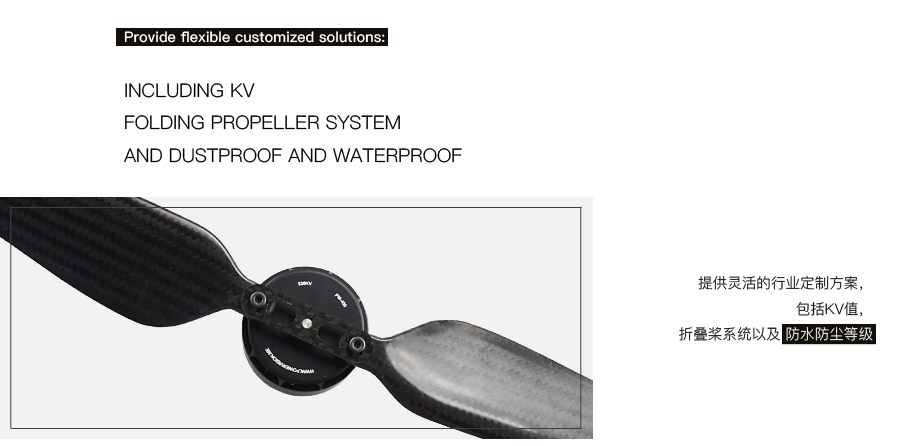

* provide flexible customized solutions: including KV, folding propeller system, and dustproof and waterproof.

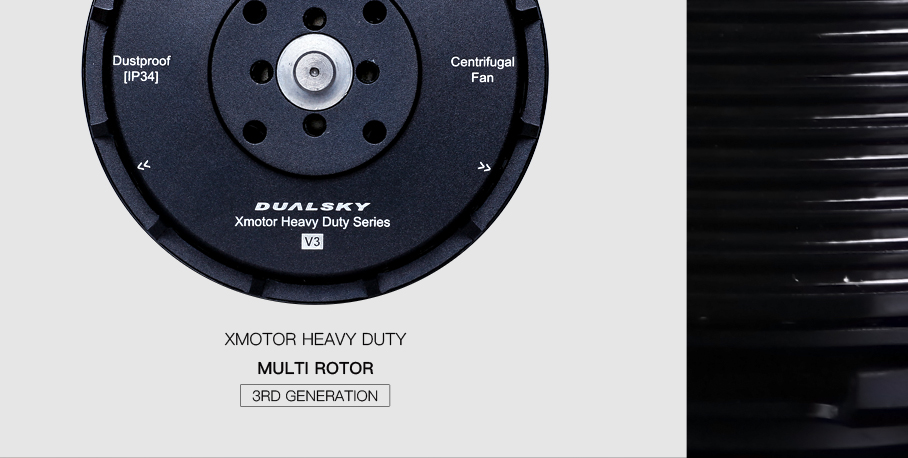

3RD Generation Heavy duty series for Multi-copter
40mm HD3
|
Item NO. |
NO. 51751 |
NO. 51750 |
NO. 51749 |
NO. 51748 |
|
Name |
XM4006HD-8 |
XM4006HD-10 |
XM4010HD-6.5 |
XM4010HD-10 |
|
RPM/V (KV) |
1000 | 800 | 720 | 470 |
|
Weight w/o wires(g) |
55 | 55 | 76 | 76 |

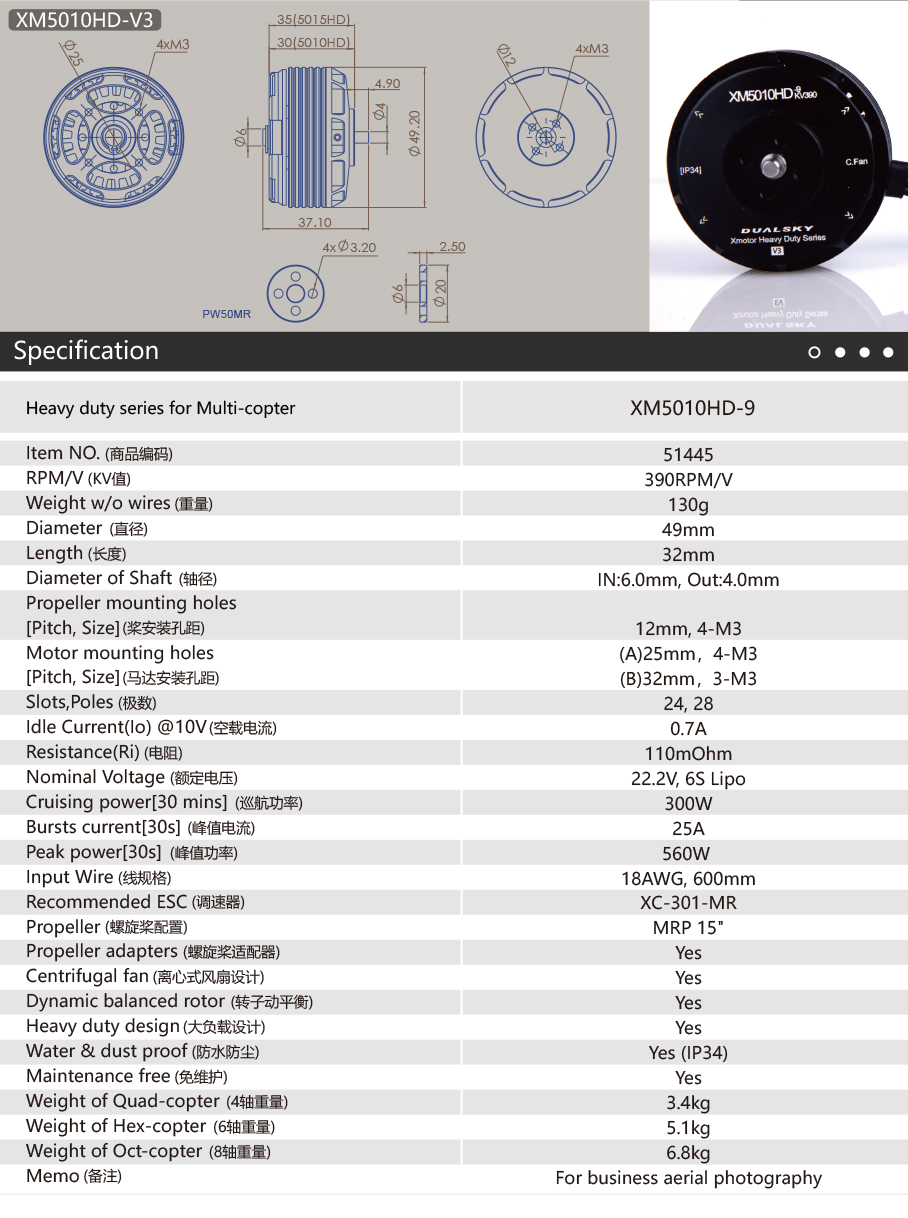

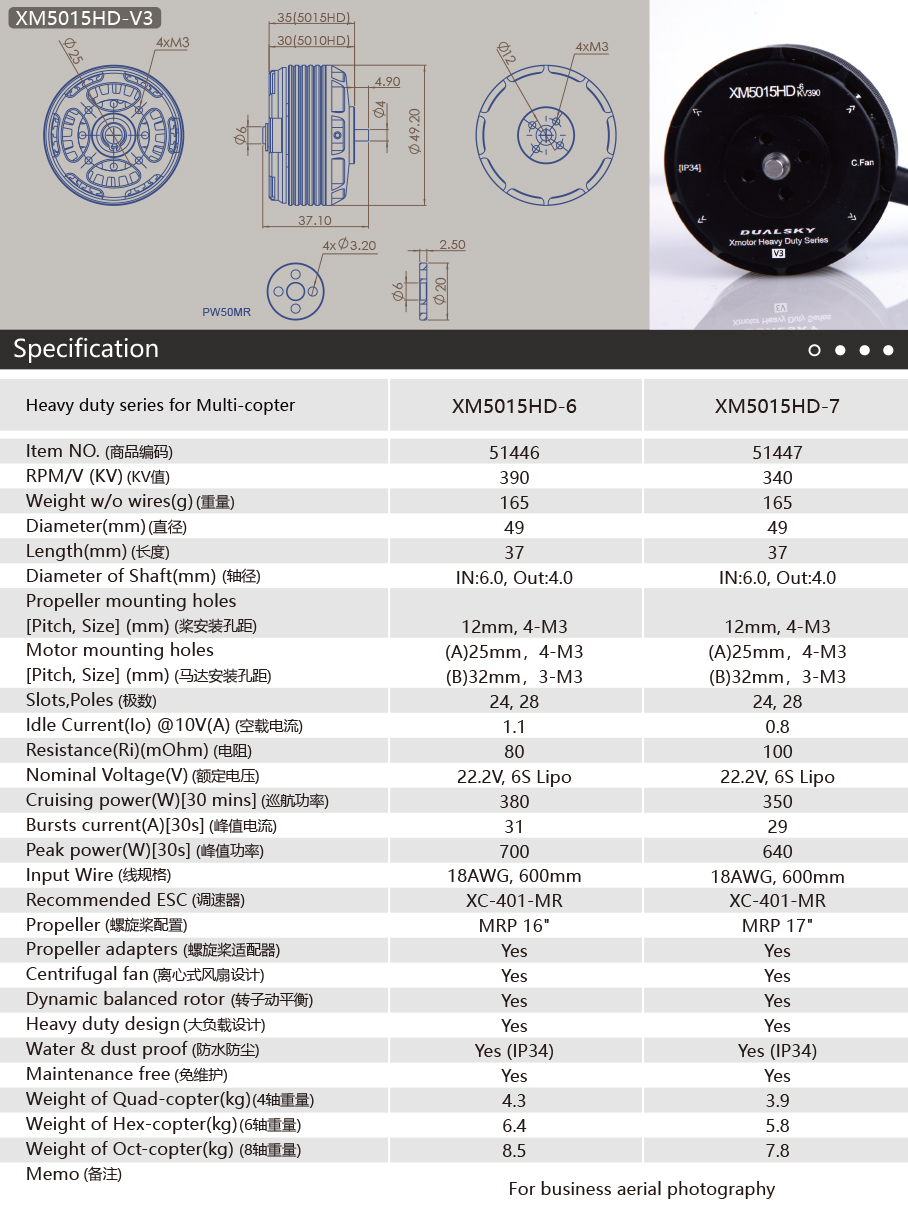

50mm HD3
|
Item NO. |
NO. 51445 |
NO. 51446 |
NO. 51447 |
|
Name |
XM5010HD-9 |
XM5015HD-6 |
XM5015HD-7 |
|
RPM/V (KV) |
390 | 390 | 340 |
|
Weight w/o wires(g) |
130 | 165 | 165 |
70mm HD3
|
Item NO. |
NO. 51448 |
NO. 51449 |
NO. 51450 |
NO. 51451 |
|
Name |
XM7010HD-7 |
XM7010HD-16 |
XM7015HD-5 |
XM7015HD-11 |
| RPM/V (KV) | 350 |
155 High Voltage |
330 |
150 High Voltage |
| Weight w/o wires(g) | 280 | 280 | 350 | 350 |

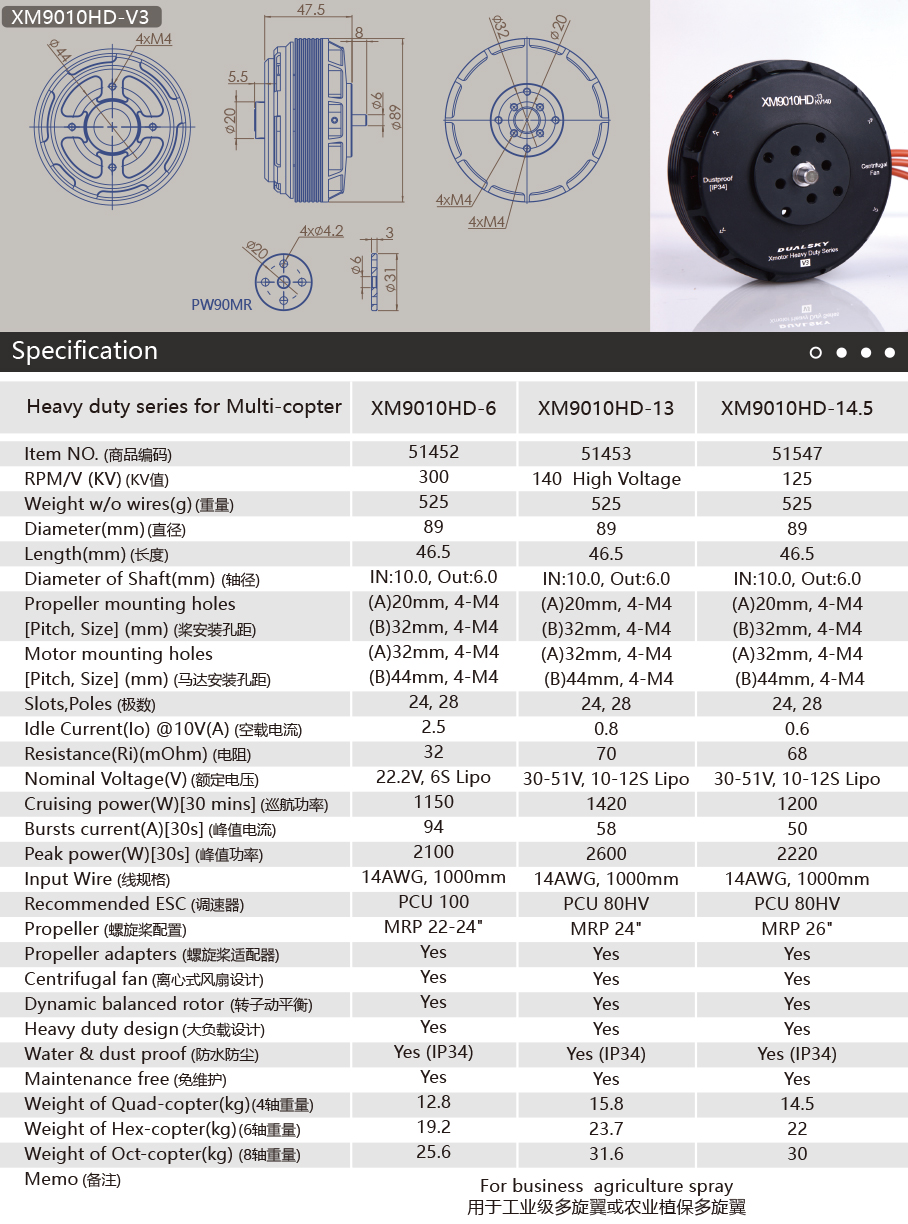

90mm HD3
|
Item No |
NO.51452 |
NO.51453 | NO.51457 | NO.51454 | NO.51455 |
| Name | XM9010HD-6 |
XM9010HD-13 |
XM9010HD-14.5 | XM9015HD-10 | XM9025HD-6 |
| RPM/V(KV) | 300 |
140 High Voltage |
125 | 120 High Voltage | 120 High Voltage |
| Weight w/o wires(g) | 525 | 525 | 525 | 665 | 1000 |
