Product Description：

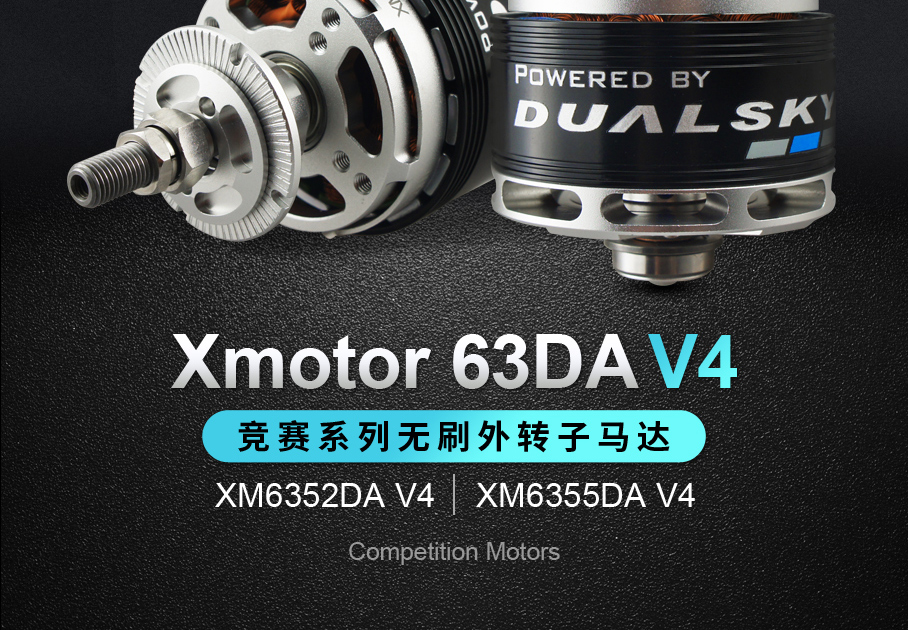

Xmotor 63DA V4 Features:

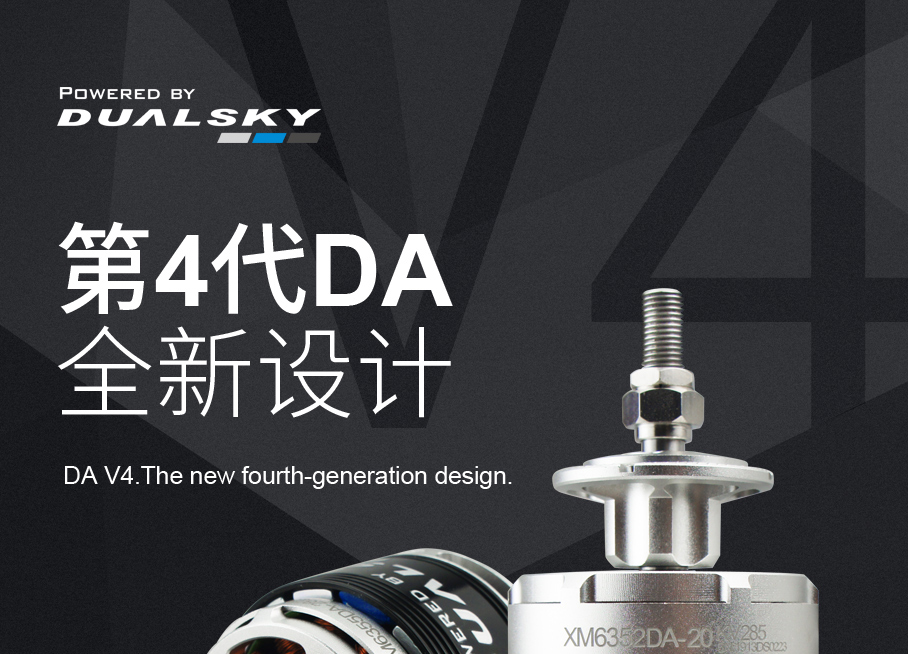

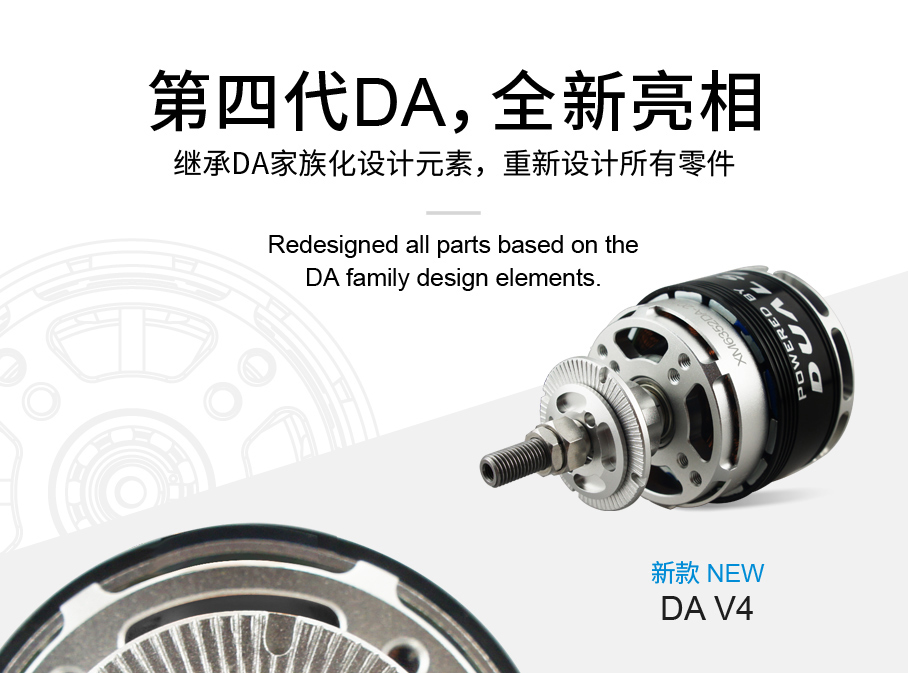

1. The new fourth-generation
design, redesigned all parts based on the DA family design elements.
2. XM6352DA V4, corresponding to
3000 watts class, suitable for lightweight F3A airplanes and up to 12kg gliders.
3. XM6355DA V4 output is up to
3700 watts. It is the standard power for F3A, for example: bipe F3A. It is also
suitable for gliders up to 20kg.

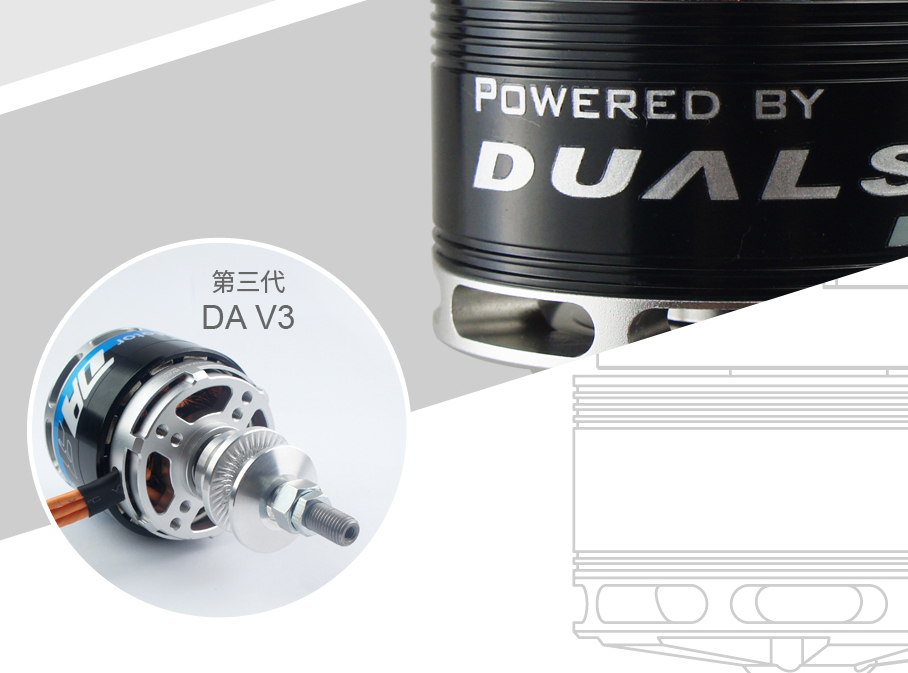

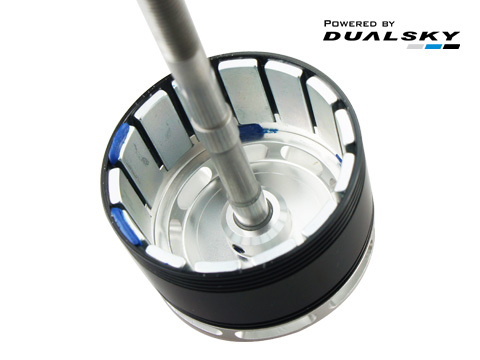

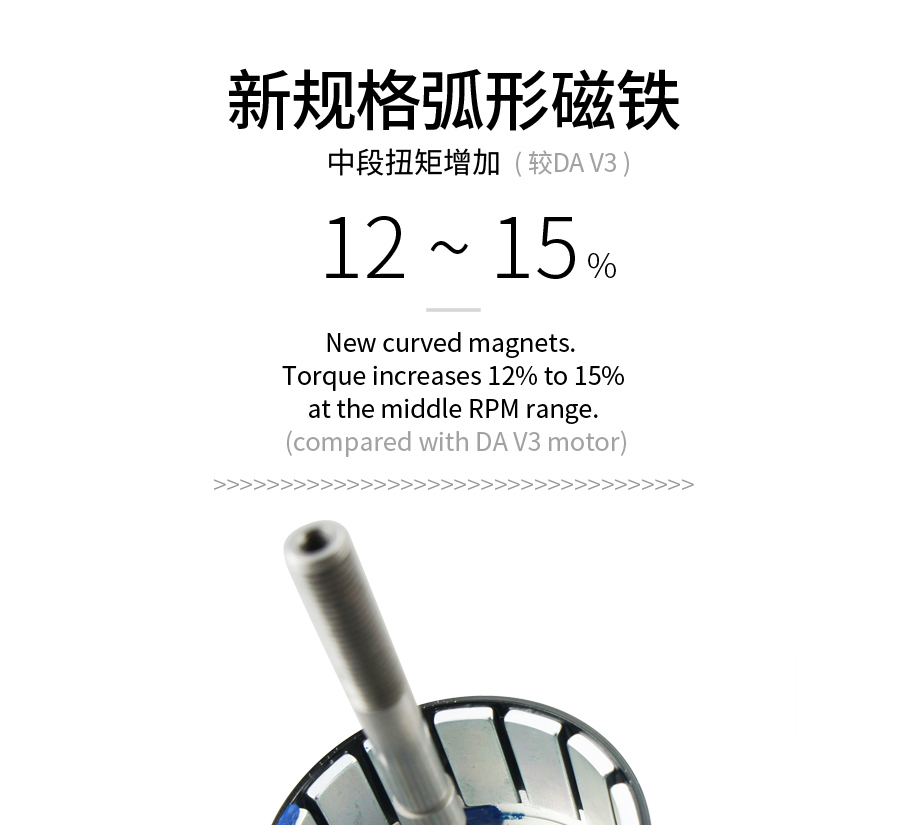

4. New curved magnets. Torque in
the middle RPM range is increased by 12% to 15% (compared to DA V3 motor).
5. Hollow shaft and lightweight
parts, the overall weight is reduced by 7% to 10%.

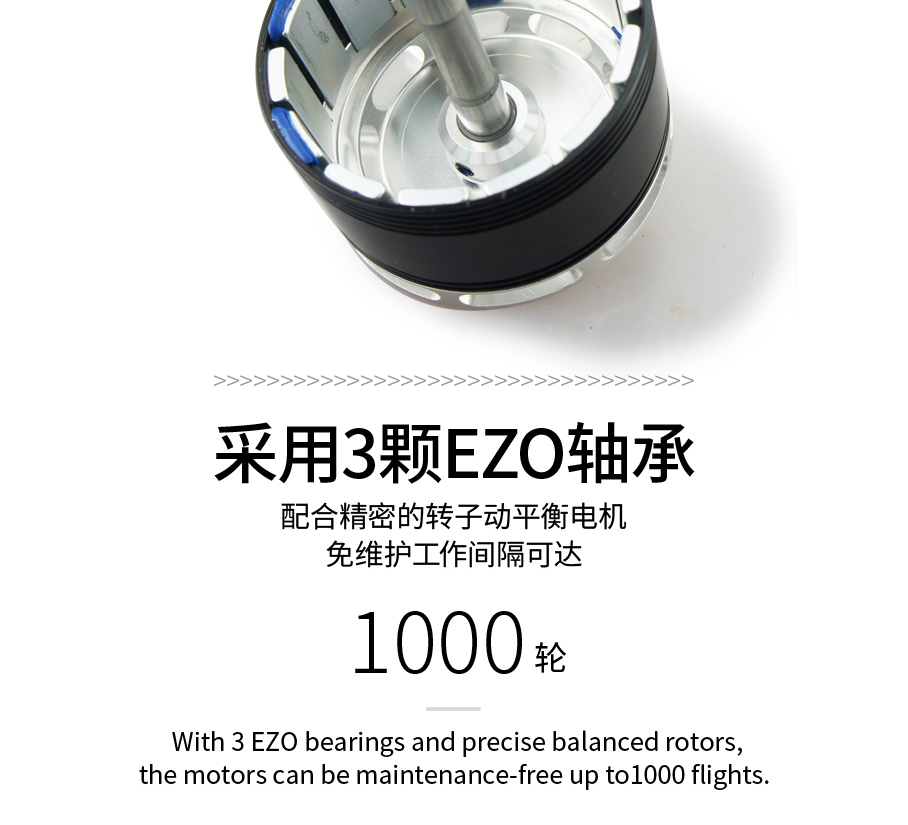

6. With 3 EZO bearings and
precise balanced rotors, the motors can be maintenance-free up to 1000 flights.

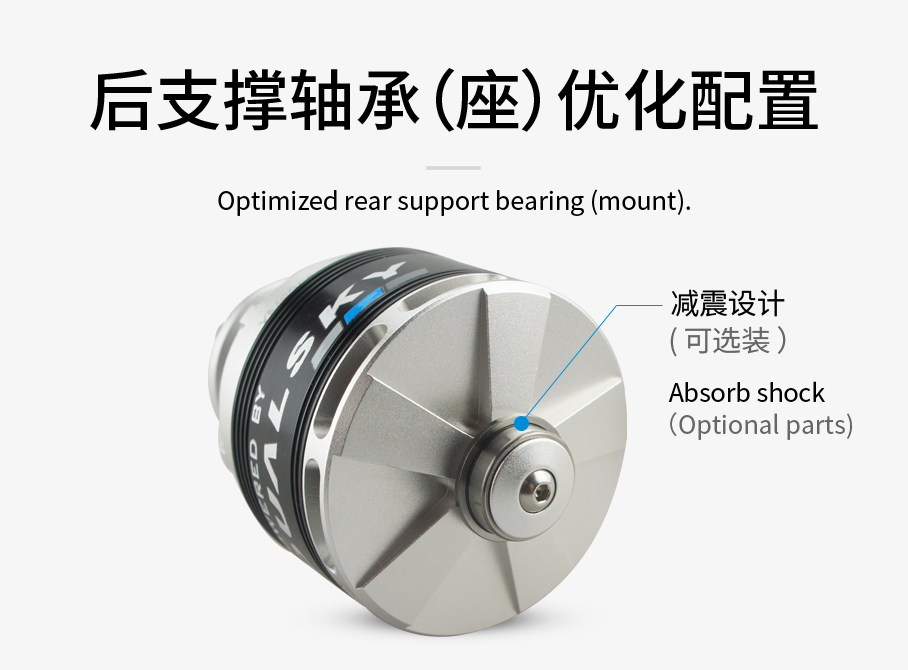

7. Optimized rear support bearing
(mount)

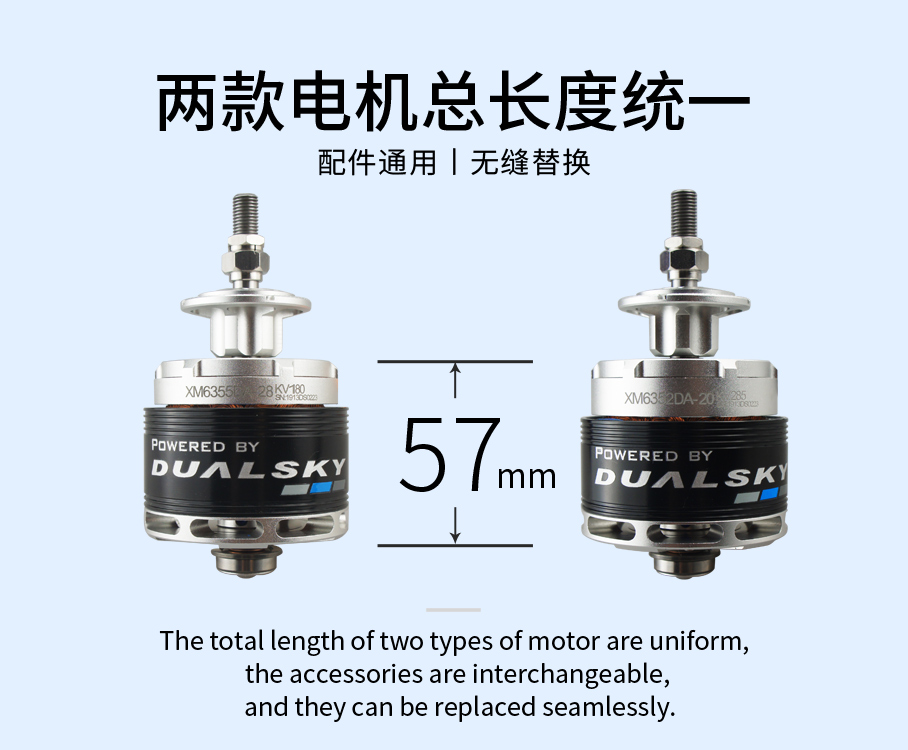

8. The total length of two types
of motor are uniform, the accessories are interchangeable, and they can be
replaced seamlessly.

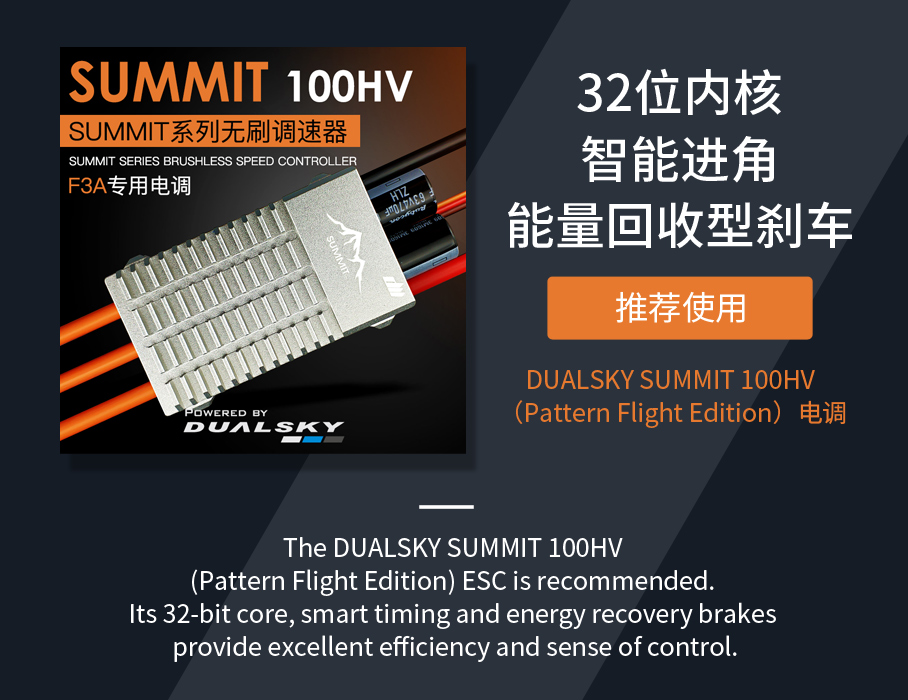

9. The DUALSKY SUMMIT 100HV
(Pattern Flight Edition) ESC is recommended. Its 32-bit core, smart timing and
energy recovery brakes provide excellent efficiency and sense of control.
|
Item NO. 貨號(hào) |
型號(hào) NAME |
KV (RPM/V) |
Stator（DxL） |
Weight (g) |
Ri (mOhm) |
Io @10V (A) |
Voltage (V) |
Peak Current (A) |
Peak Power (W) |
Torque (N*M) |
| DA4 | ||||||||||
| 52027 | XM6352DA-16 | 360 | 5322 | 490 | 16.5 | 1.50 | 24 | 98 | 2352 | 3.25 |
| 52028 | XM6352DA-20 | 285 | 5322 | 490 | 26.8 | 1.10 | 32 | 85 | 2720 | 3.56 |
| 52029 | XM6352DA-24 | 240 | 5322 | 490 | 36.0 | 0.80 | 32 | 80 | 2560 | 3.98 |
| 52030 | XM6352DA-26 | 220 | 5322 | 490 | 43.0 | 0.70 | 40 | 75 | 3000 | 4.07 |
| 52031 | XM6355DA-18 | 280 | 5325 | 530 | 21.5 | 1.15 | 32 | 97 | 3104 | 4.14 |
| 52032 | XM6355DA-21 | 245 | 5325 | 530 | 27.5 | 0.90 | 32 | 92 | 2944 | 4.48 |
| 52033 | XM6355DA-25 | 205 | 5325 | 530 | 39.0 | 0.72 | 40 | 87 | 3480 | 5.07 |
| 52034 | XM6355DA-28 | 180 | 5325 | 530 | 51.0 | 0.60 | 48 | 78 | 3744 | 5.17 |
