Designed for hign-end multi-rotor and UAV Based on the mature TE-MR, all parts are newly designed 2nd generation stator Detachable stator, easier to maintain Imported over-sized ball bearing Short shaft design
Product Description：
brushless motor, specially
designed for high-end multi-rotor and UAV systems.

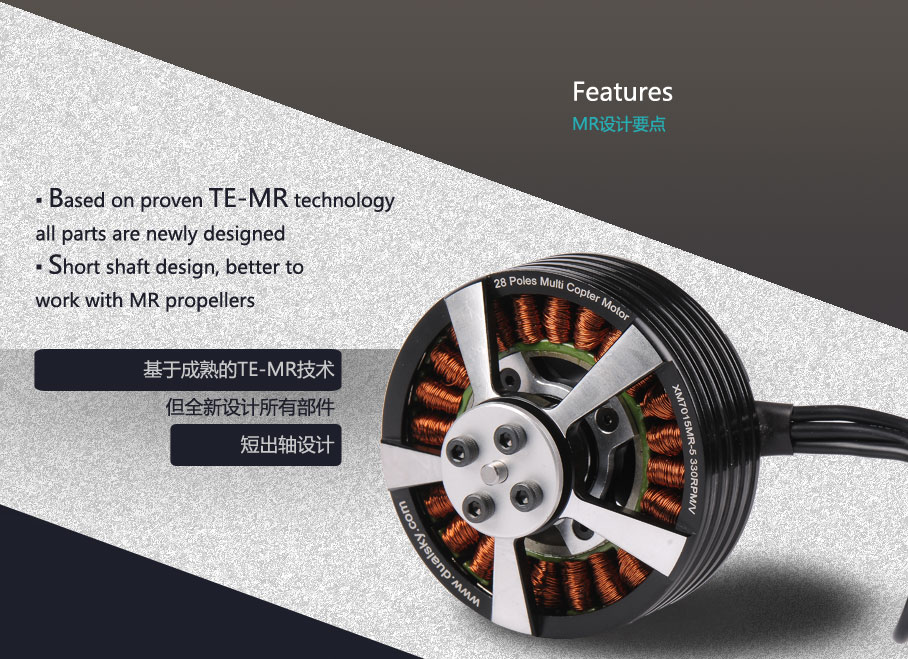

Based on the mature TE-MR technology and all parts are newly designed

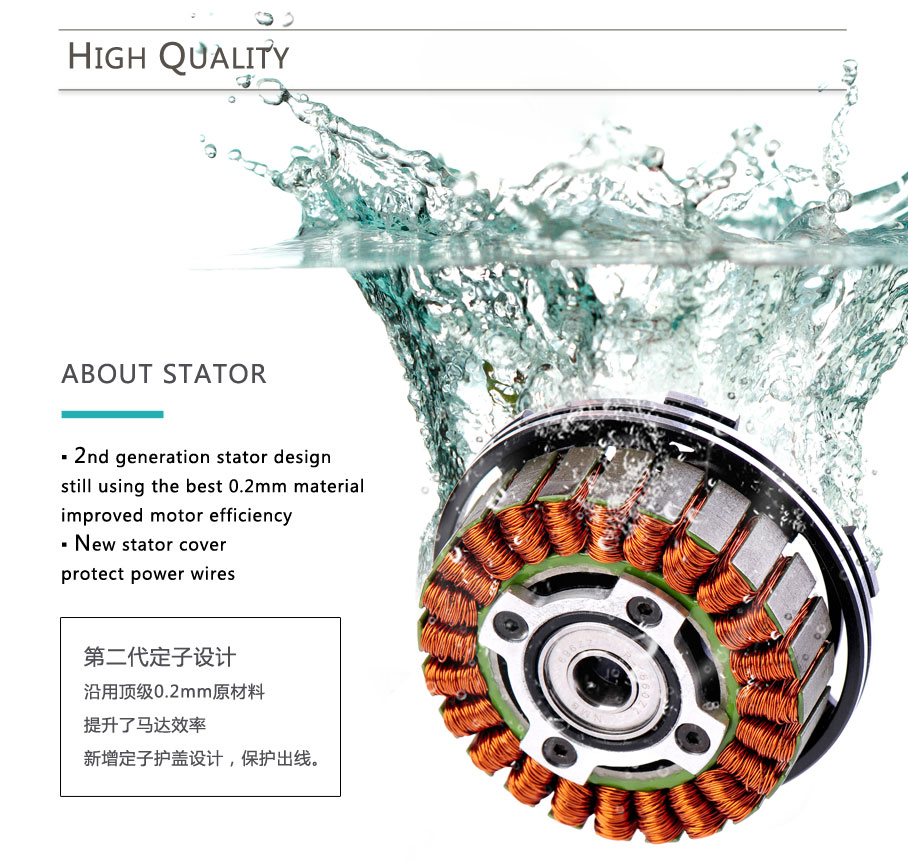

2nd generation stator, using the best
Lower IR winding to decrease the temperature
remarkably when long-time working

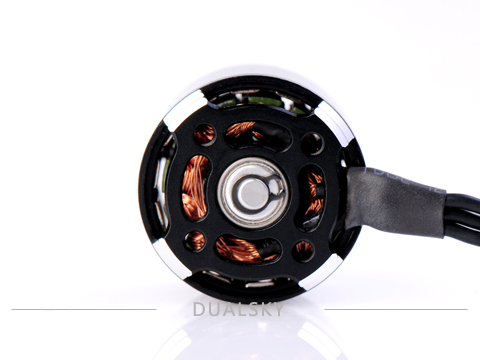

Detachable
stator, easier to maintain
Imported over-sized ball
bearing, lower noise
and ultra-long working life
Short shaft design

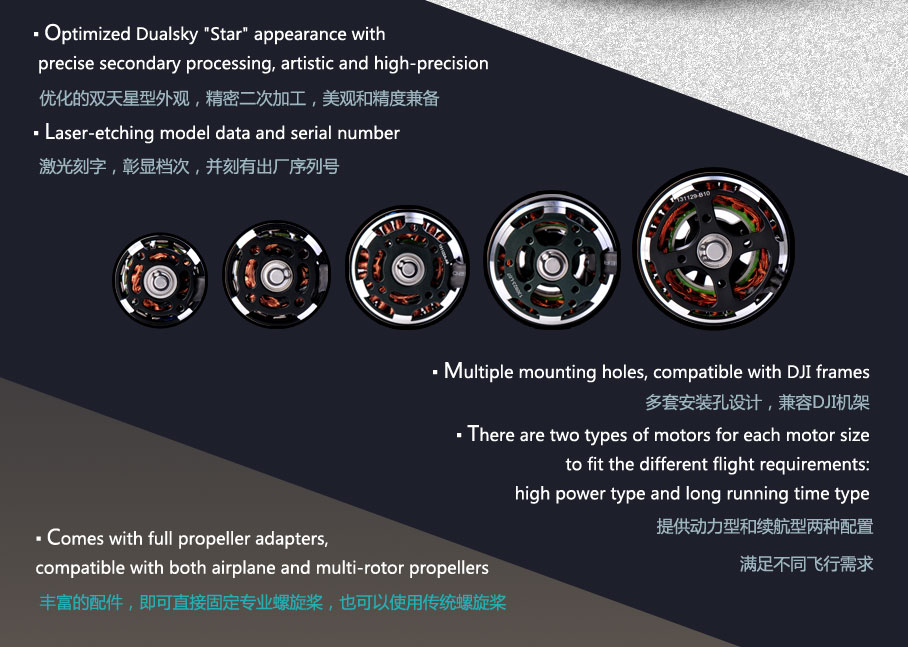

Optimized Dualsky
"Star" appearance with precise processing, both artistic and
high-precision

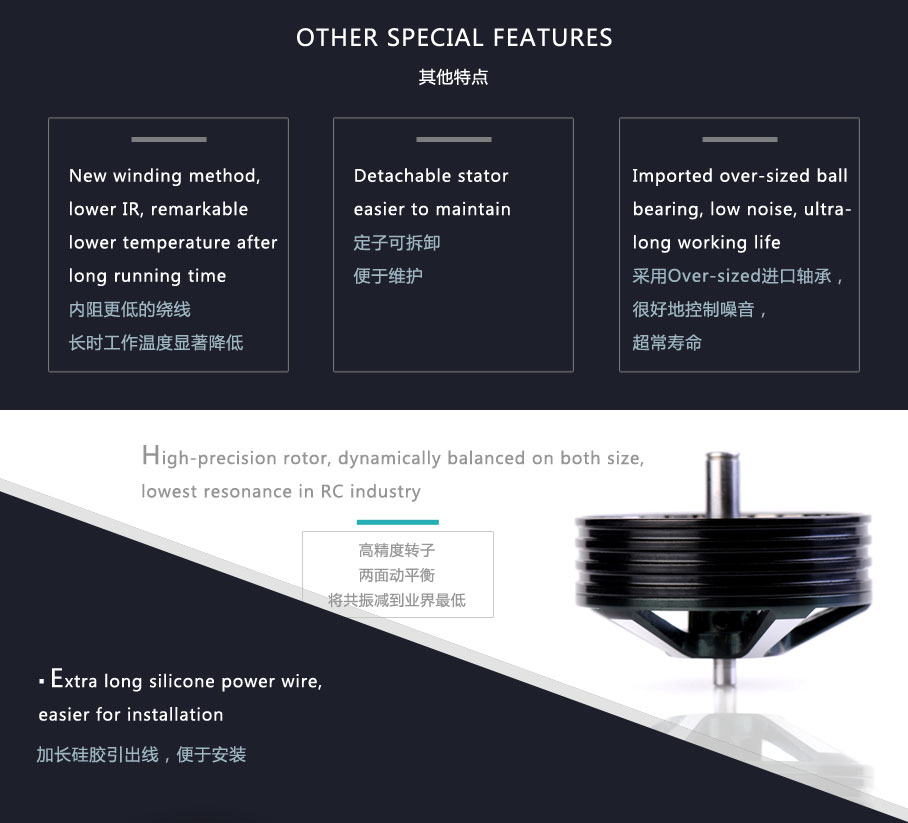

High-precision rotor, dynamically balanced on
both sides, lowest resonance in RC industry
New stator cover to protect power wires
Multiple mounting holes, compatible with DJI
frames
Lengthen silicon power wire, easy to install
Laser-etching model data and factory serial
number

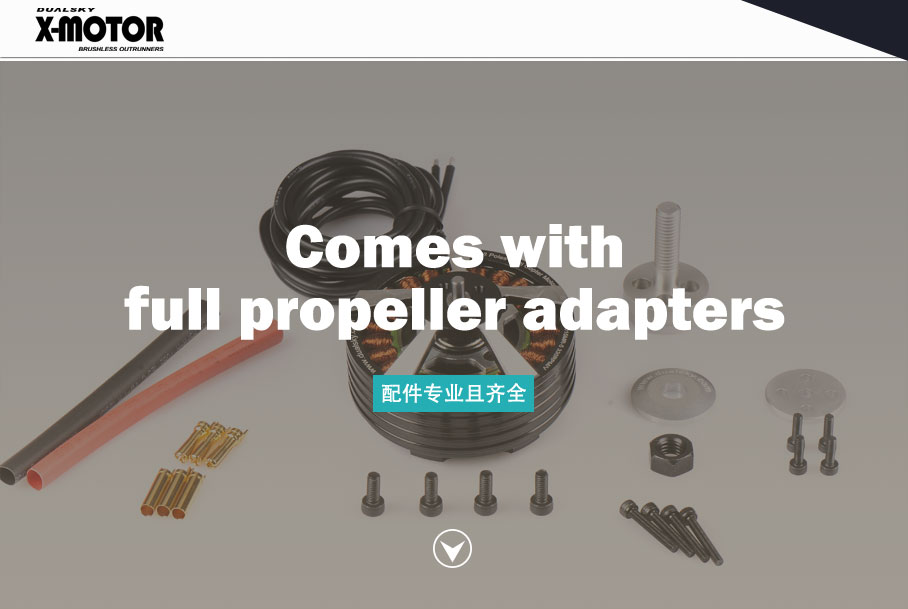

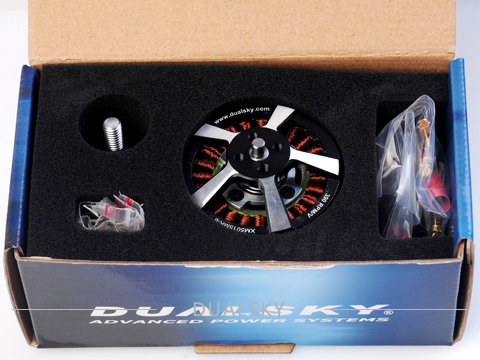

Comes with propeller adapters, can install
traditional and professional CF propellers
There are two RPM for each motor size to fit the
different flight requirements: high power type and long flight time type

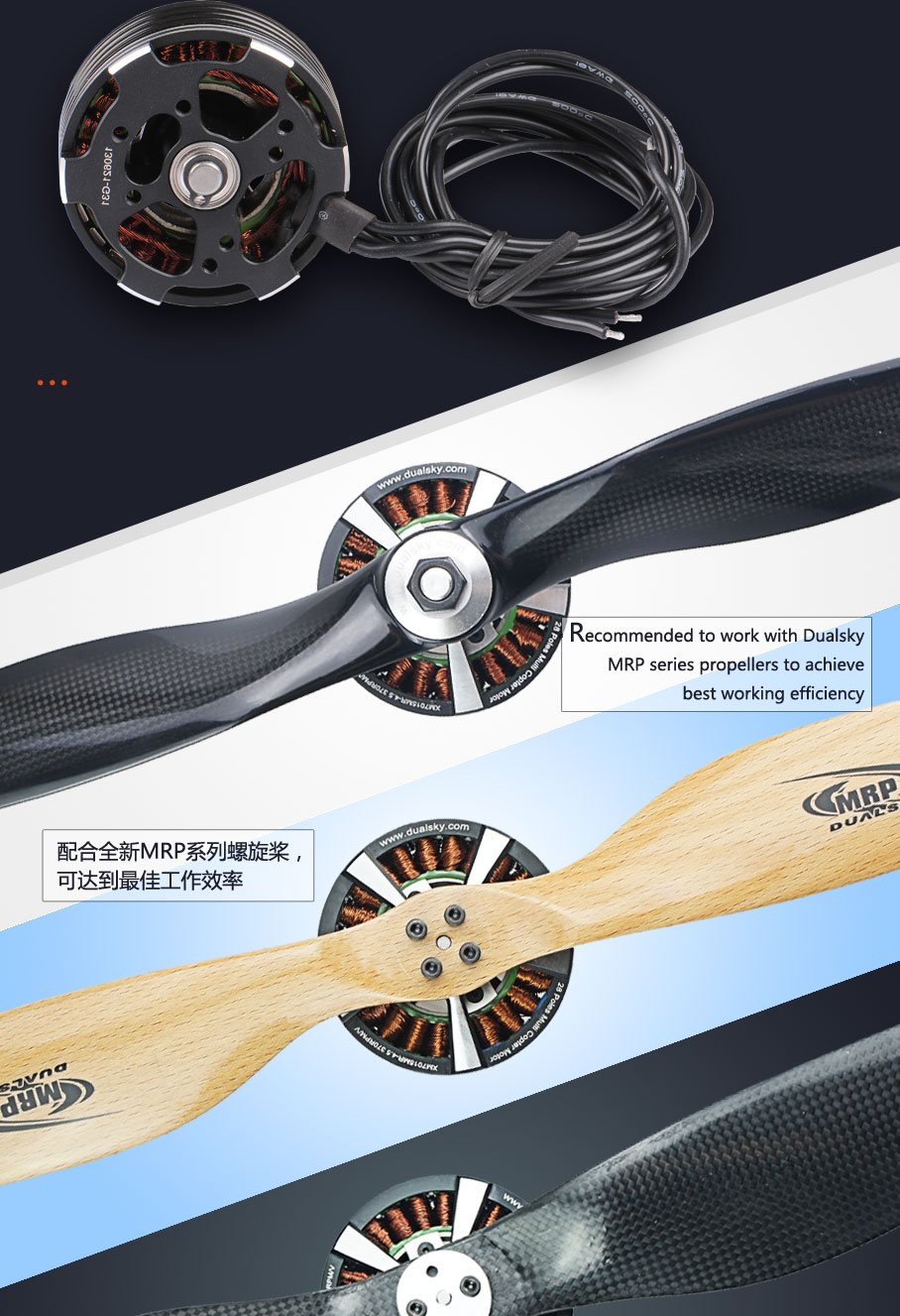

Recommended to work with Dualsky MRP series
propellers to achieve best working efficiency

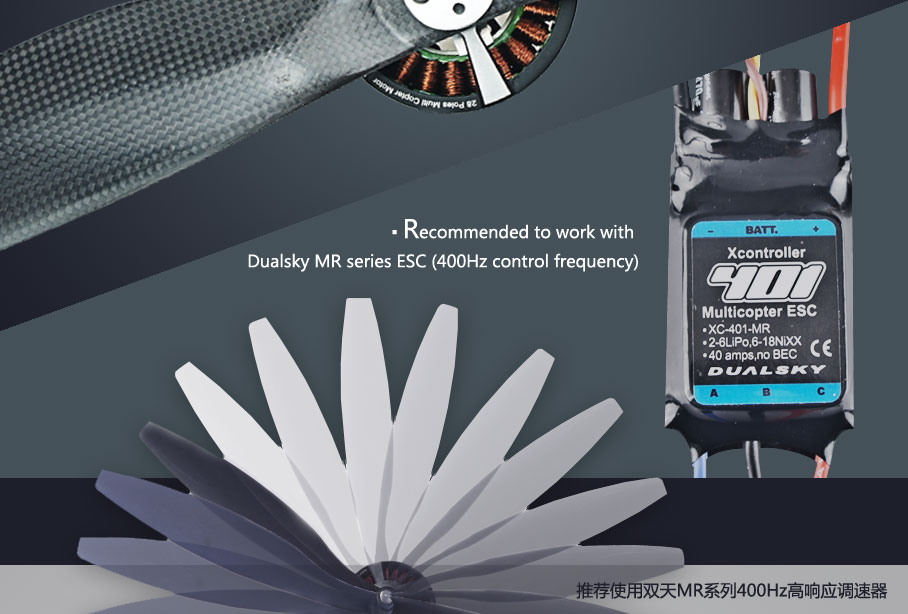

Recommended to work with Dualsky MR series ESC (up to600Hz control frequency)

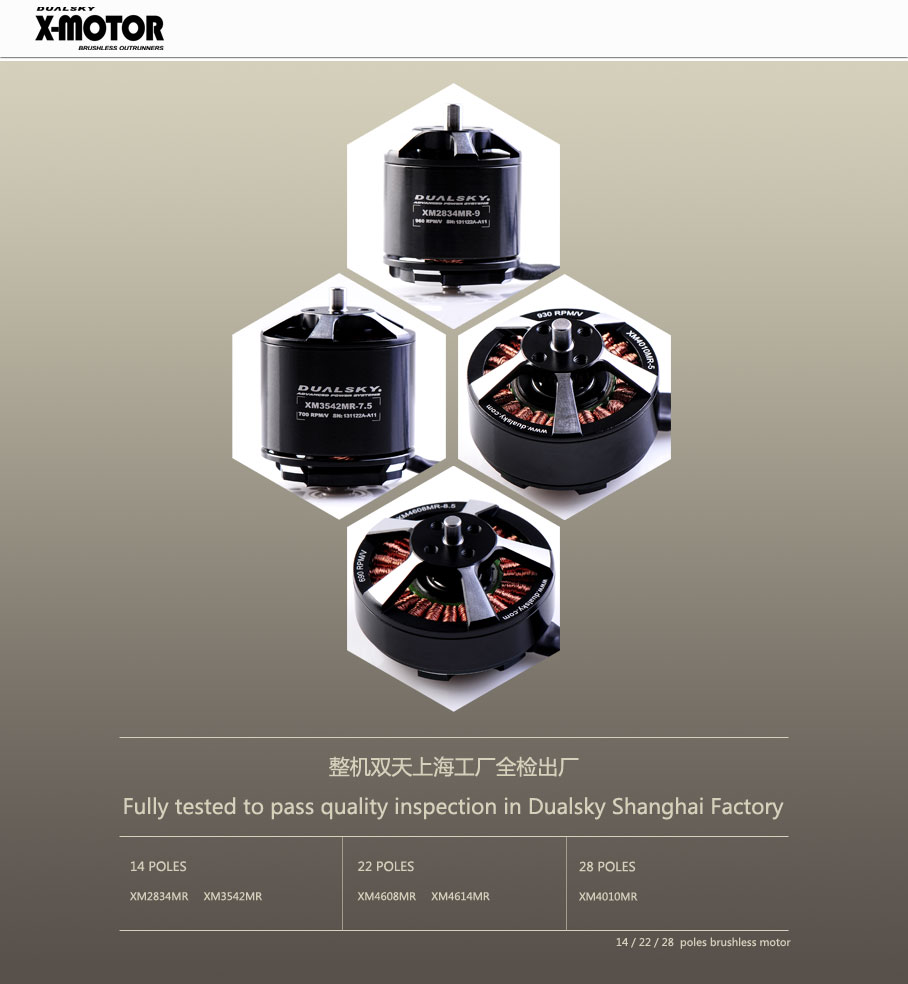

Item Name：Xmotor MR series brushless outrunners
Item No：

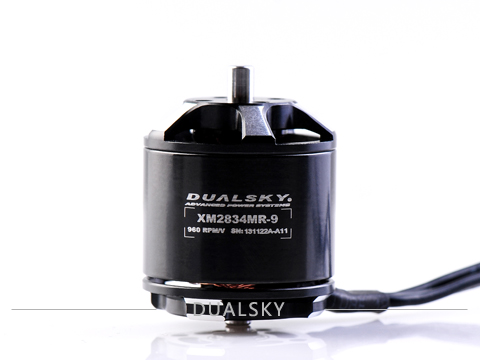

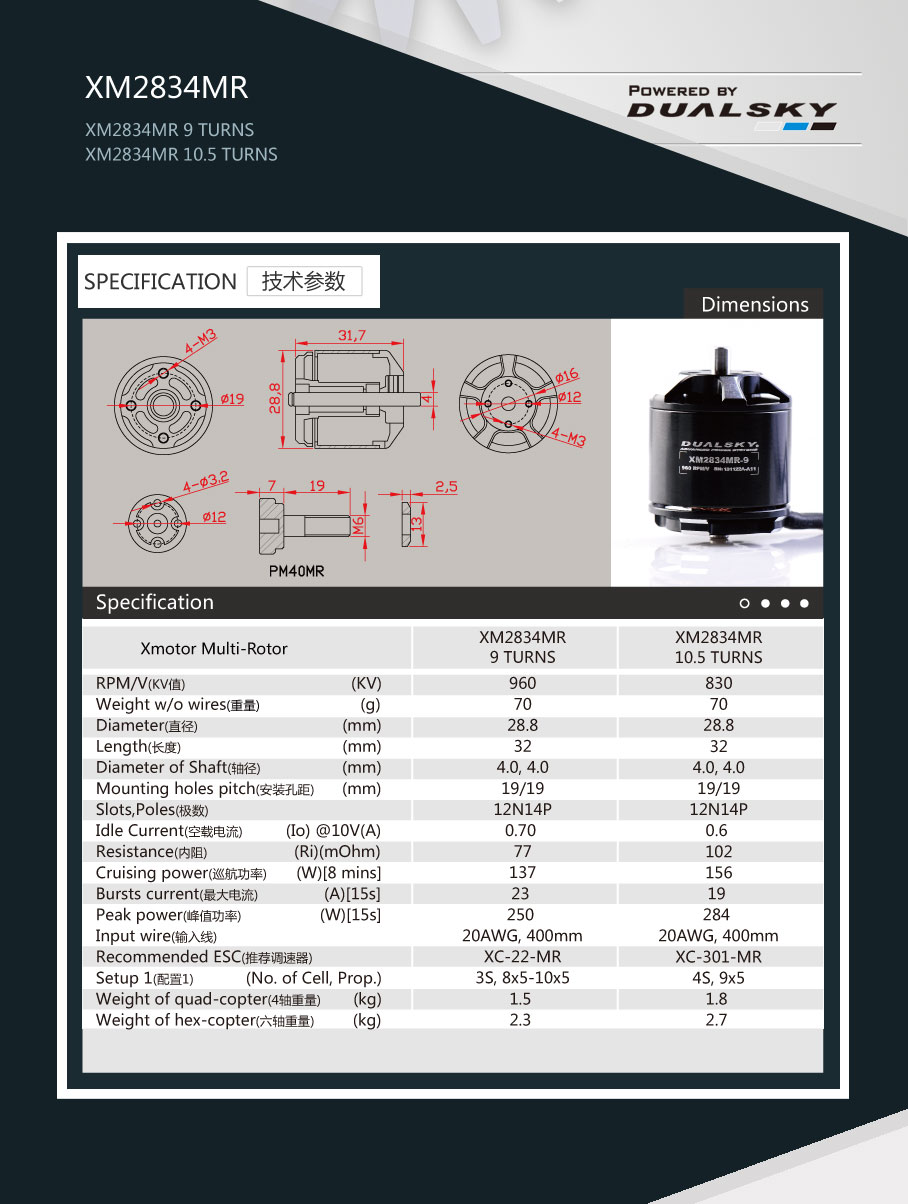

| 51215 | XM2834MR-9, high efficiency, 14 poles | 960 RPM/V | 70g |
| 51216 | XM2834MR-10.5, high efficiency, 14 poles | 830 RPM/V | 70g |

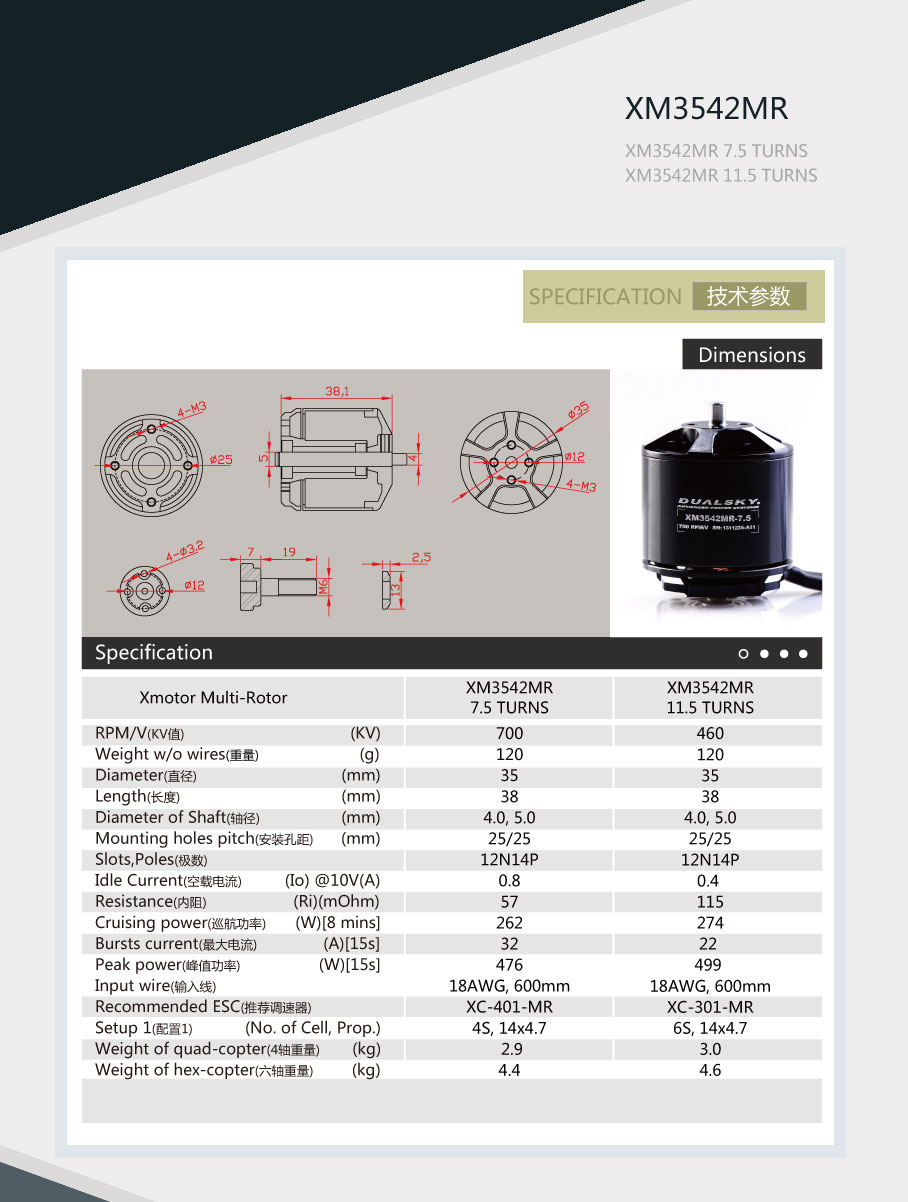

| 51217 | XM3542MR-7.5, high efficiency, 14 poles | 700 RPM/V | 120g |
| 51218 | XM3542MR-11.5, high efficiency, 14 poles | 460 RPM/V | 120g |

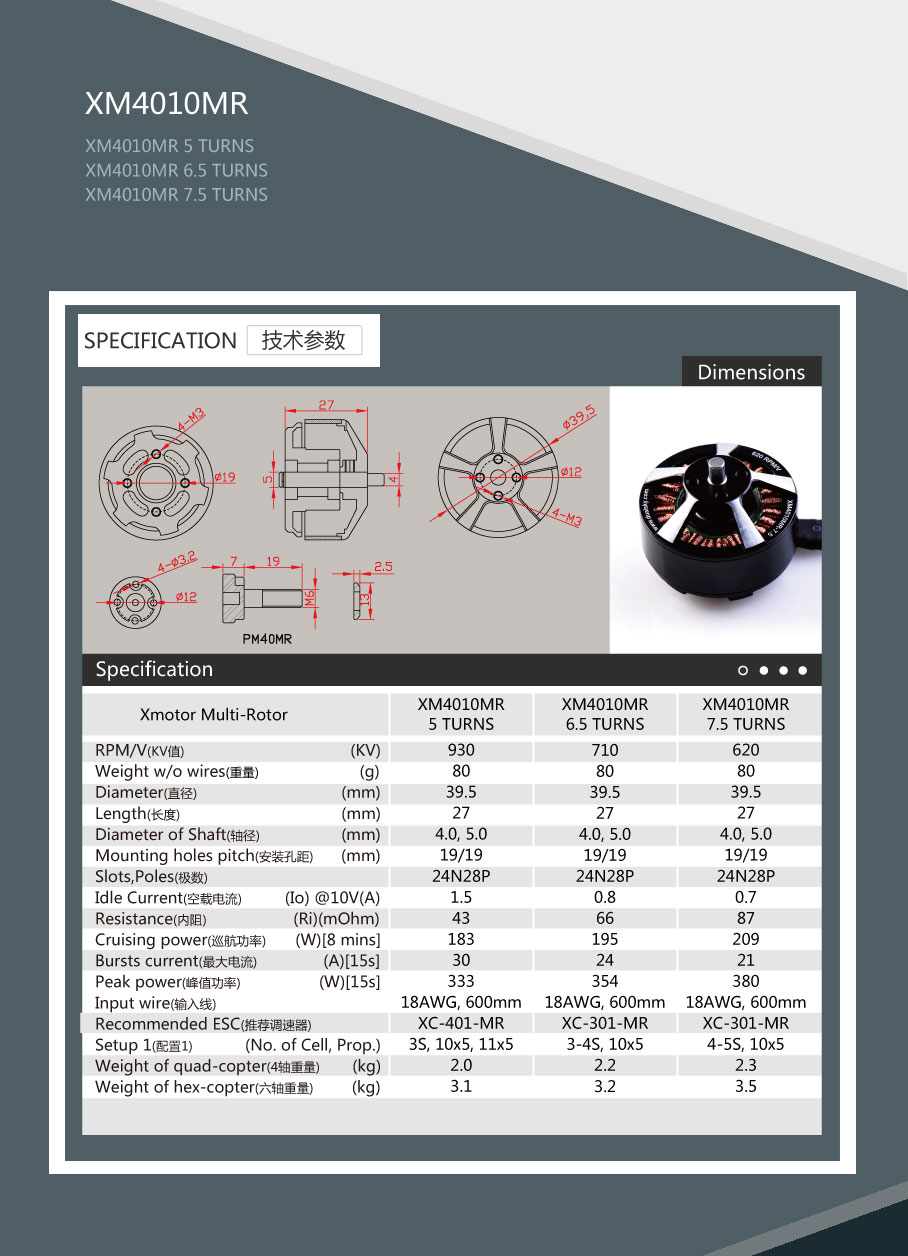

| 51219 | XM4010MR-5, evoluiton, 28 poles | 930 RPM/V | 80g |
| 51220 | XM4010MR-6.5, evolution, 28 poles | 710 RPM/V | 80g |
| 51221 | XM4010MR-7.5, evolution, 28 poles | 620 RPM/V | 80g |

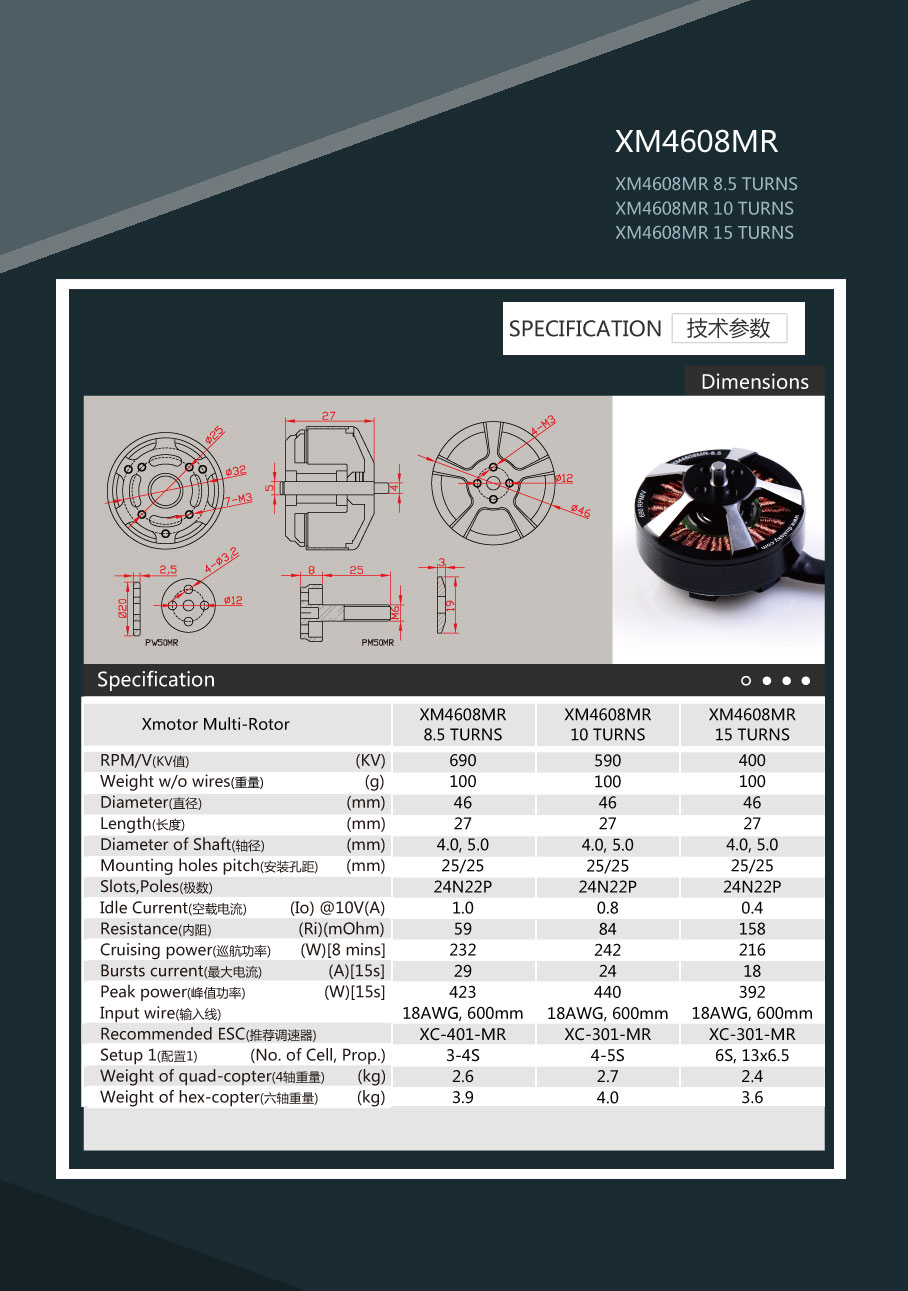

| 51222 | XM4608MR-8.5, high efficiency, 22 poles | 690 RPM/V | 100g |
| 51223 | XM4608MR-10, high efficiency, 22 poles | 590 RPM/V | 100g |
| 51224 | XM4608MR-15, high efficiency, 22 poles | 400 RPM/V | 100g |
| 51225 | XM4614MR-9, evolution for S800 | 380 RPM/V | 145g |
