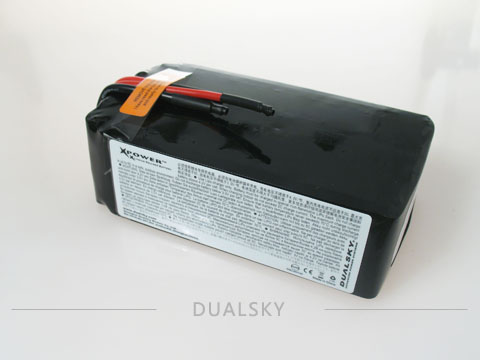

                                Long-endurance battery for commercial UAV
Optimized the ratio between energy and weight, discharge 8C -20C
Produce by Dualsky new 6th Generation battery technology
Optimized the discharging characteristics in the low temperature and high altitude environment
Ensure 600+ times charge and discharge cycles
16000mAh 6s is suitable for Octa rotor with SLR aerial photograph
Product Description:
For UAV special
	Long-endurance battery for commercial UAV
Optimized the ratio between energy and weight, discharge 8C -20C
Produce by Dualsky new 6th Generation battery technology
Optimized the discharging characteristics in the low temperature and high altitude environment
Ensure 600+ times charge and discharge cycles
16000mAh 6s is suitable for Octa rotor with SLR aerial photograph
------------------------------------------------------

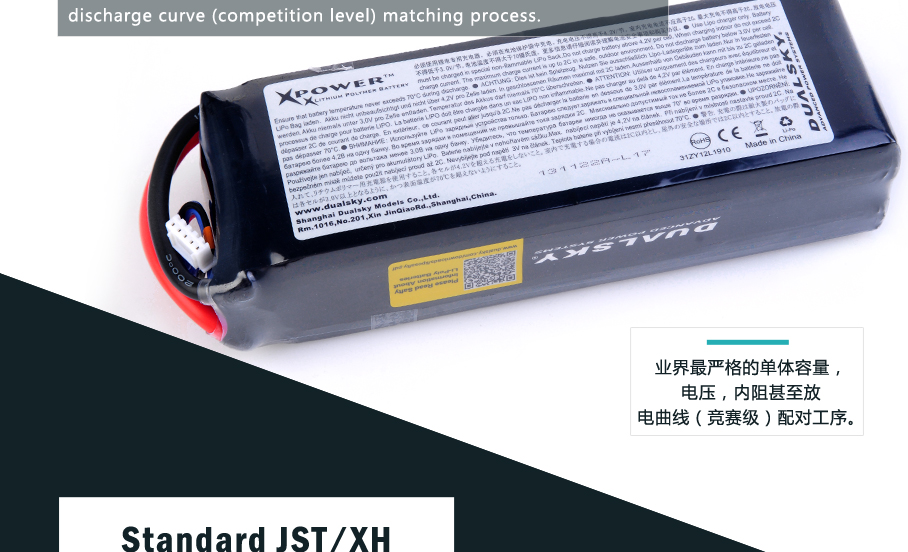

Dualsky 5th Xpower battery technology
4C charge and 25C discharge

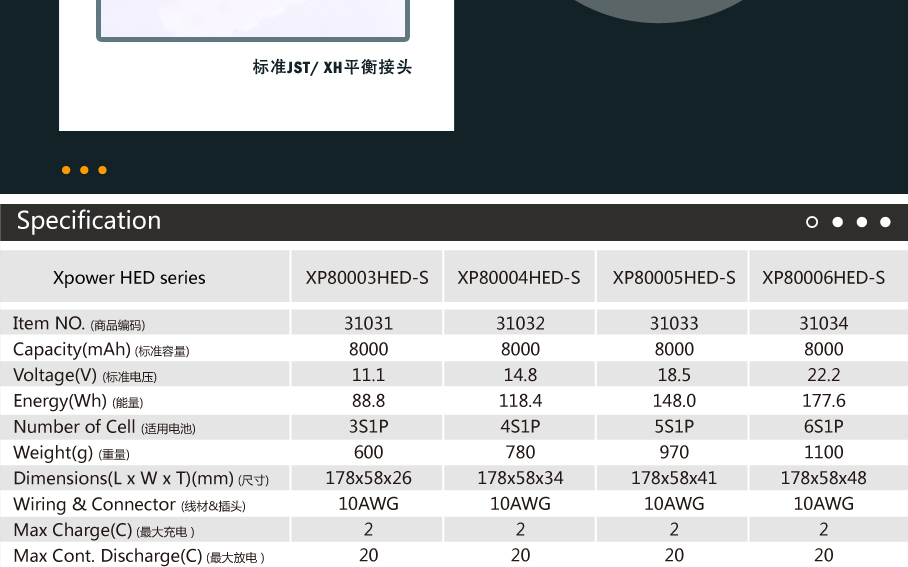

                        Item Name:G5 Xpower HED series -- High Energy Density LiPo packs, 25C/4C
Item No:| Item NO. | Description |
				Capacity (mAh)  |

				Voltage (V)  |

				Energy (Wh)  |
			Number of Cell |
				Weight (g)*  |

				Dimensions L x W x T (mm)  |

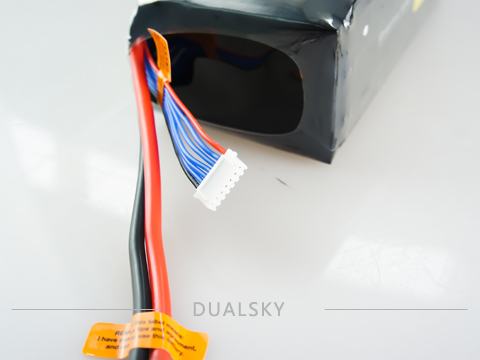

			Wiring & Connector |
				Max  Charge  |

				Max Cont.  Discharge  |

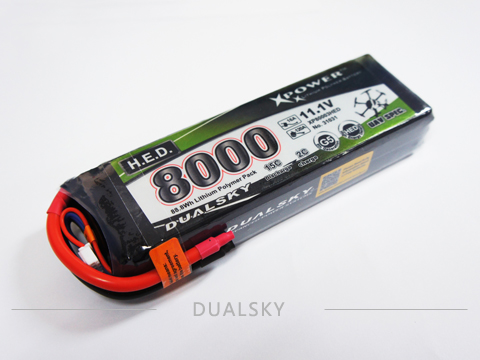

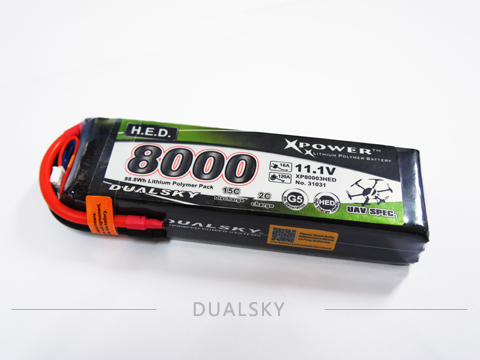

| 31031 | XP80003HED-S | 8000 | 11.1 | 88.8 | 3S1P | 600 | 178x58x26 | 10AWG | 2C | 20C |
| 31032 | XP80004HED-S | 8000 | 14.8 | 118.4 | 4S1P | 780 | 178x58x34 | 10AWG | 2C | 20C |
| 31033 | XP80005HED-S | 8000 | 18.5 | 148.0 | 5S1P | 970 | 178x58x41 | 10AWG | 2C | 20C |
| 31034 | XP80006HED-S | 8000 | 22.2 | 177.6 | 6S1P | 1100 | 178x58x48 | 10AWG | 2C | 20C |

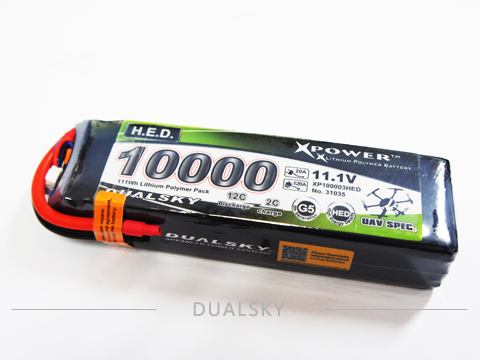

| 31263 | XP100003HED-S | 10000 | 11.1 | 111.0 | 3S1P | 680 | 175x61x30 | 10AWG | 2C | 20C |
| 31264 | XP100004HED-S | 10000 | 14.8 | 148.0 | 4S1P | 900 | 175x62x40 | 10AWG | 2C | 20C |
| 31265 | XP100005HED-S | 10000 | 18.5 | 185.0 | 5S1P | 1120 | 175x62x50 | 10AWG | 2C | 20C |
| 31266 | XP100006HED-S | 10000 | 22.2 | 222.0 | 6S1P | 1340 | 175x62x60 | 10AWG | 2C | 20C |
| 31283 | XP160003HED-S, | 16000 | 11.1 | 177.6 | 3S1P | 1050g | 178×86×34 | 10AWG | 2C | 20C |
| 31284 | XP160004HED-S, | 16000 | 14.8 | 236.8 | 4S1P | 1380g | 178×86×45 | 10AWG | 2C | 20C |
| 31285 | XP160005HED-S, | 16000 | 18.5 | 296.0 | 5S1P | 1700g | 178×86×56 | 10AWG | 2C | 20C |
| 31286 | XP160006HED-S, , high power | 16000 | 22.2 | 355.2 | 6S1P | 2050g | 178×86×67 | 10AWG | 2C | 20C |
