Product Description：

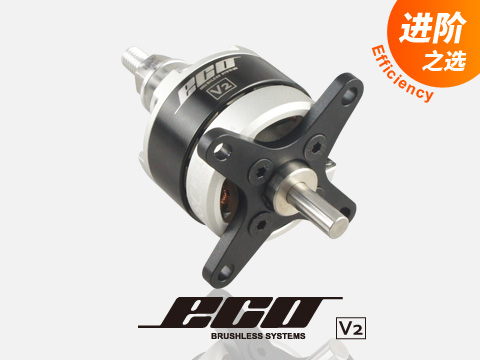

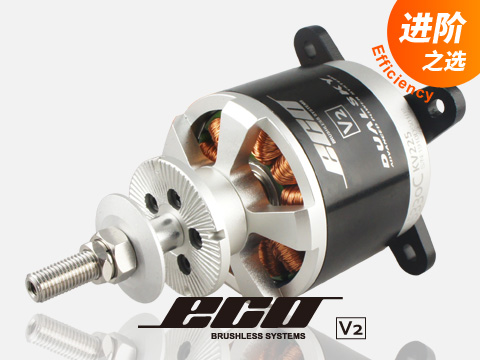

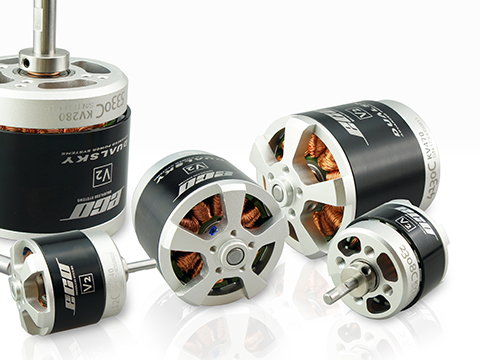

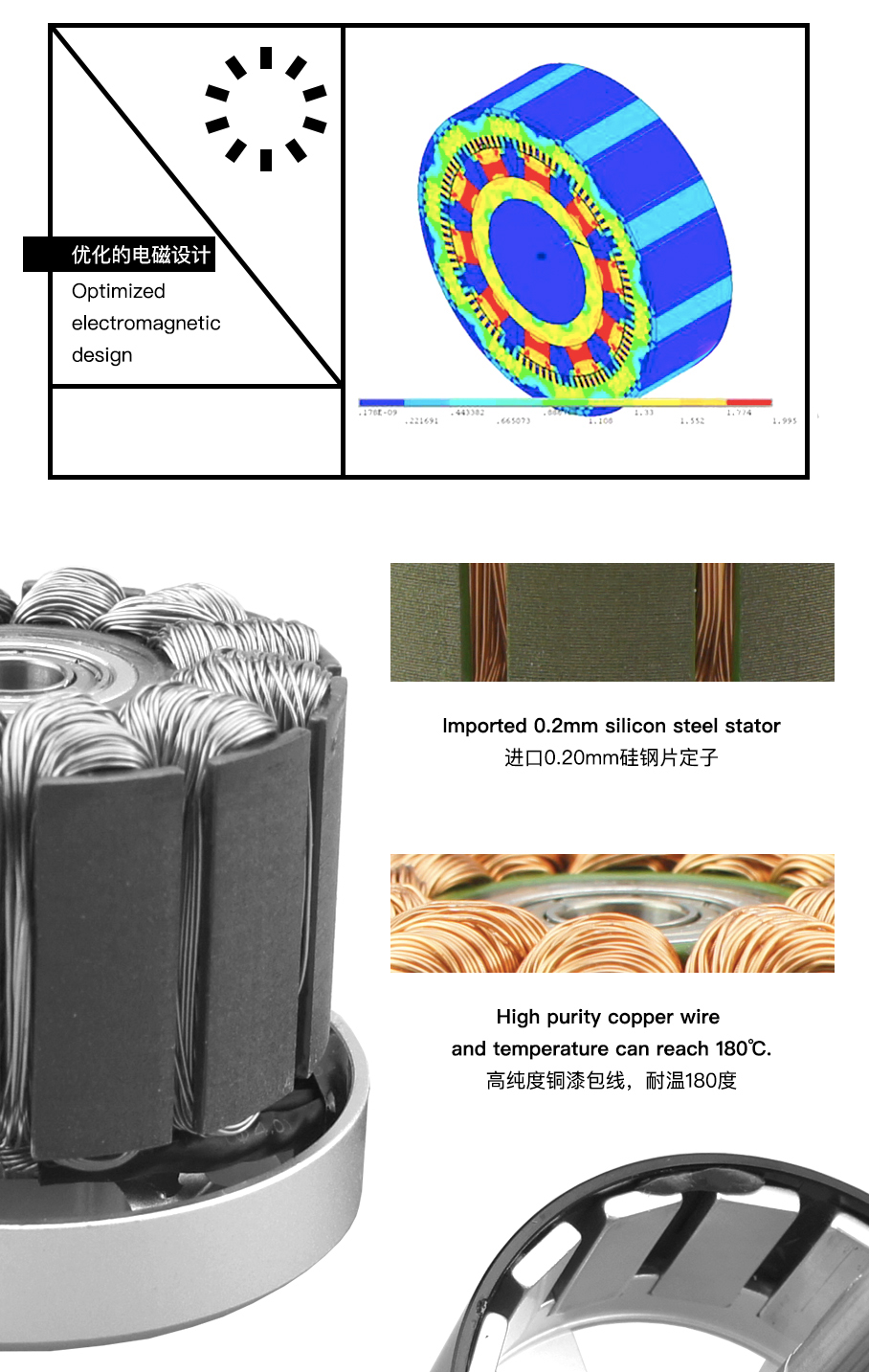

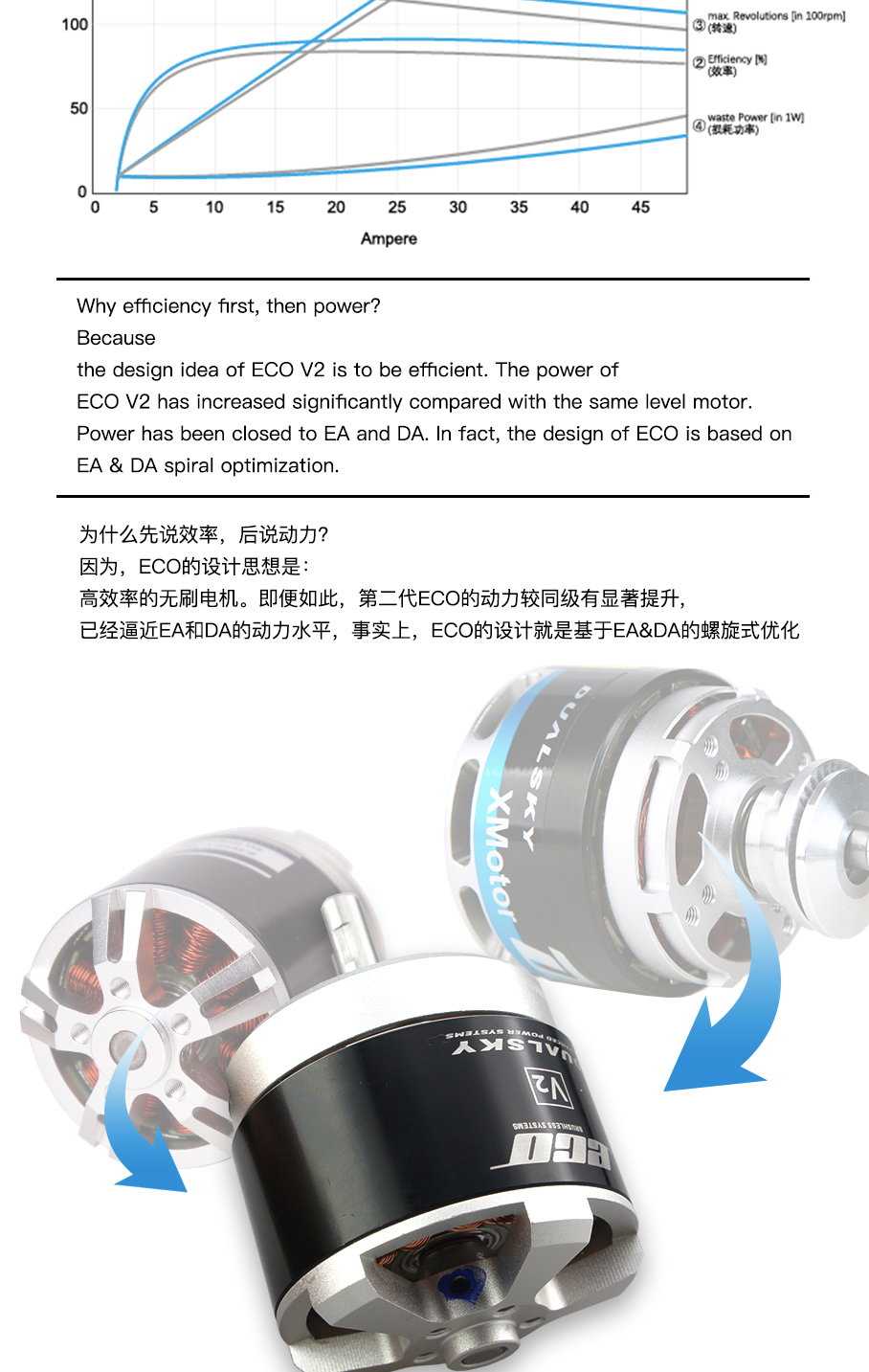

ECO V2 has made great improvements in many respects. It brought new electromagnetic design, more competitive performance and efficiency, long-time endurance and water-proof. This is new ECO V2.

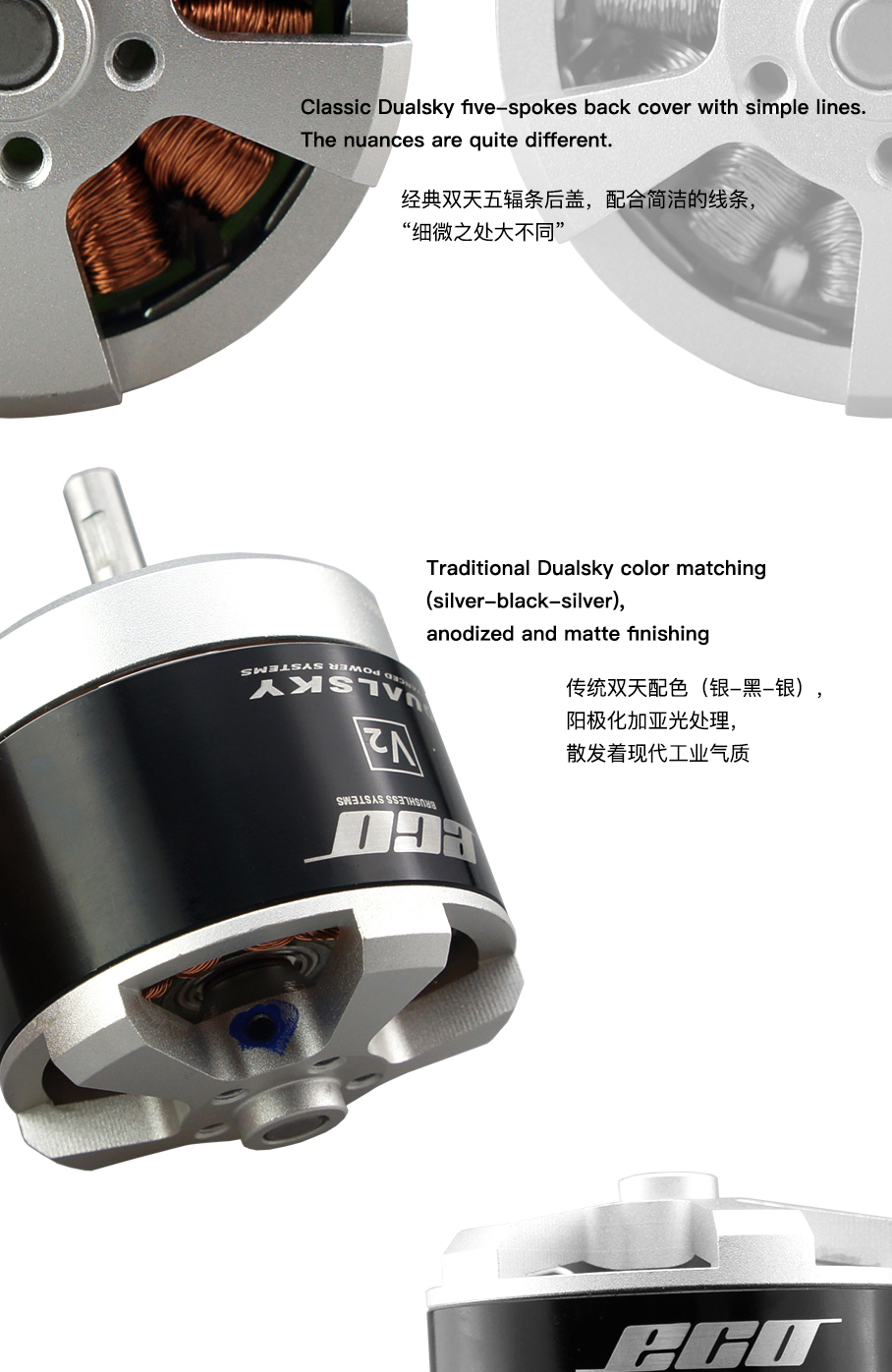

1.Classic Dualsky five-spokes back cover with simple lines. The nuances are quite different.
2.Traditional Dualsky color matching (silver-black-sliver), anodized and matte finishing

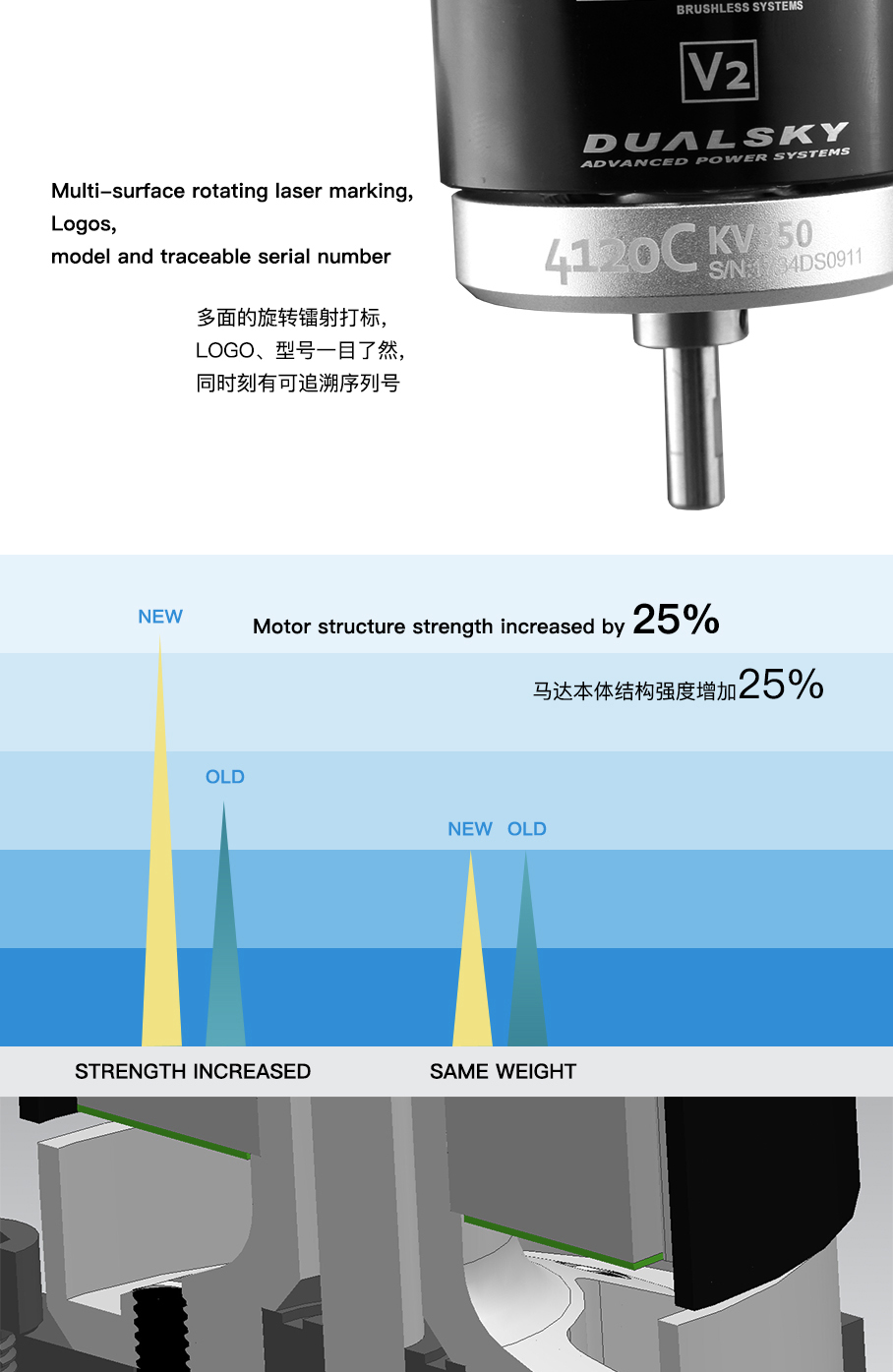

3.Multi-surface rotating laser marking, Logos, model and traceable serial number
4.Motor structure strength increased by 25%

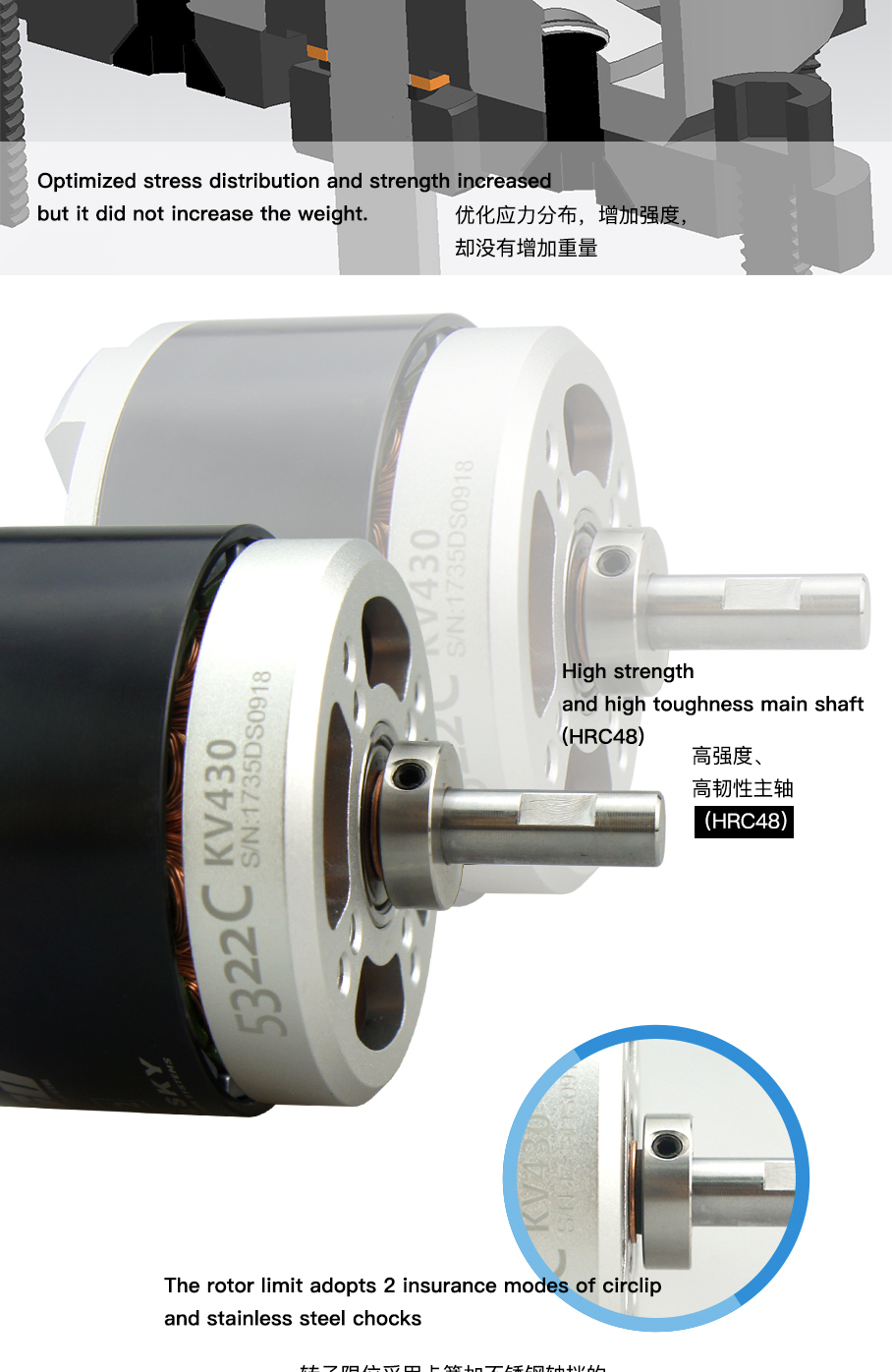

5.Optimized stress distribution and strength increased but it did not increase the weight.
6.High strength and high toughness main shaft (HRC48)
7.The rotor limit adopts 2 insurance modes of circlip and stainless steel chocks

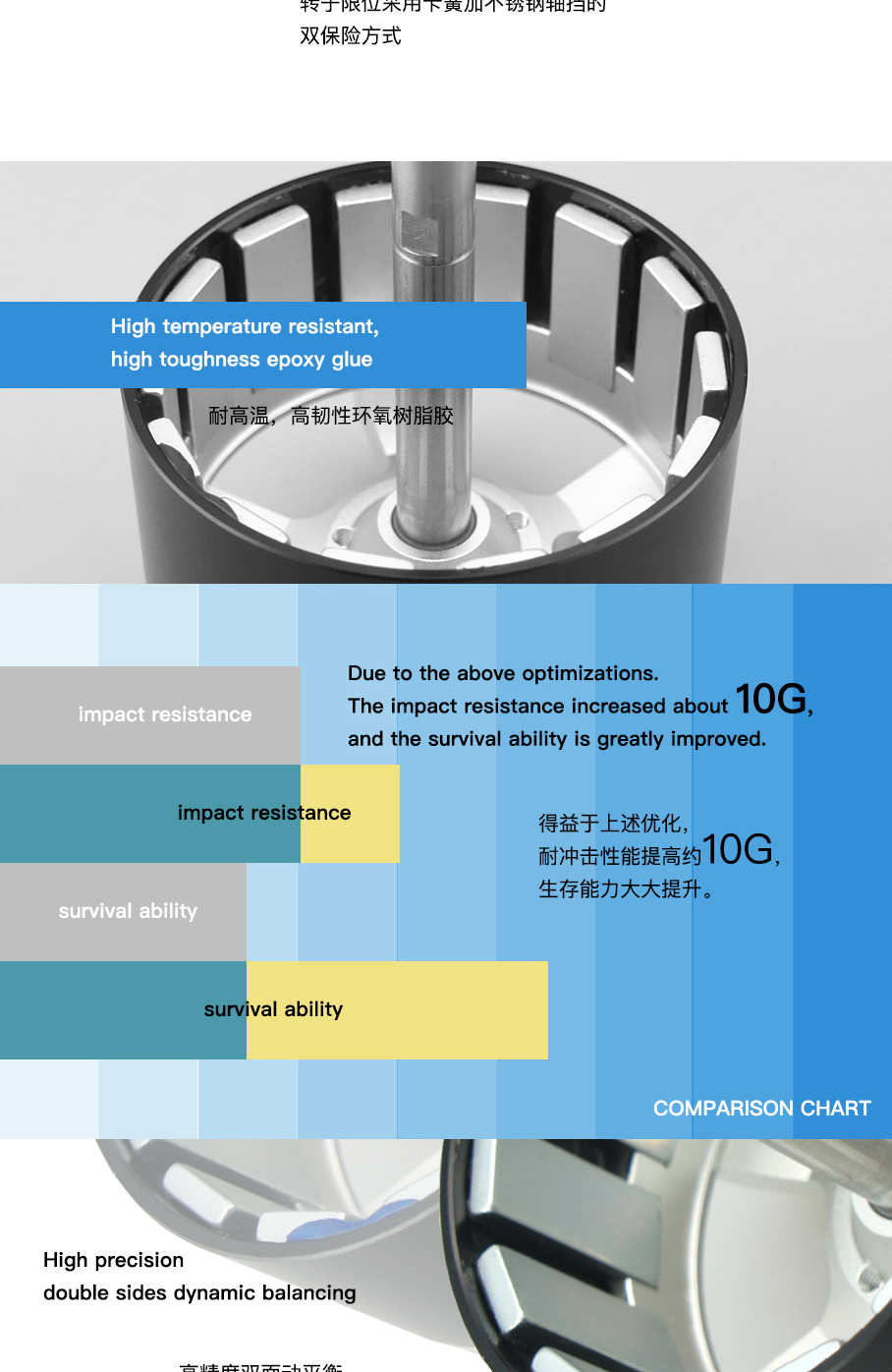

8.High temperature resistant, high toughness epoxy glue
9.Due to the above optimizations. The impact resistance increased about 10G, and the survival ability is greatly improved.
10.High precision double sides dynamic balancing
11.Adopt NMB ball bearing, durable and low noise. ECO 41 and bigger, equipped with 3 ball bearings

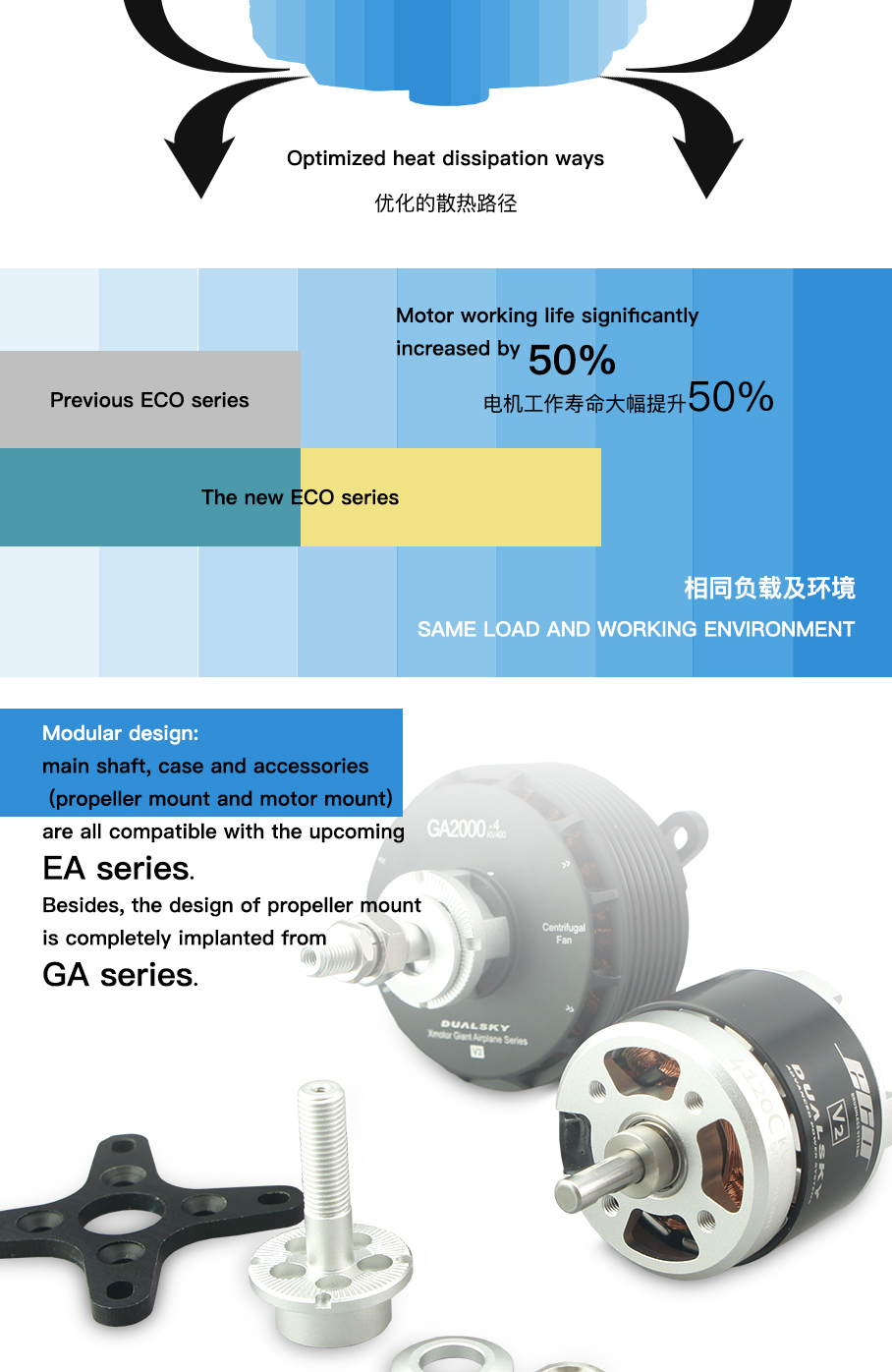

12.Optimized heat dissipation ways
13.Motor working life significantly increased by 50% (same load and working environment)

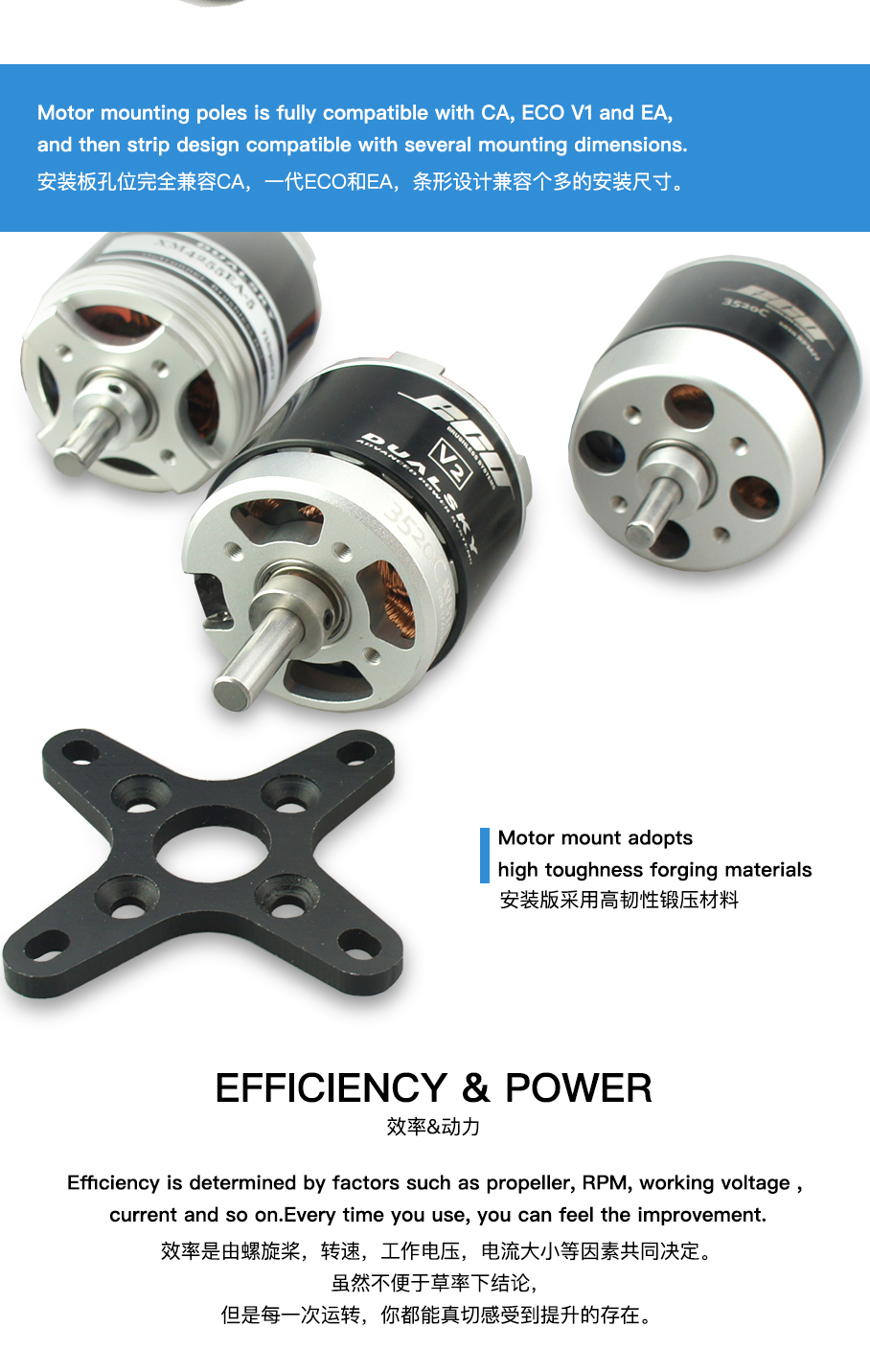

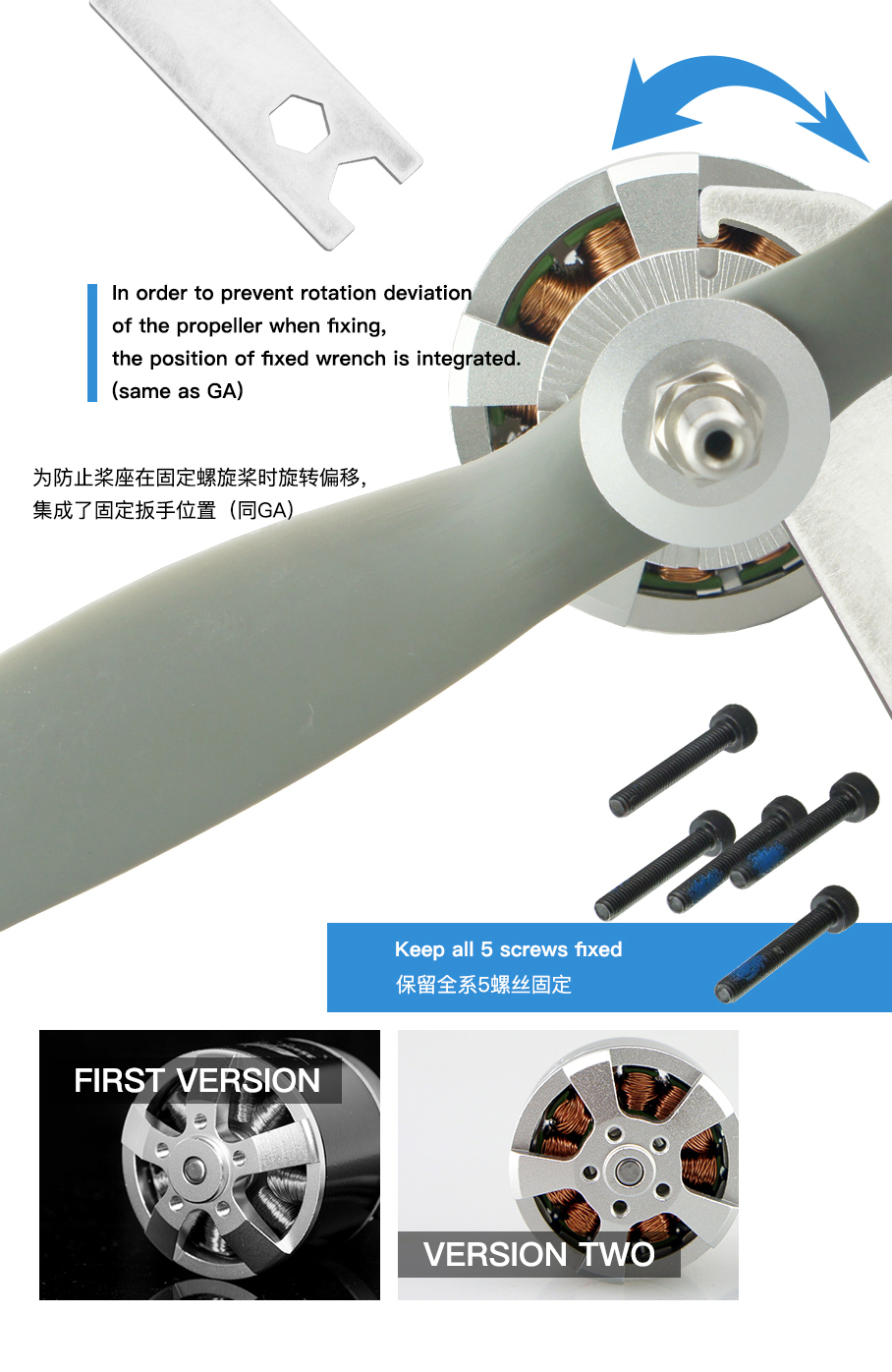

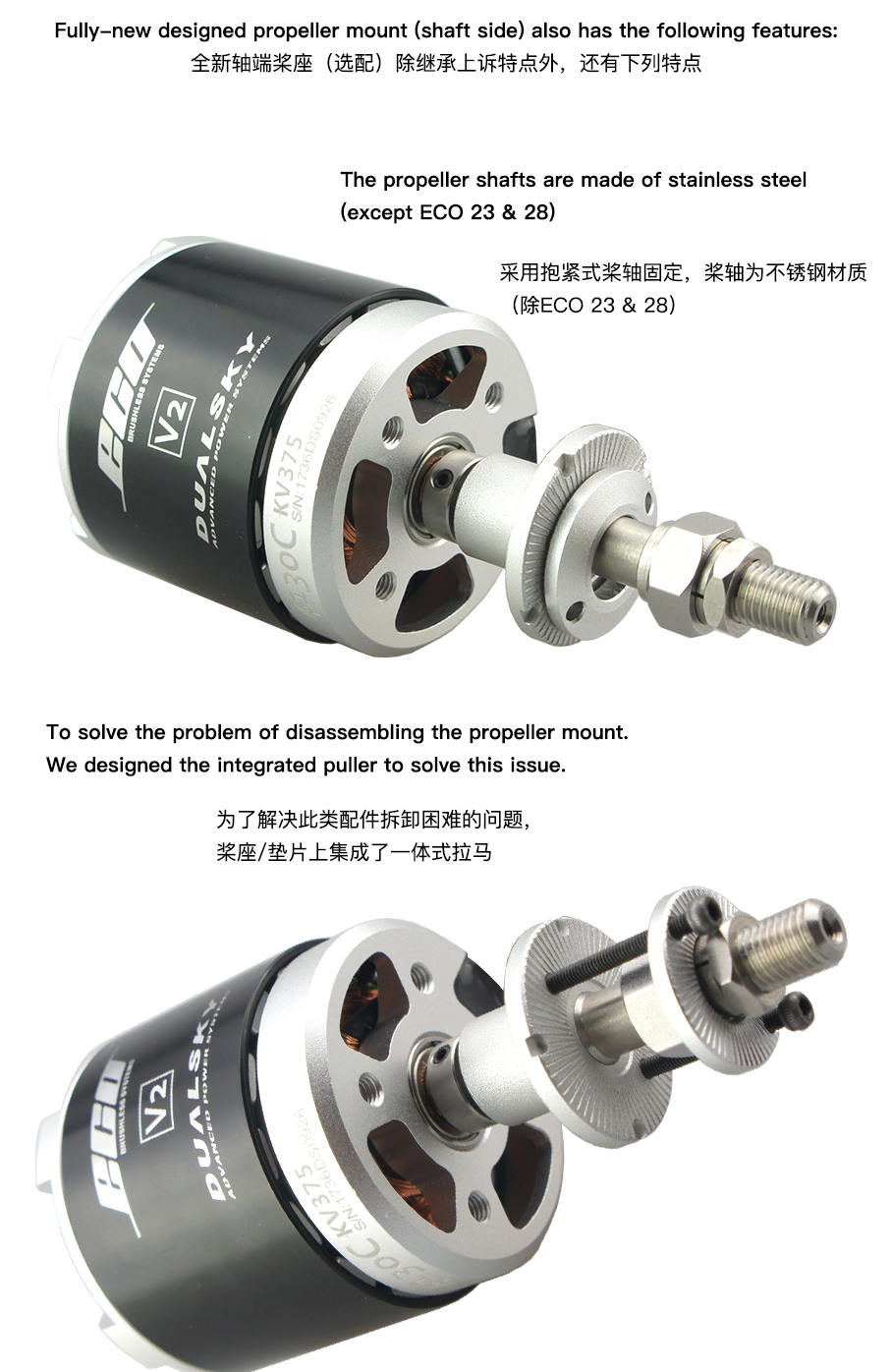

14.Modular design: main shaft, case and accessories (propeller mount and motor mount) are all compatible with the upcoming EA series. Besides, the design of propeller mount is completely implanted from GA series.
15.Up to 500V insulation level. The stator is coated with insulated-coating and completely insulated after winding.

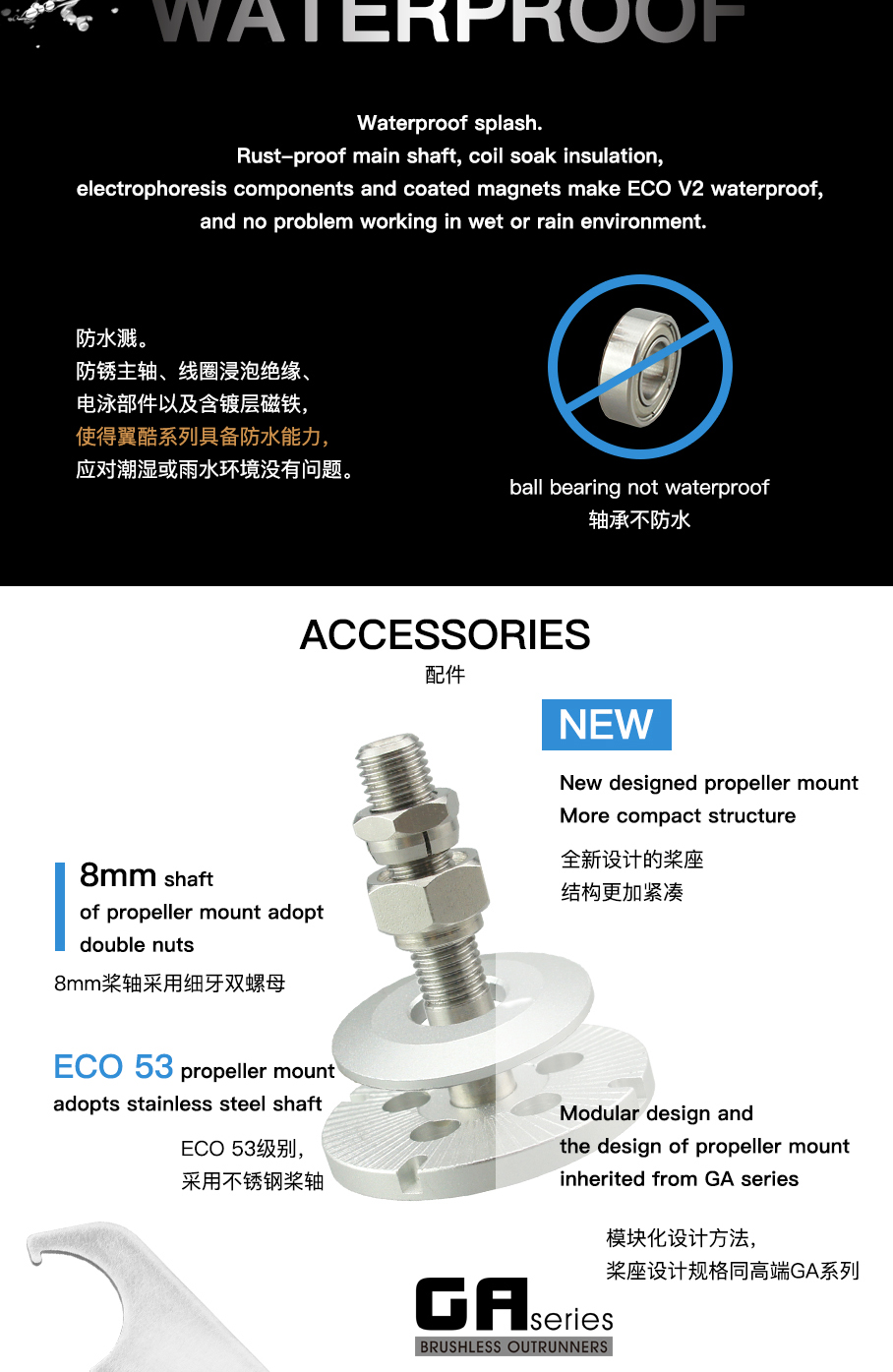

16.Waterproof splash. Rust-proof main shaft, coil soak insulation, electrophoresis components and coated magnets make ECO V2 waterproof, and no problem working in wet or rain environment.
(PS: ball bearing not waterproof)
|
ECO-C V2 series brushless outrunners |
||||
|
SKU |
Item |
KV |
Power |
Wight |
|
51635 |

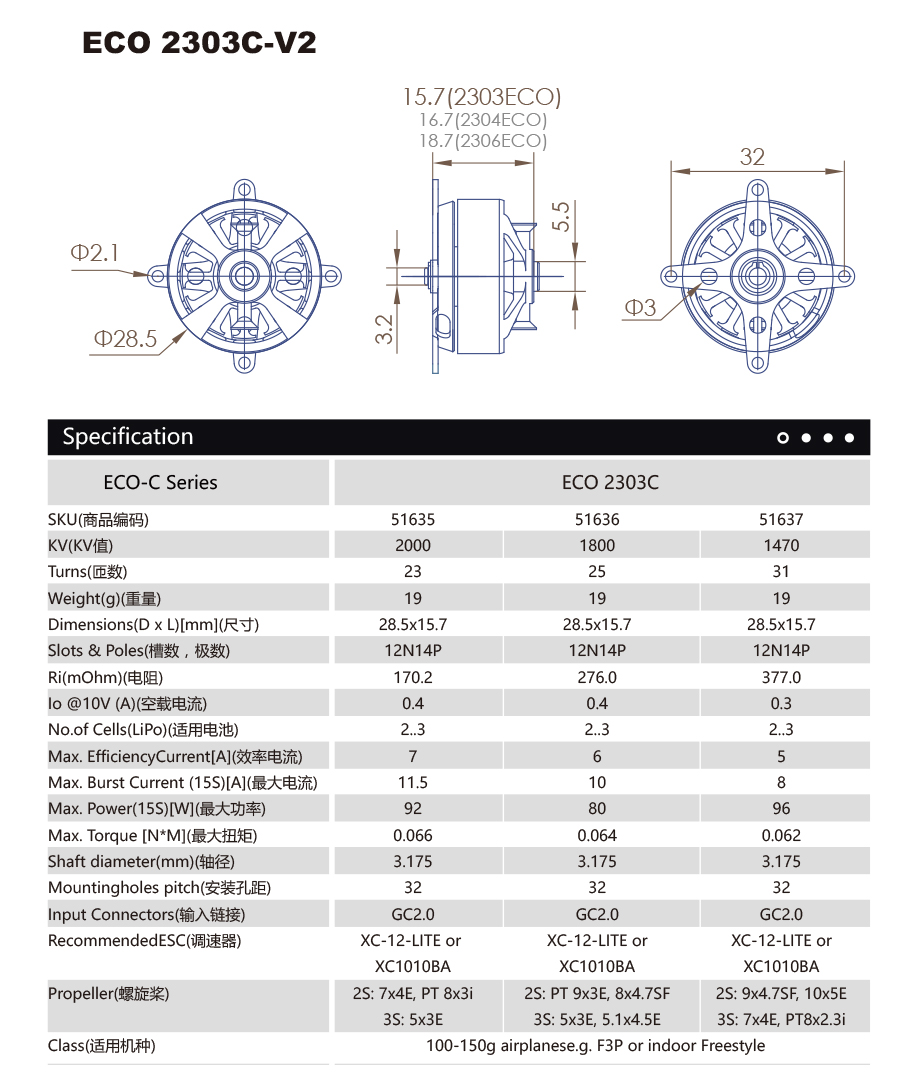

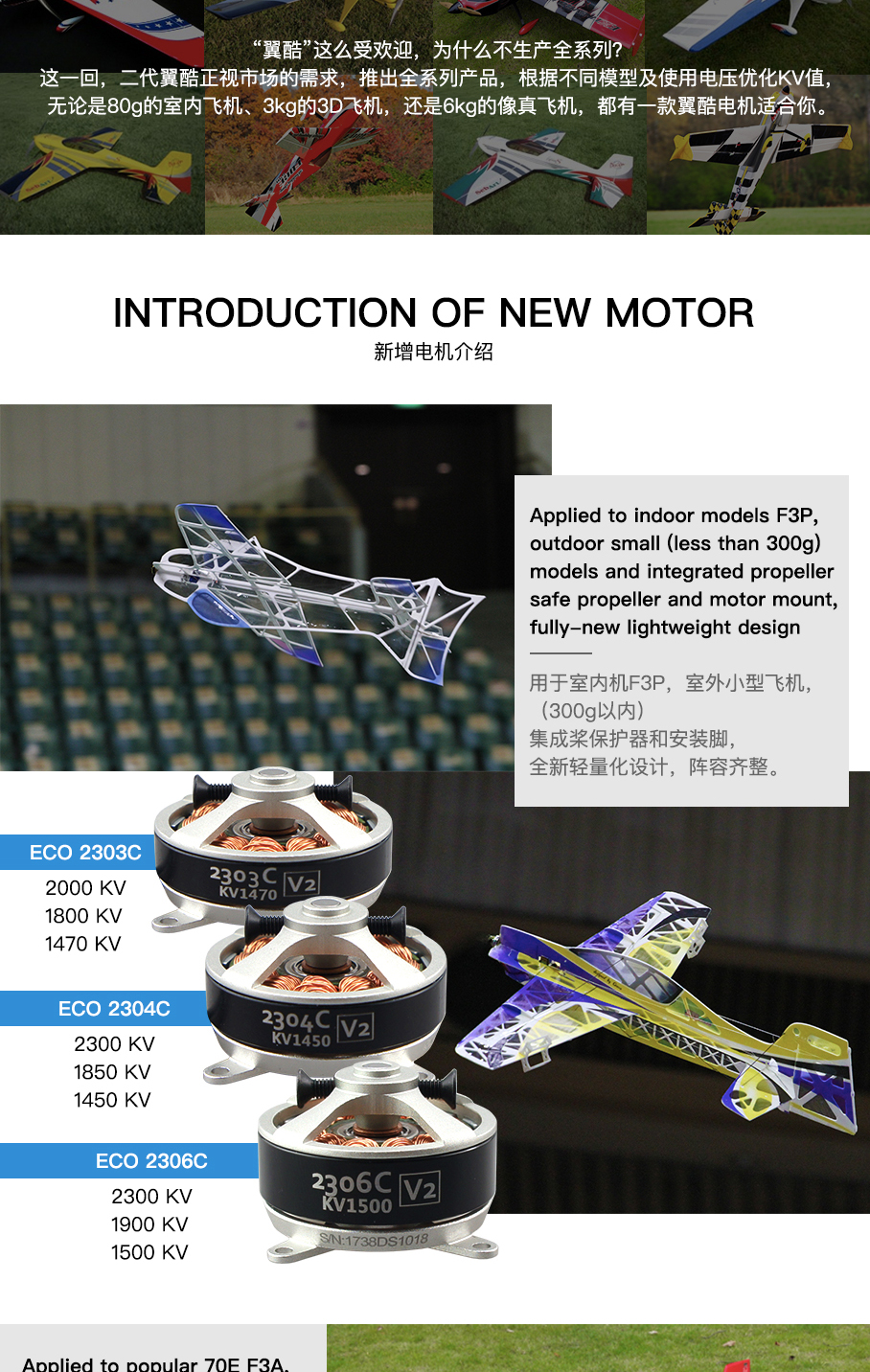

ECO 2303C |
2000RPM/V |
92W |
19 g |
|
51636 |
1800RPM/V |
80W |
||
|
51637 |
1470RPM/V |
96W |
||
|
51638 |

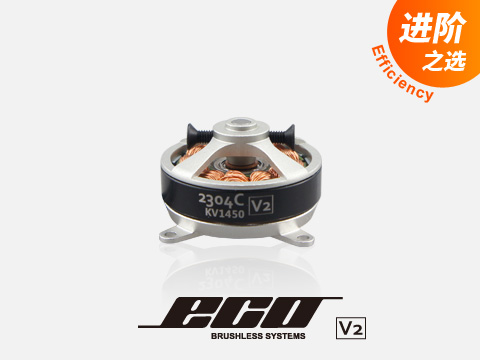

ECO 2304C |
2300RPM/V |
120W |
23 g |
|
51639 |
1850RPM/V |
96W |
||
|
51640 |
1450RPM/V |
120W |
||
|
51641 |

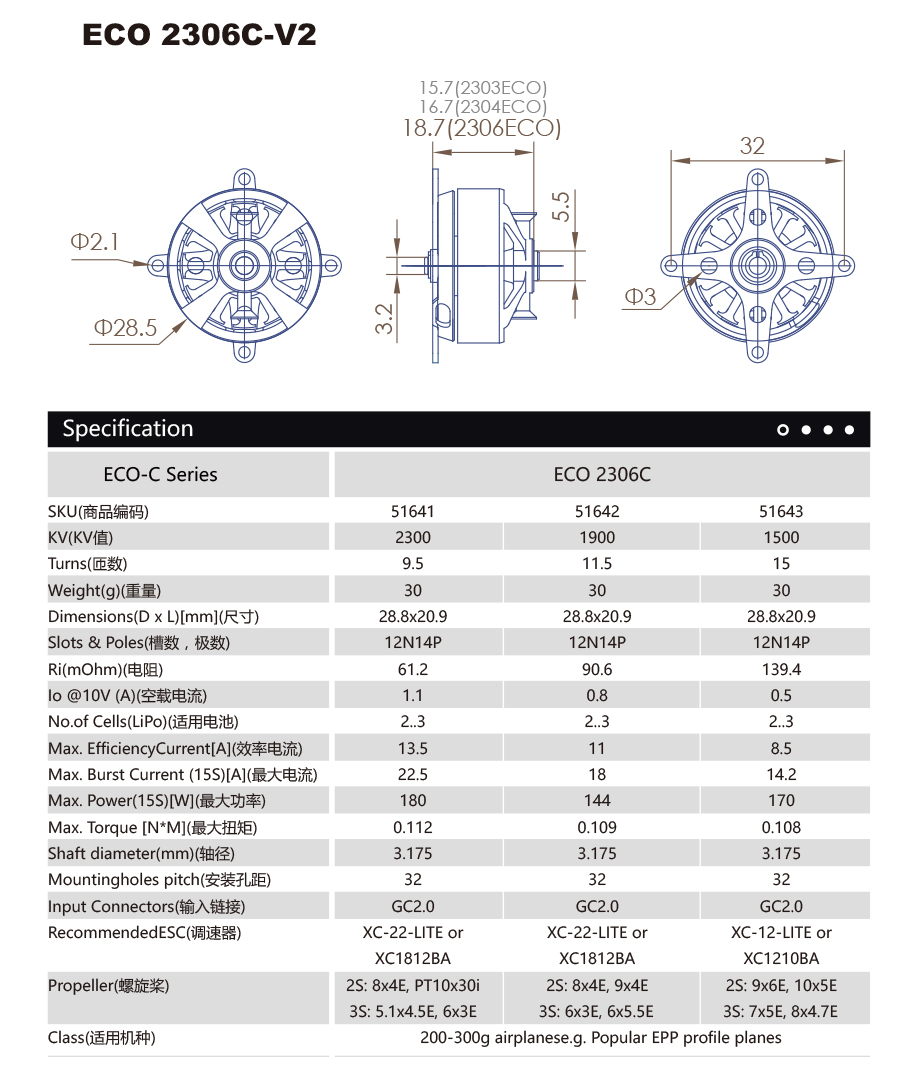

ECO 2306C |
2300RPM/V |
180W |
30 g |
|
51642 |
1900RPM/V |
144W |
||
|
51643 |
1500RPM/V |
170W |
||
|
51644 |

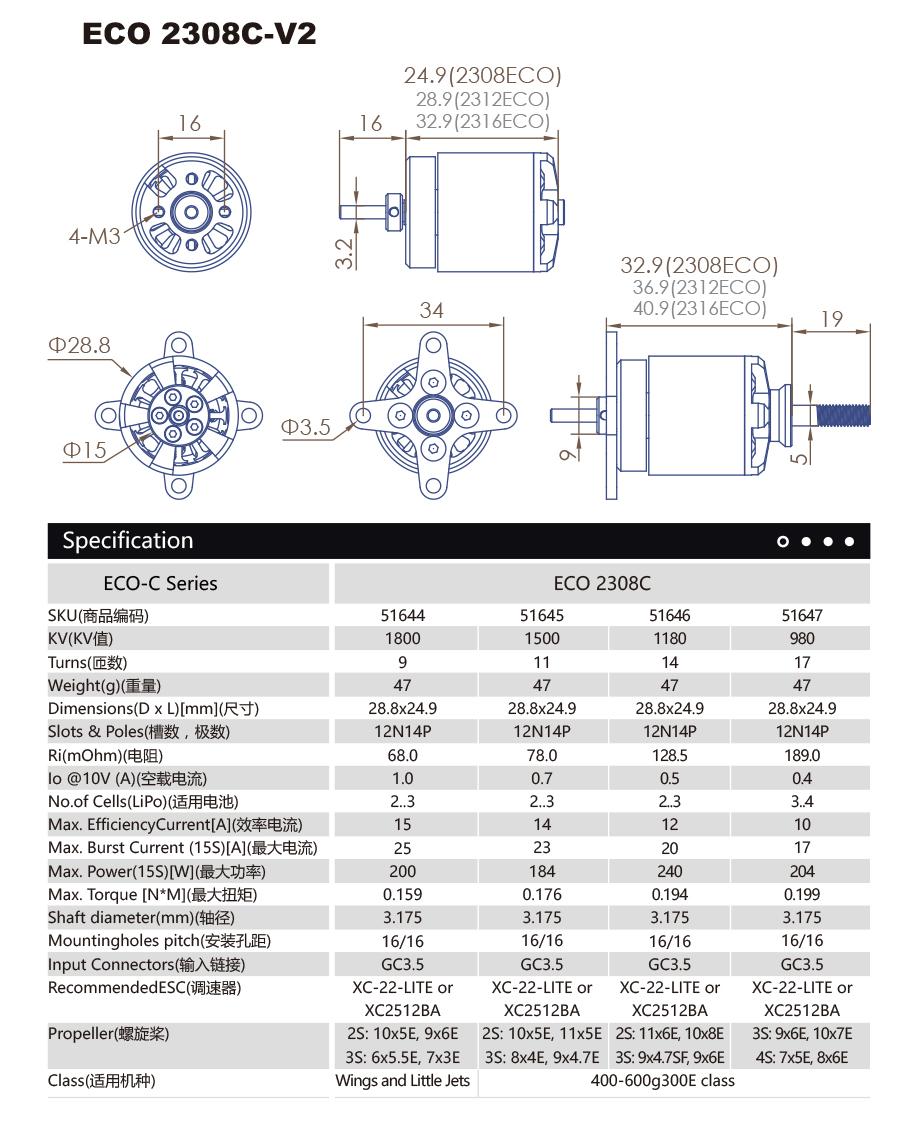

ECO 2308C |
1800RPM/V |
200W |
47 g |
|
51645 |
1500RPM/V |
184W |
||
|
51646 |
1180RPM/V |
240W |
||
|
51647 |
980RPM/V |
204W |
||
|
51648 |

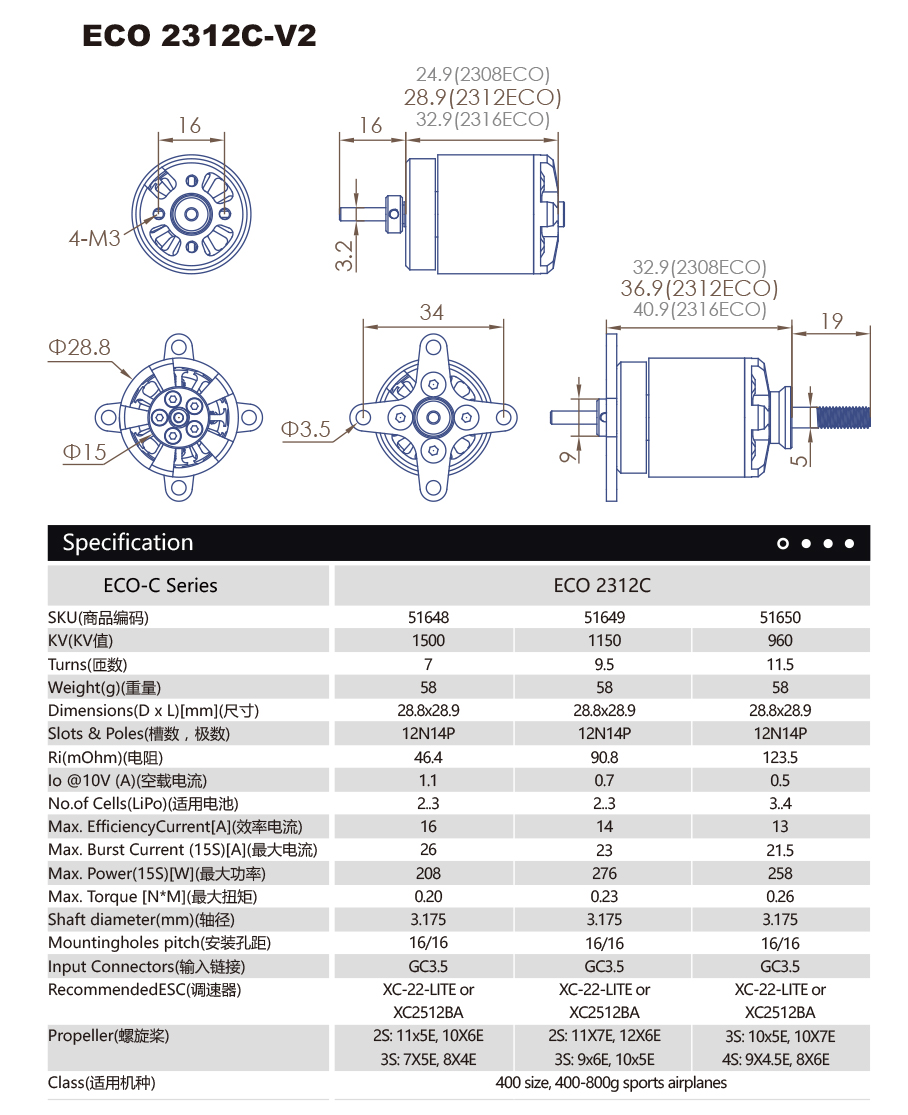

ECO 2312C |
1500RPM/V |
208W |
58 g |
|
51649 |
1150RPM/V |
276W |
||
|
51650 |
960RPM/V |
258W |
||
|
51651 |
840RPM/V |
304W |
||
|
51685 |
760RPM/V |
256W |
||
|
51652 |

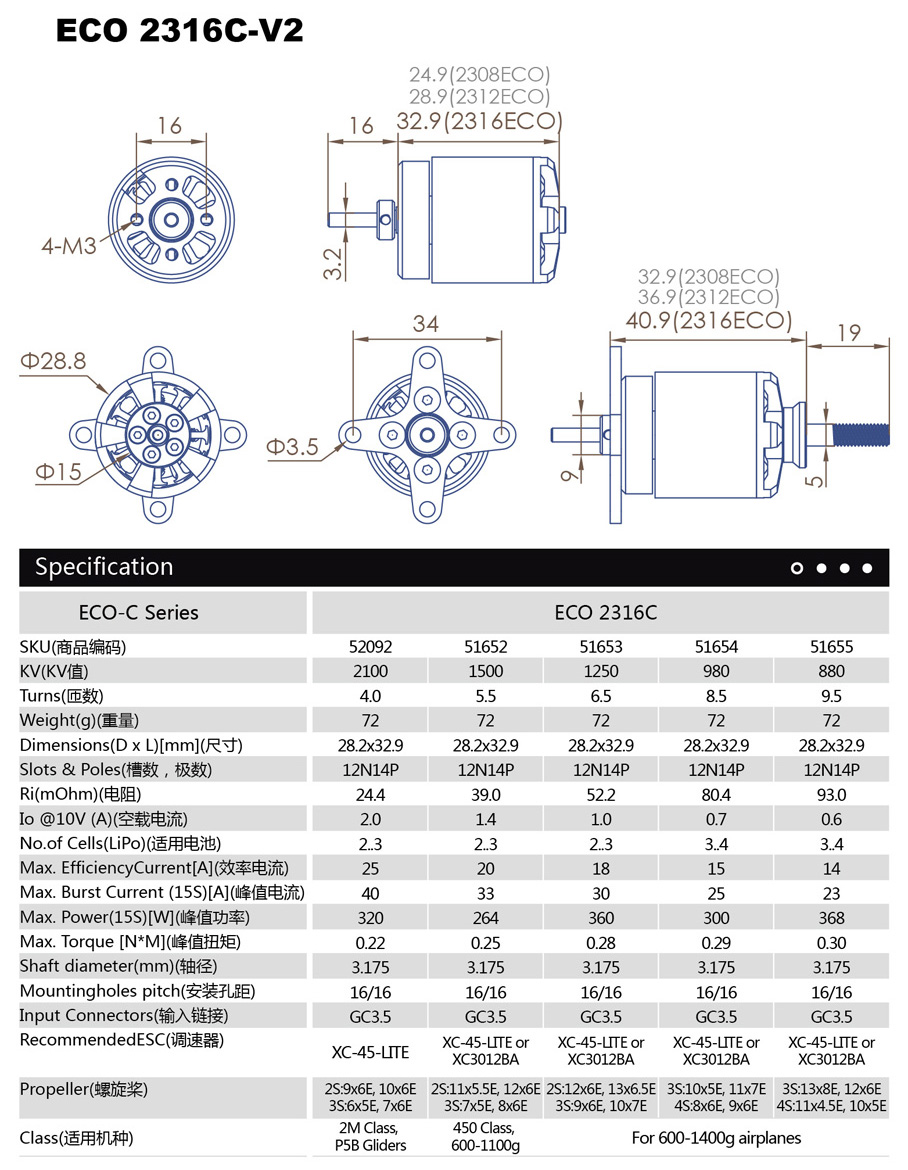

ECO 2316C |
1500RPM/V |
264W |
72 g |
|
51653 |
1250RPM/V |
360W |
||
|
51654 |
980RPM/V |
300W |
||
|
51655 |
880RPM/V |
368W |
||
|
51656 |

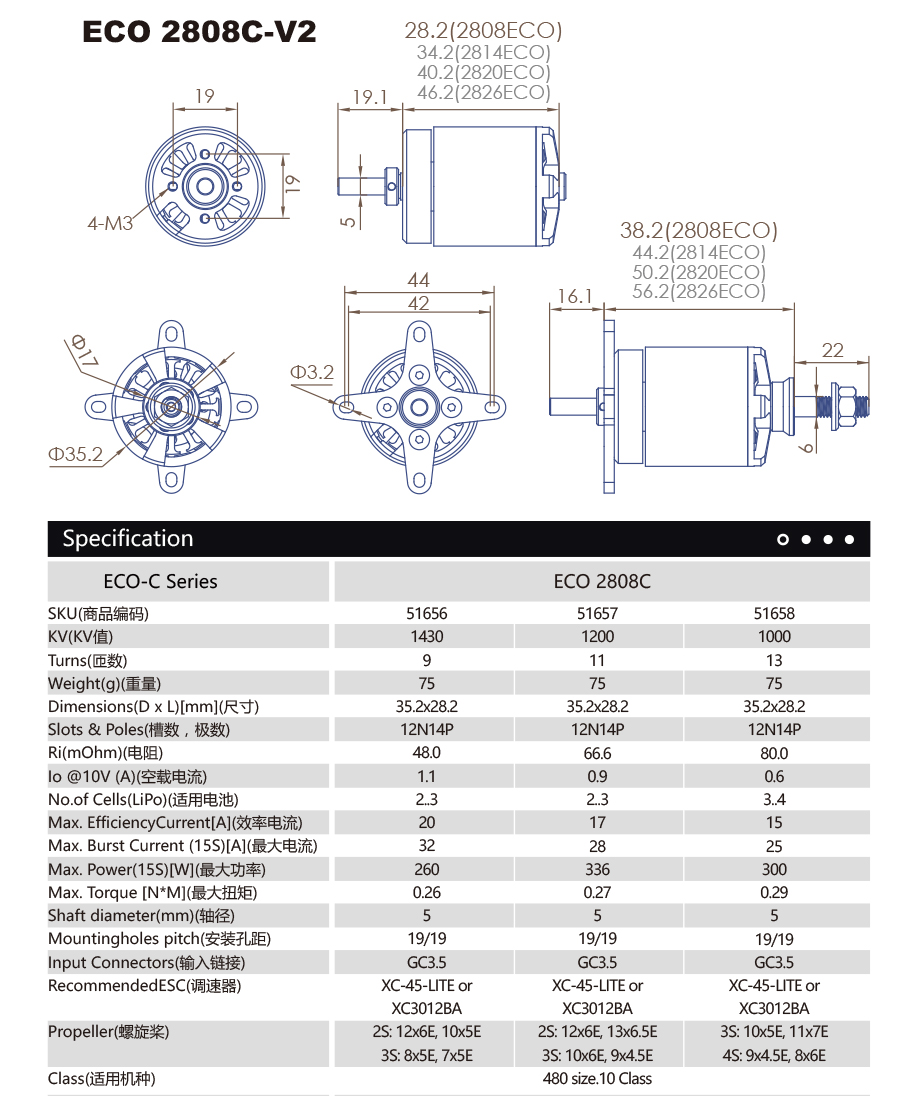

ECO 2808C |
1430RPM/V |
260W |
75 g |
|
51657 |
1200RPM/V |
336W |
||
|
51658 |
1000RPM/V |
300W |
||
|
51659 |

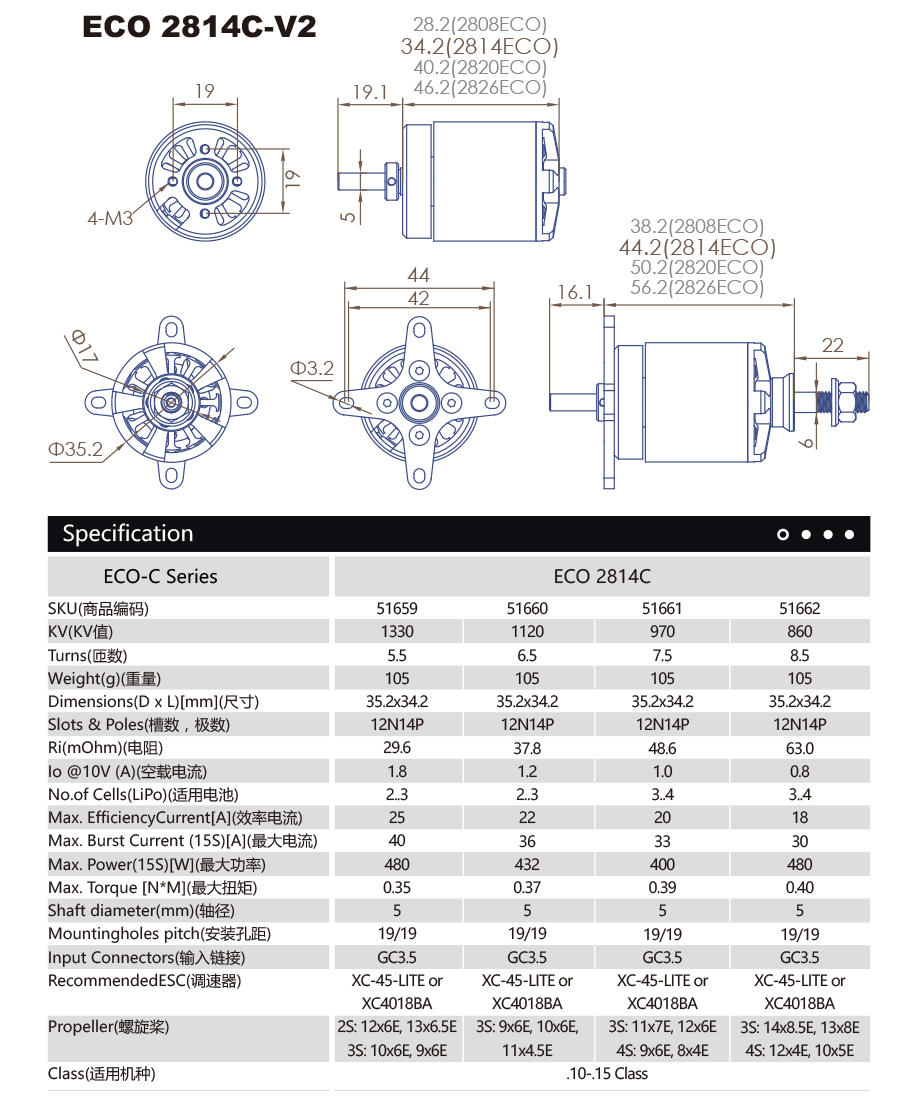

ECO 2814C |
1330RPM/V |
480W |
105 g |
|
51660 |
1120RPM/V |
432W |
||
|
51661 |
970RPM/V |
400W |
||
|
51662 |
860RPM/V |
480W |
||
|
51663 |
ECO 2820C |
1120RPM/V |
540W |
138 g |
|
51664 |
940RPM/V |
480W |
||
|
51665 |
800RPM/V |
540W |
||
|
51666 |

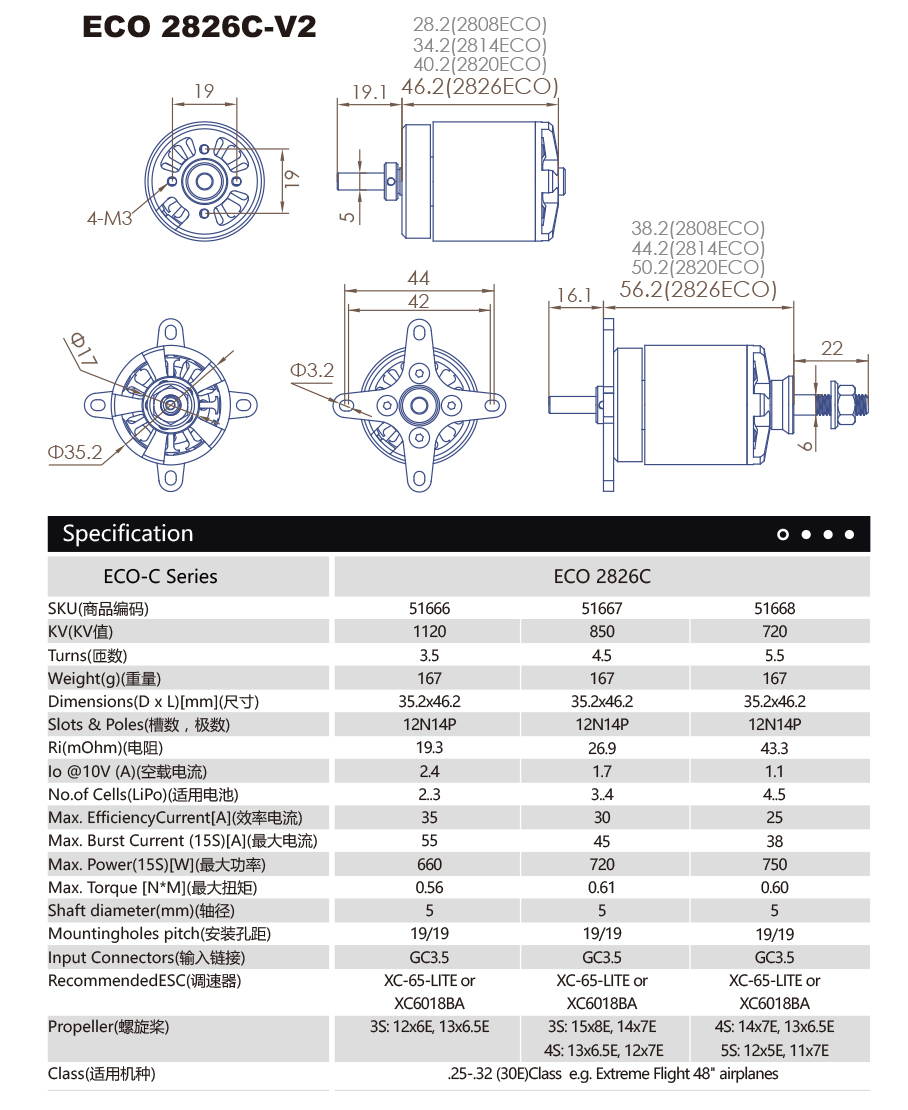

ECO 2826C |
1120RPM/V |
660W |
167 g |
|
51667 |
850RPM/V |
720W |
||
|
51668 |
720RPM/V |
750W |
||
|
51669 |

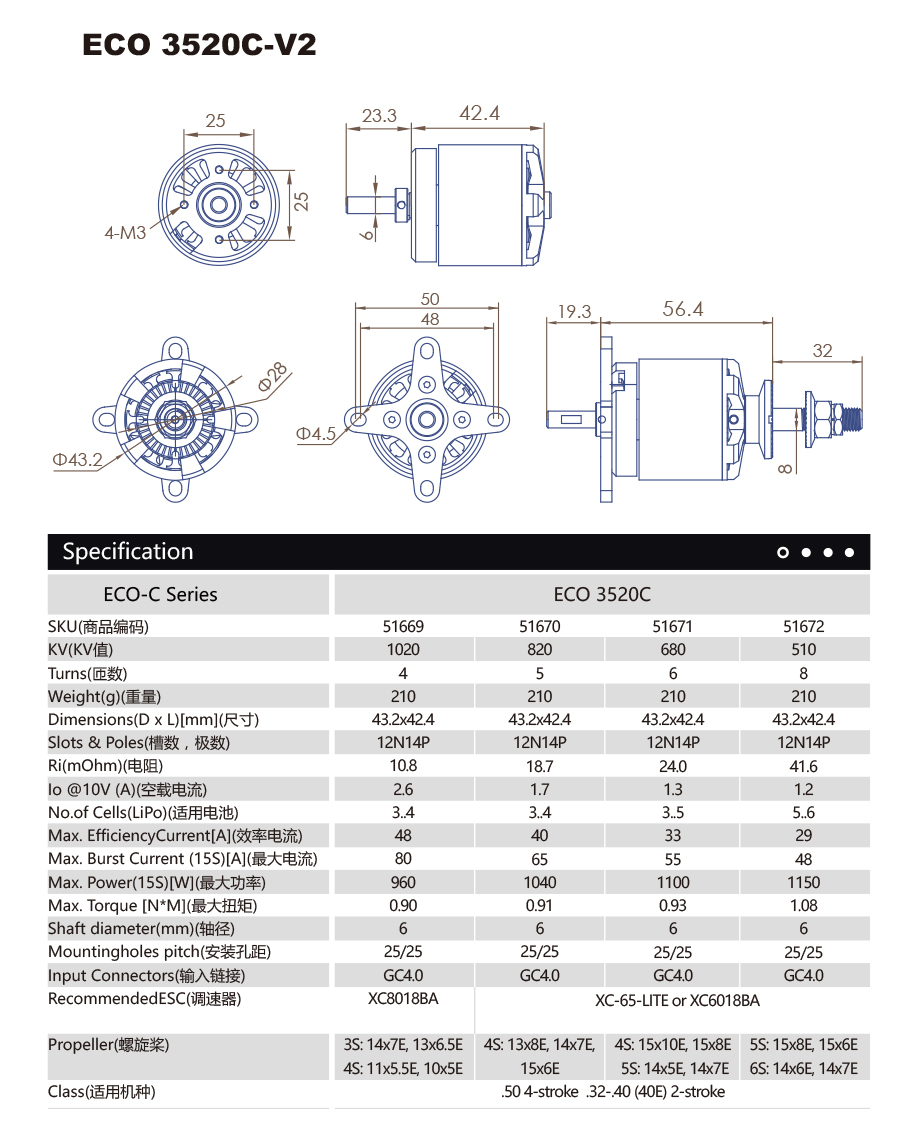

ECO 3520C |
1020RPM/V |
960W |
210 g |
|
51670 |
820RPM/V |
1040W |
||
|
51671 |
680RPM/V |
1100W |
||
|
51672 |
510RPM/V |
1150W |
||
|
51673 |
ECO 4120C |
560RPM/V |
1400W |
290 g |
|
51674 |
500RPM/V |
1440W |
||
|
51675 |
430RPM/V |
1320W |
||
|
51676 |
350RPM/V |
1500W |
||
|
51677 |

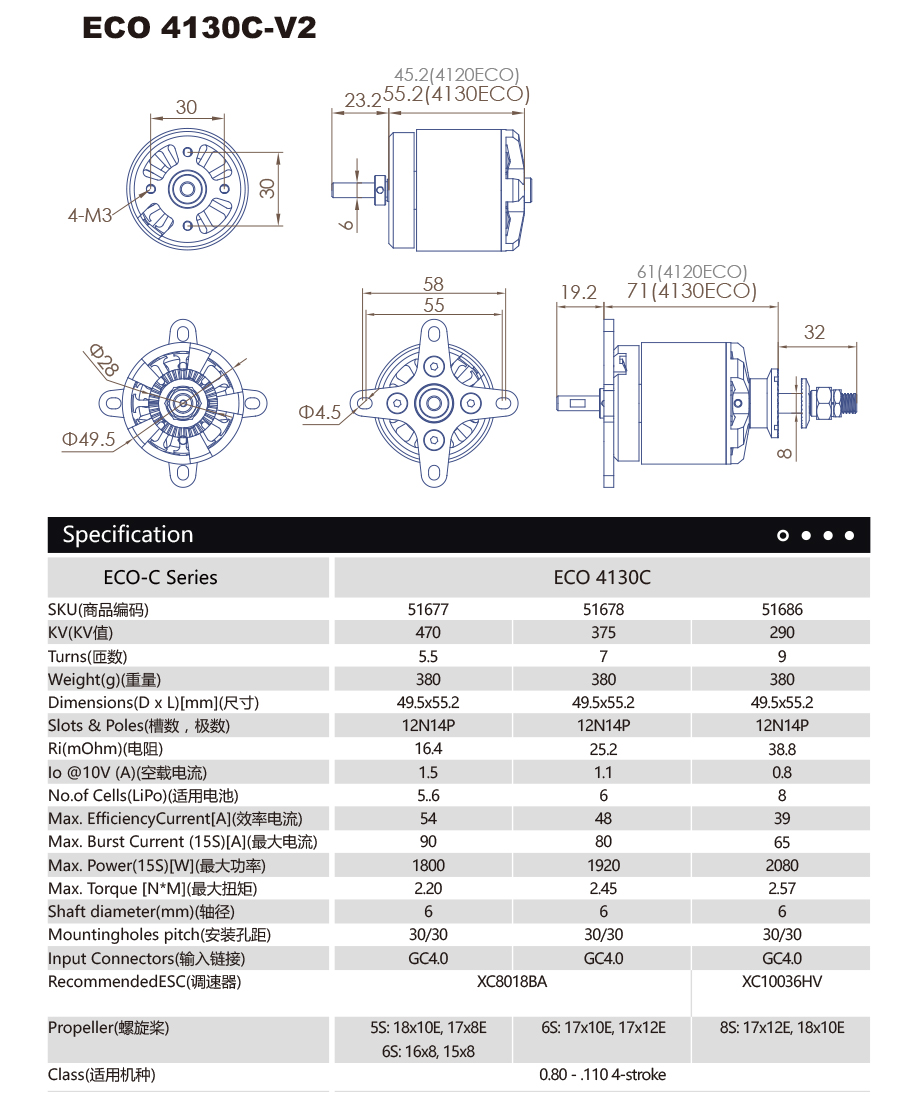

ECO 4130C |
470RPM/V |
1800W |
380 g |
|
51678 |
375RPM/V |
1920W |
||
|
51686 |
290RPM/V |
2080W |
||
|
51679 |
ECO 5322C |
430RPM/V |
2400W |
470 g |
|
51680 |
380RPM/V |
2160W |
||
|
51681 |
300RPM/V |
2560W |
||
|
51682 |

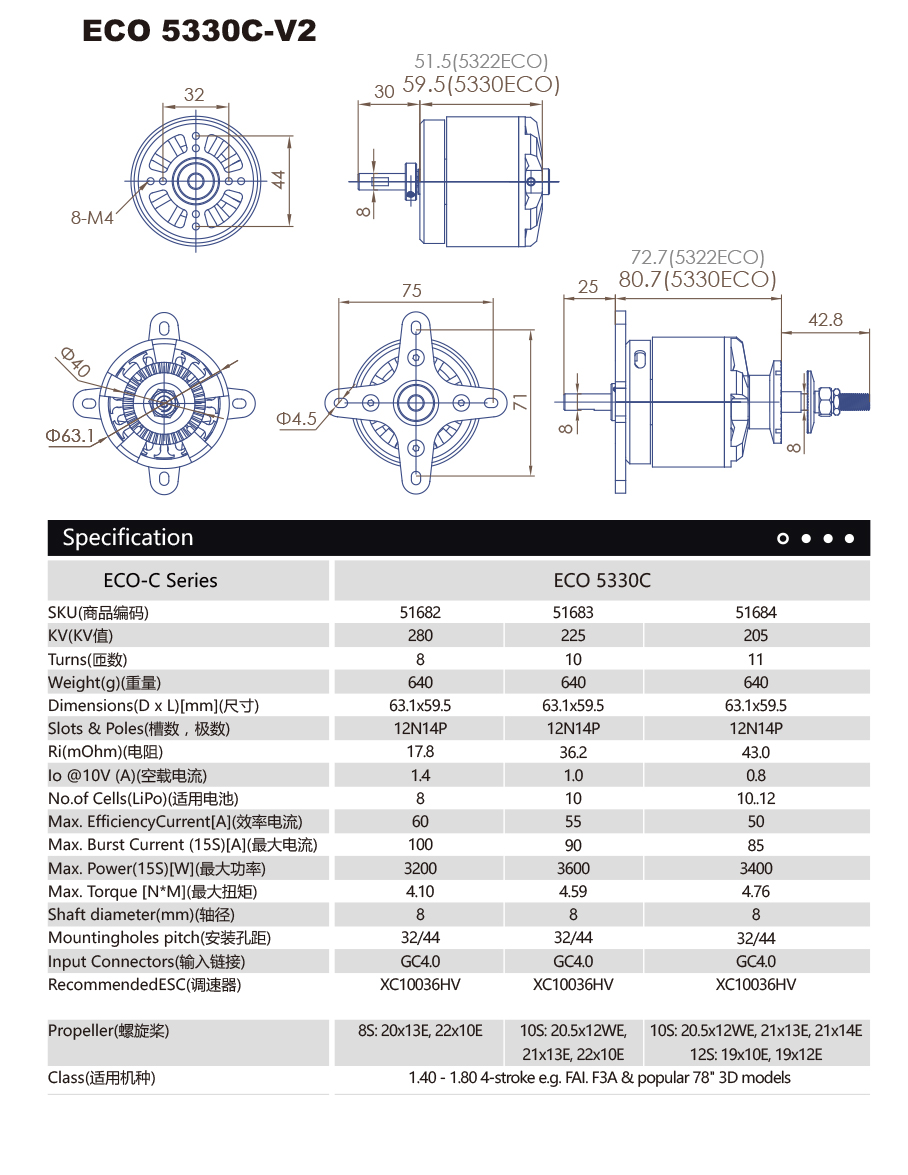

ECO 5330C |
280RPM/V |
3200W |
640 g |
|
51683 |
225RPM/V |
3600W |
||
|
51684 |
205RPM/V |
3400W |
||
